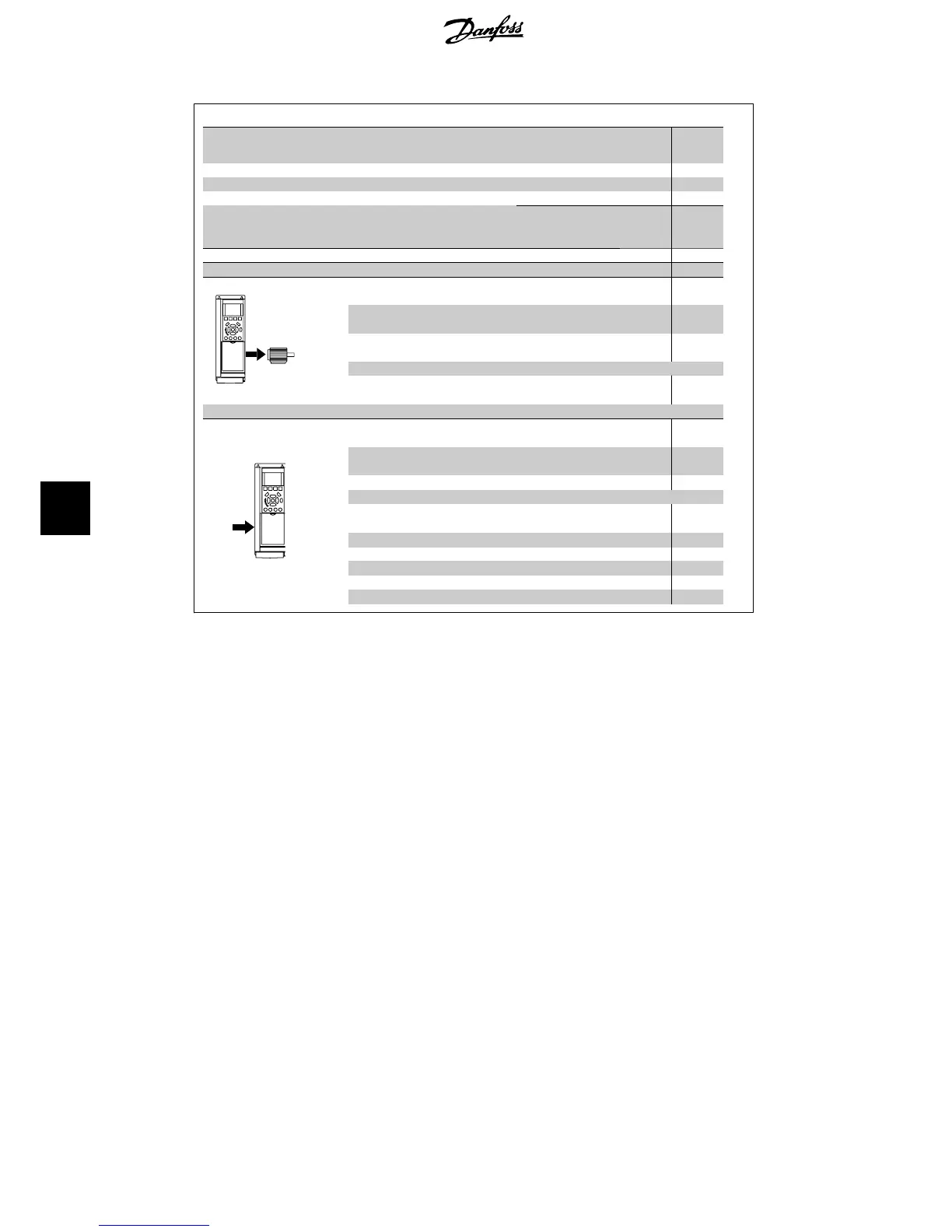

Danfoss VLT HVAC User Manual

Normal overload 110% for 1 minute
IP 20
IP 21 B1 B1 B1 B2
IP 55 B1 B1 B1 B2
IP 66 B1 B1 B1 B2
Mains supply 200 - 240 VAC
Frequency converter
Typical Shaft Output [kW]
P5K5
5.5
P7K5
7.5
P11K
11
P15K
15
Typical Shaft Output [HP] at 208 V 7.5 10 15 20
Output current
Continuous
(3 x 200-240 V ) [A]
24.2 30.8 46.2 59.4
Intermittent
(3 x 200-240 V ) [A]
26.6 33.9 50.8 65.3
Continuous
kVA (208 V AC) [kVA]
8.7 11.1 16.6
21.4
Max. cable size:
(mains, motor, brake)
[mm
2
/AWG]
10/7 35/2
Max. input current
Continuous
(3 x 200-240 V ) [A]
22.0 28.0 42.0 54.0
Intermittent
(3 x 200-240 V ) [A]
24.2 30.8 46.2 59.4
Max. pre-fuses
1)
[A]
63 63 63
80
Environment
Estimated power loss
at rated max. load [W]
4)
269 310 447 602
Weight enclosure IP20 [kg]
Weight enclosure IP21 [kg] 23 23 23 27
Weight enclosure IP55 [kg] 23 23 23 27
Weight enclosure IP 66 [kg] 23 23 23 27
Efficiency
4)
0.96 0.96 0.96 0.96
8. Specifications VLT
®
HVAC Drive Operating Instructions
130 MG.11.A4.02 - 09.10.06. VLT
®
is a registered Danfoss trademark
8

Danfoss VLT HVAC Specifications

General

Enclosure Rating	IP20, IP21, IP54, IP55, IP66
Storage Temperature Range	-25°C to +70°C
Output Voltage Range	0-100% of supply voltage
Communication Protocols	Modbus RTU, BACnet, Ethernet/IP, Profibus DP
Ambient Temperature Range	-10°C to +50°C (without derating)
Relative Humidity	5% to 95% non-condensing
Altitude	Up to 1000 m without derating
Cooling Method	Air cooled
Application	HVAC systems, Pumps, Fans, Compressors
Voltage Range	200-240 V, 380-500 V, 525-600 V
Frequency Range	0 Hz to 590 Hz
