4.1.7. Mains connection for B1 and B2.

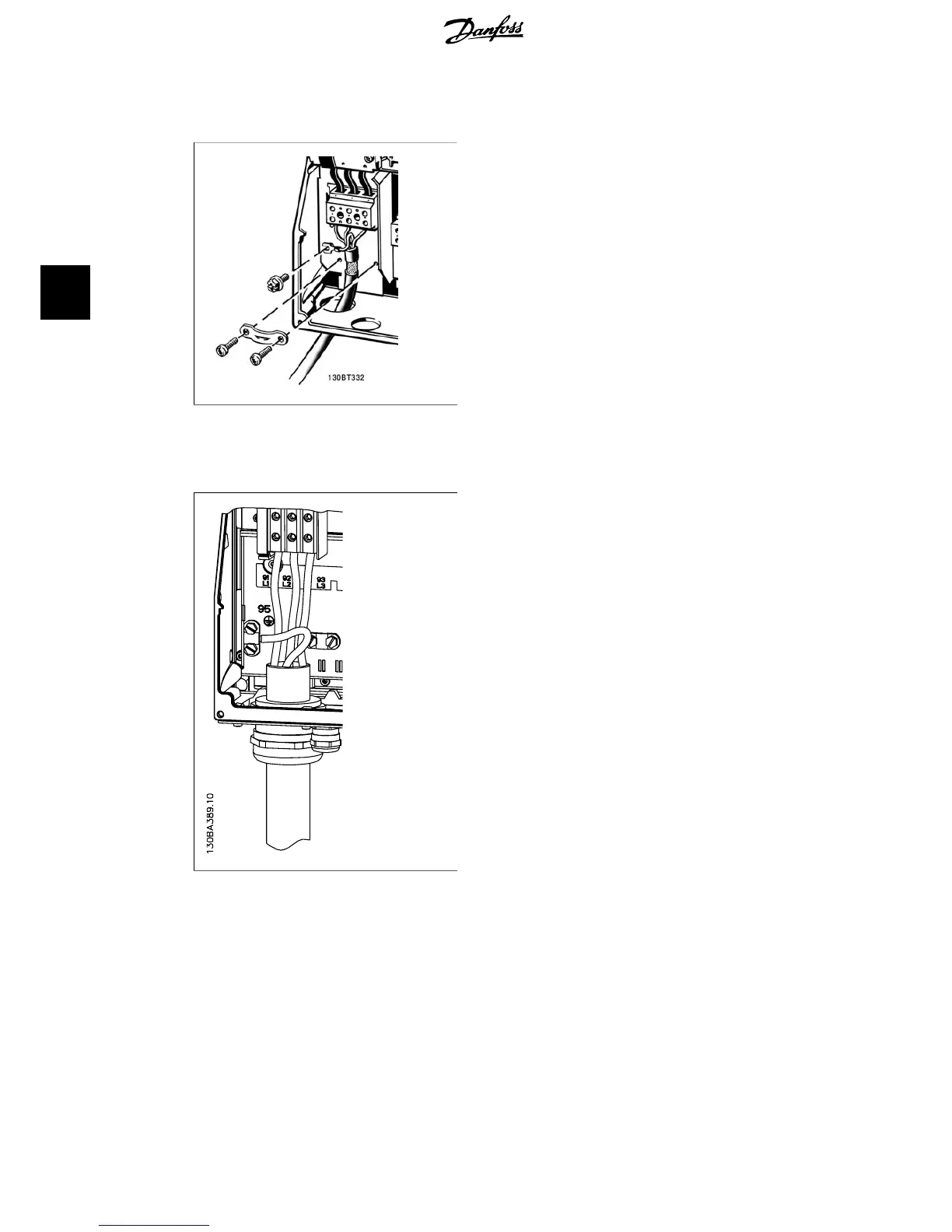

Illustration 4.8: How to connect to mains and
earthing.
4.1.8. Mains connection for C1 and C2.
Illustration 4.9: How to connect to mains and
earthing.
4.1.9. How to connect motor - foreword
See section
General Specifications
for correct dimensioning of motor cable cross-section and
length.
Use a screened/armoured motor cable to comply with EMC emission specifications (or
install the cable in metal conduit).
Keep the motor cable as short as possible to reduce the noise level and leakage currents.
4. Electrical installation VLT
®
HVAC Drive Operating Instructions
28
MG.11.A4.02 - 09.10.06. VLT
®
is a registered Danfoss trademark
