NB!
An active HAND-OFF-AUTO signal via the digital inputs has higher priority than the
control keys [Hand on] – [Auto on].
[Reset]
is used for resetting the frequency converter after an alarm (trip). It can be selected as
Enable
[1] or
Disable
[0] via par. 0-43
Reset Keys on LCP
.
The parameter shortcut can be carried out by holding down the [Main Menu] key for 3 seconds.
The parameter shortcut allows direct access to any parameter.
5.1.3. How to operate numeric LCP (NLCP)
The following instructions are valid for the
NLCP (LCP 101).
The control panel is divided into four function-
al groups:
1. Numeric display.
2. Menu key and indicator lights (LEDs)
- changing parameters and switching
between display functions.
3. Navigation keys and indicator lights
(LEDs).
4. Operation keys and indicator lights
(LEDs).
NB!
Parameter copy is not possible
with Numeric Local Control Pan-
el (LCP101).
Select one of the following modes:
Status Mode: Displays the status of the fre-
quency converter or the motor.
If an alarm occurs, the NLCP automatically
switches to status mode.
A number of alarms can be displayed.
Quick Setup or Main Menu Mode: Display
parameters and parameter settings.

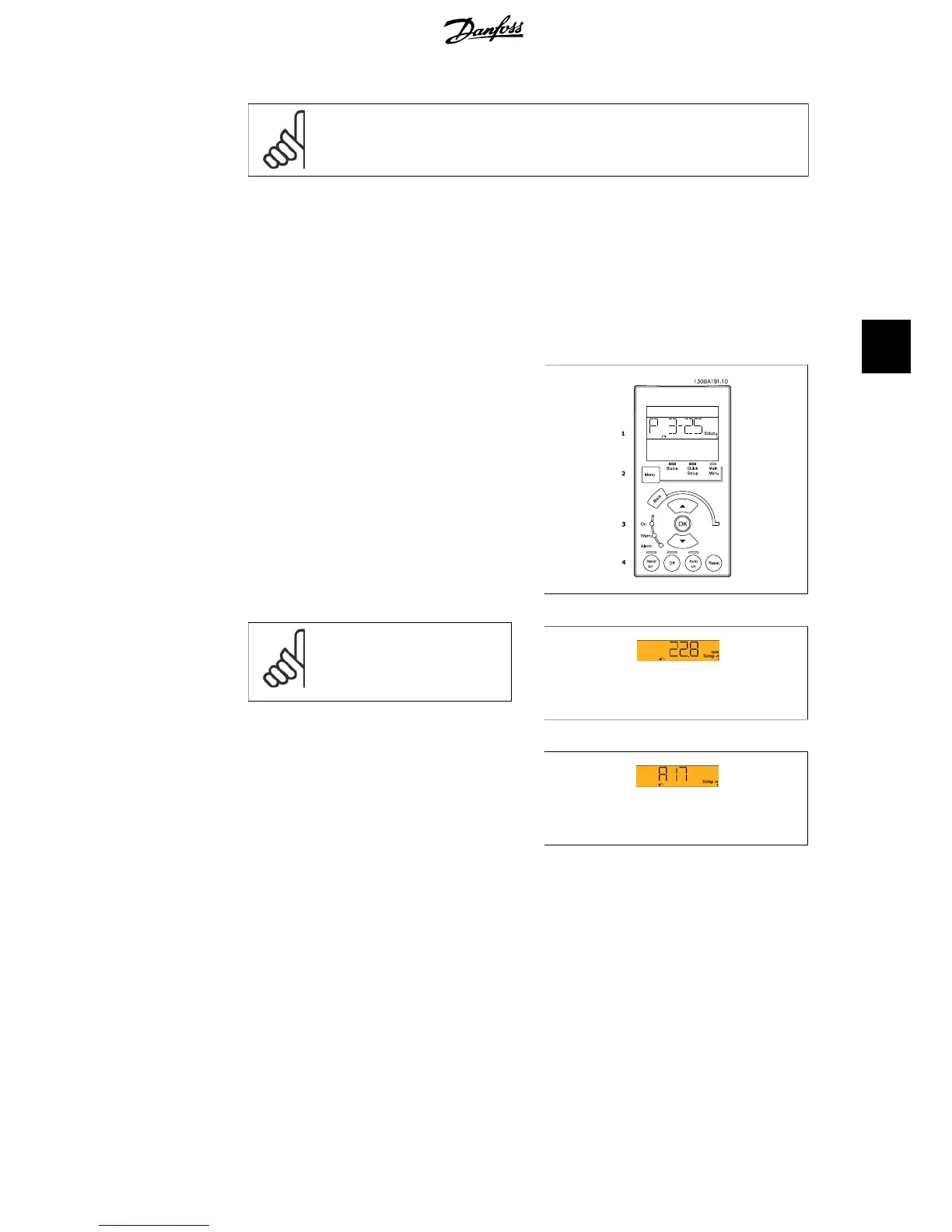

Illustration 5.1: Numerical LCP (NLCP)
130BP077.10
Illustration 5.2: Status display example
130BP078.10
Illustration 5.3: Alarm display example
Indicator lights (LEDs):
• Green LED/On: Indicates if control
section is on.
• Yellow LED/Wrn.: Indicates a warn-
ing.
• Flashing red LED/Alarm: Indicates
an alarm.
Menu key
[Menu] Select one of the following modes:
• Status
•Quick Setup
• Main Menu
Main Menu is used for programming all parameters.
VLT
®
HVAC Drive Operating Instructions 5. How to operate the frequency converter
MG.11.A4.02 - 09.10.06. VLT
®
is a registered Danfoss trademark
47
5
