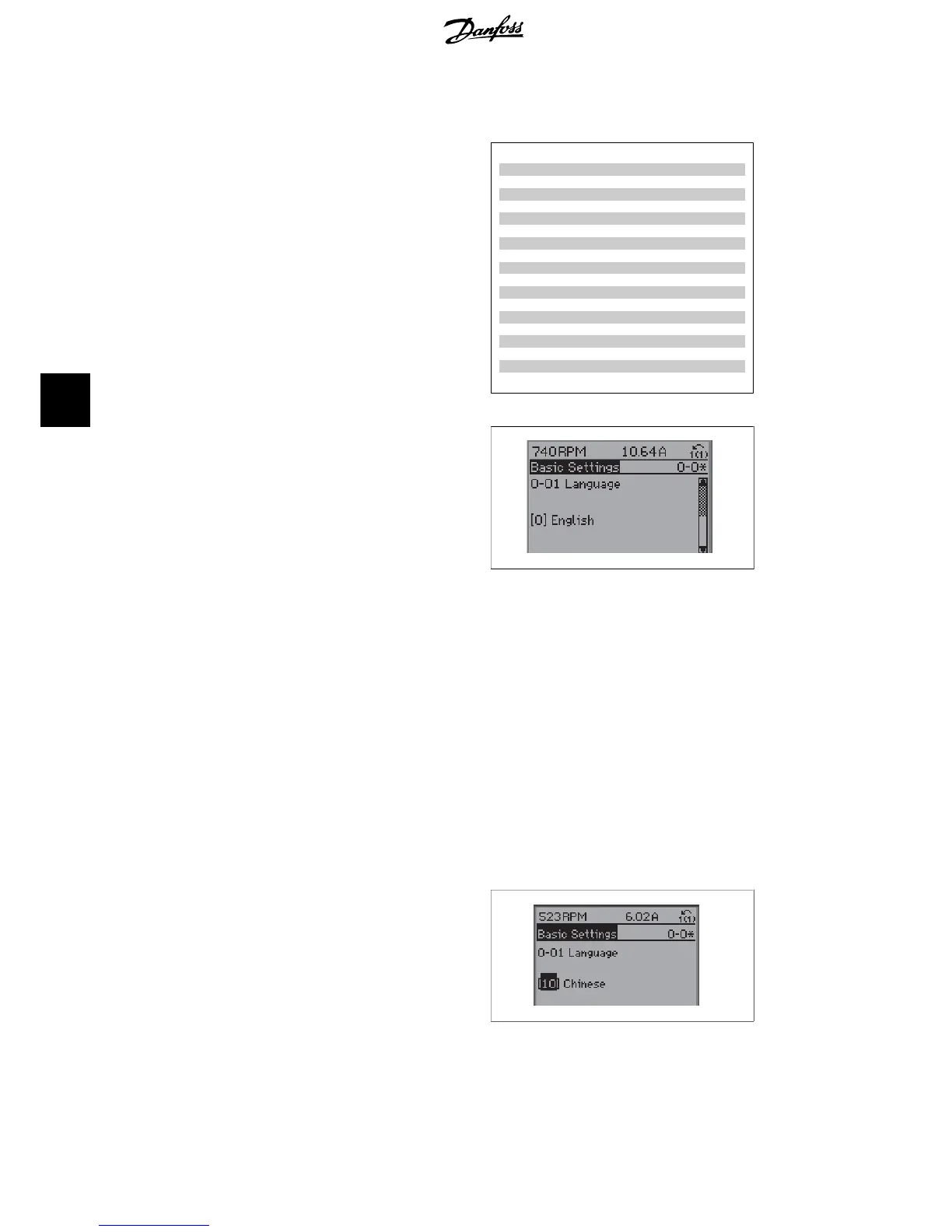

6.1.5. Parameter Selection
In the Main Menu mode, the parameters are
divided into groups. Select a parameter group
by means of the navigation keys.
The following parameter groups are accessi-
ble:
Group no. Parameter group:
0 Operation/Display
1Load/Motor
2 Brakes
3 References/Ramps
4 Limits/Warnings
5 Digital In/Out
6 Analog In/Out
8 Comm. and Options
13 Smart Logic
14 Special Functions
15 Drive Information
16 Data Readouts
18 Data Readouts 2
20 Drive Closed Loop
21 Ext. Closed Loop
22 Application Functions
23 Time-based Functions
25 Cascade Controller
Table 6.3: Parameter groups.
After selecting a parameter group, choose a
parameter by means of the navigation keys.
The middle section on the GLCP display shows
the parameter number and name as well as
the selected parameter value.
1
30BP067.10
Illustration 6.10: Display example.
6.1.6. Changing Data
1. Press [Quick Menu] or [Main Menu] key.
2. Use [ ] and [ ] keys keys to find parameter group to edit.▲▼
3. Use [ ] and [ ] keys to find parameter to edit.▲▼
4. Press [OK] key.
5. Use [ [ ] and [ ] keys to select correct parameter setting. Or, to move to digits within▲▼
a number, use keys. Cursor indicates digit selected to change. [ ] key increases the
value, [ ] key decreases the value.
6. Press [Cancel] key to disregard change, or press [OK] key to accept change and enter
new setting.
6.1.7. Changing a Text Value
If the selected parameter is a text value,
change the text value by means of the up/
down navigation keys.
The up key increases the value, and the down
key decreases the value. Place the cursor on
the value to be saved and press [OK].
13
0
BP0
6
8.10
Illustration 6.11: Display example.
6. How to programme the frequency converter VLT
®
HVAC Drive Operating Instructions
84
MG.11.A4.02 - 09.10.06. VLT
®
is a registered Danfoss trademark
6
