The parameters can be accessed immediately unless a password has been created via par. 0-60,
0-61, 0-65 or 0-66.
Quick Setup is used to set up the frequency converter using only the most essential parameters.
The parameter values can be changed using the up/down arrows when the value is flashing.
Select Main Menu by pressing the [Menu] key a number of times until the Main Menu LED is lit.
Select the parameter group [xx-__] and press [OK]
Select the parameter [__-xx] and press [OK]
If the parameter is an array parameter select the array number and press [OK]
Select the wanted data value and press [OK]
Navigation Keys [Back] for stepping backwards
Arrow [] []▲▼ keys are used for manoeuvring between parameter groups, parameters and
within parameters.
[OK] is used for choosing a parameter marked by the cursor and for enabling the change of a
parameter.
130BP079.10

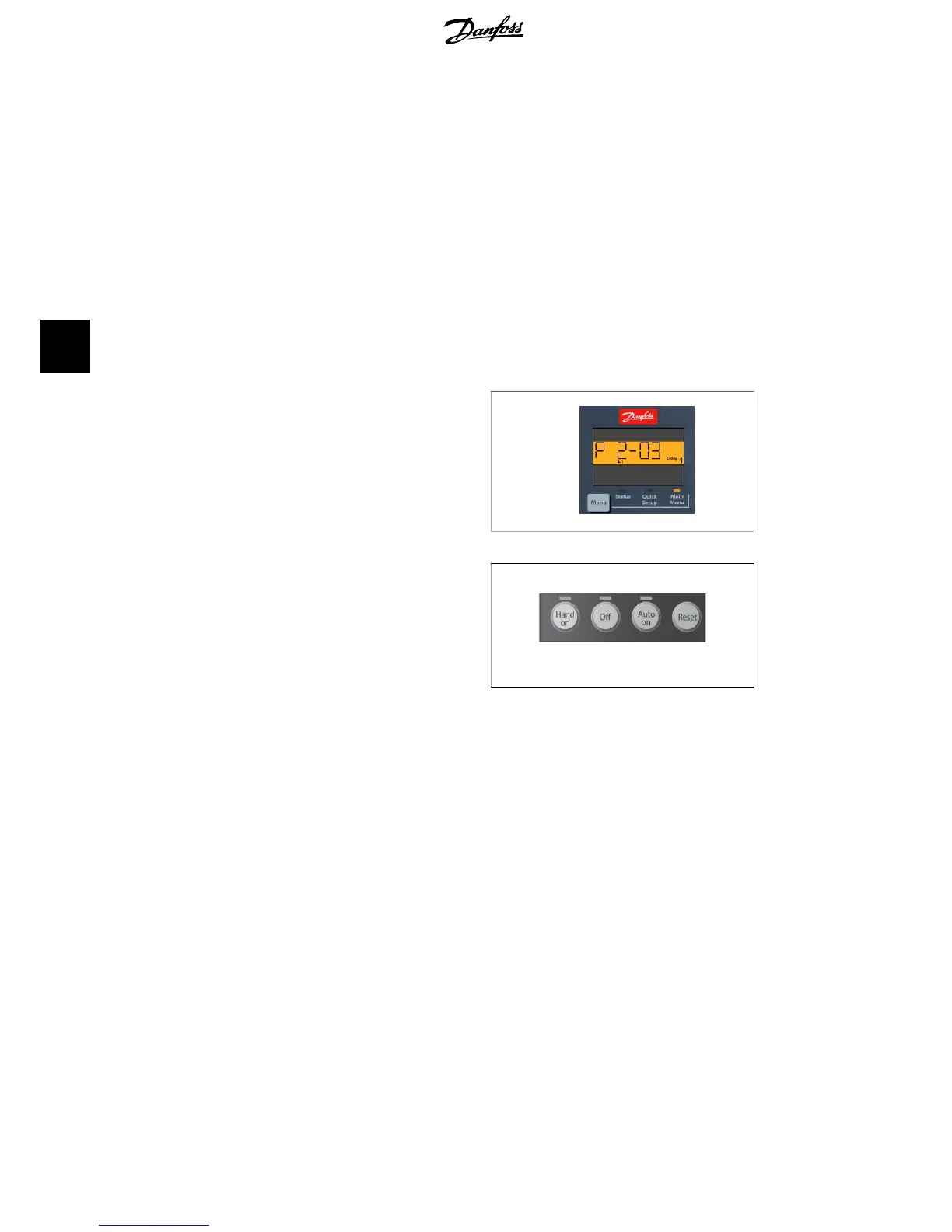

Illustration 5.4: Display example
Operation Keys
Keys for local control are found at the bottom
of the control panel.
130BP046.10
Illustration 5.5: Operation keys of the numerical
CP (NLCP)
[Hand on] enables control of the frequency converter via the LCP. [Hand on] also starts the motor
and it is now possible to enter the motor speed data by means of the arrow keys. The key can be
selected as
Enable
[1] or
Disable
[0] via par. 0-40
[Hand on] Key on LCP
.
5. How to operate the frequency converter VLT
®
HVAC Drive Operating Instructions
48
MG.11.A4.02 - 09.10.06. VLT
®
is a registered Danfoss trademark
5
