4.1.12. Motor connection for A5

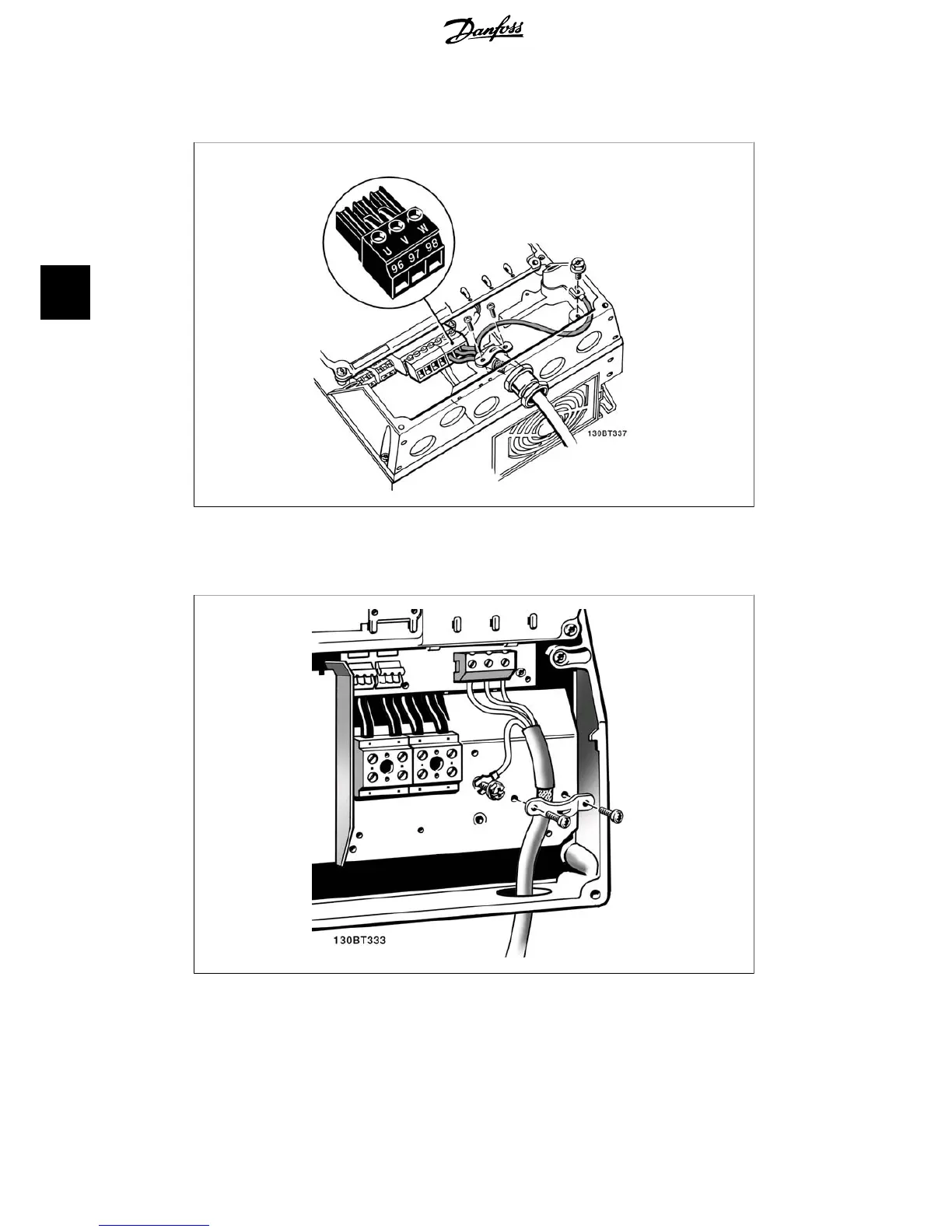

Illustration 4.13: First terminate the motor earth, then place motor U, V and W wires in terminal and tighten.
Please ensure that the outer insulation of the motor cable is removed under the EMC clamp.
4.1.13. Motor connection for B1 and B2
Illustration 4.14: First terminate the motor earth, then Place motor U, V and W wires in terminal and tighten.
Please ensure that the outer insulation of the motor cable is removed under the EMC clamp.
4. Electrical installation VLT
®
HVAC Drive Operating Instructions
32
MG.11.A4.02 - 09.10.06. VLT
®
is a registered Danfoss trademark
4
