Fittings and installations, continued

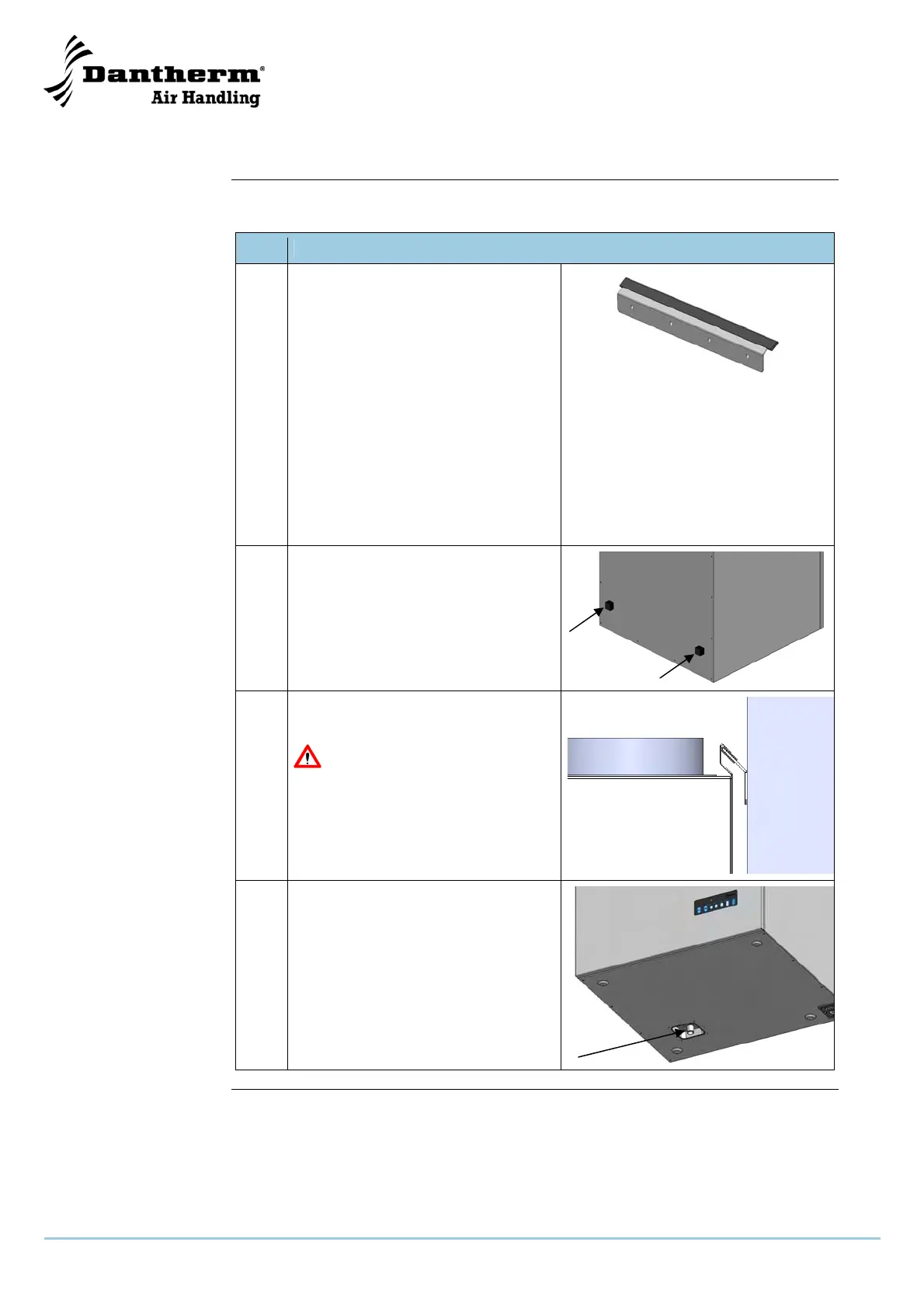

Mounting the unit
Follow this procedure to mount the unit:
Step Action
1 Mount the mounting bracket horizon-
tally on the wall with four screws suit-
ing the wall’s material and thickness
and mount the rubber band on the rail
as shown on the illustration.
The screws’ minimum breaking
strength must not be less than 365 N
(HCV 3) and 540 N (HCV 5).
NB: Note that Dantherm Air Handling
is able to supply a special sus-
pension, which minimizes the
depth of the unit, if the HCV 5
needs to be built into a cupboard
with a cupboard door
2 Mount the two distance blocks on the
backside of the unit as shown on the
illustration.
3 Lift the unit on to the mounting
bracket
Due to the weight of the unit, two
persons are required to lift and place
the unit.
4 Mount the drainage hose on the
flange underneath the unit.
Use lubricant if necessary.
Continued overleaf
