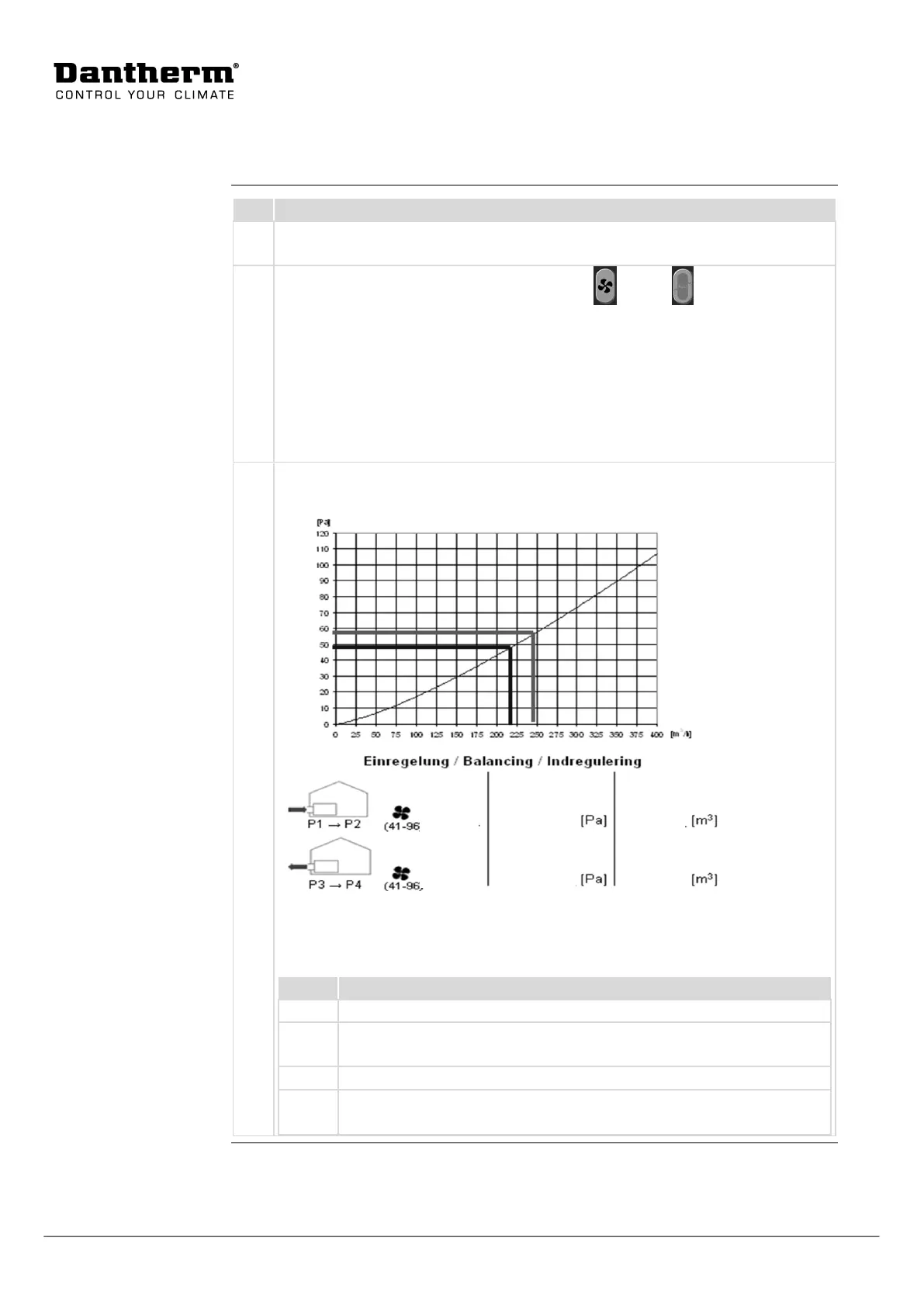

Dantherm HCV 5 Installation Manual

10
Adjustment, continued
Procedure, continued
Step
Action
2
Turn off the power supply to the unit and wait for 10 seconds. Then turn the
power back on.
3
Activate Installation Mode by pressing Manual + Auto for 6 seconds. Af-
ter this, Fan 3 lights up constantly.
NOTE: Installation Mode is active for one hour. In Installation Mode, frost protec-
tion and filter compensation are bypassed to prevent disruption during adjust-
ment on Fan Step 3.
Installation Mode is switched off with the same action.
4
How to set the air flow.
Set a desired air flow in accordance with national regulations and requirements,
based on the size and air usage in the house:
Step
Action
1
Write down the supply and exhaust air flow rates in the graph.
2
Read and write down the corresponding pressure loss to be achieved
through the heat exchanger.
3
Adjust the unit.
4
Write down the settings from the control panel potentiometers in the
table later in this procedure.
Continued overleaf
Pressure loss through the
heat exchanger
The plotted values and handwritten data are for illustrative purposes only
216
230
48
58
50
59
P1 - P2 Supply air P3 - P4 Extract air
