19
070719
•
Version 1.1
•
05.10.2012
EN

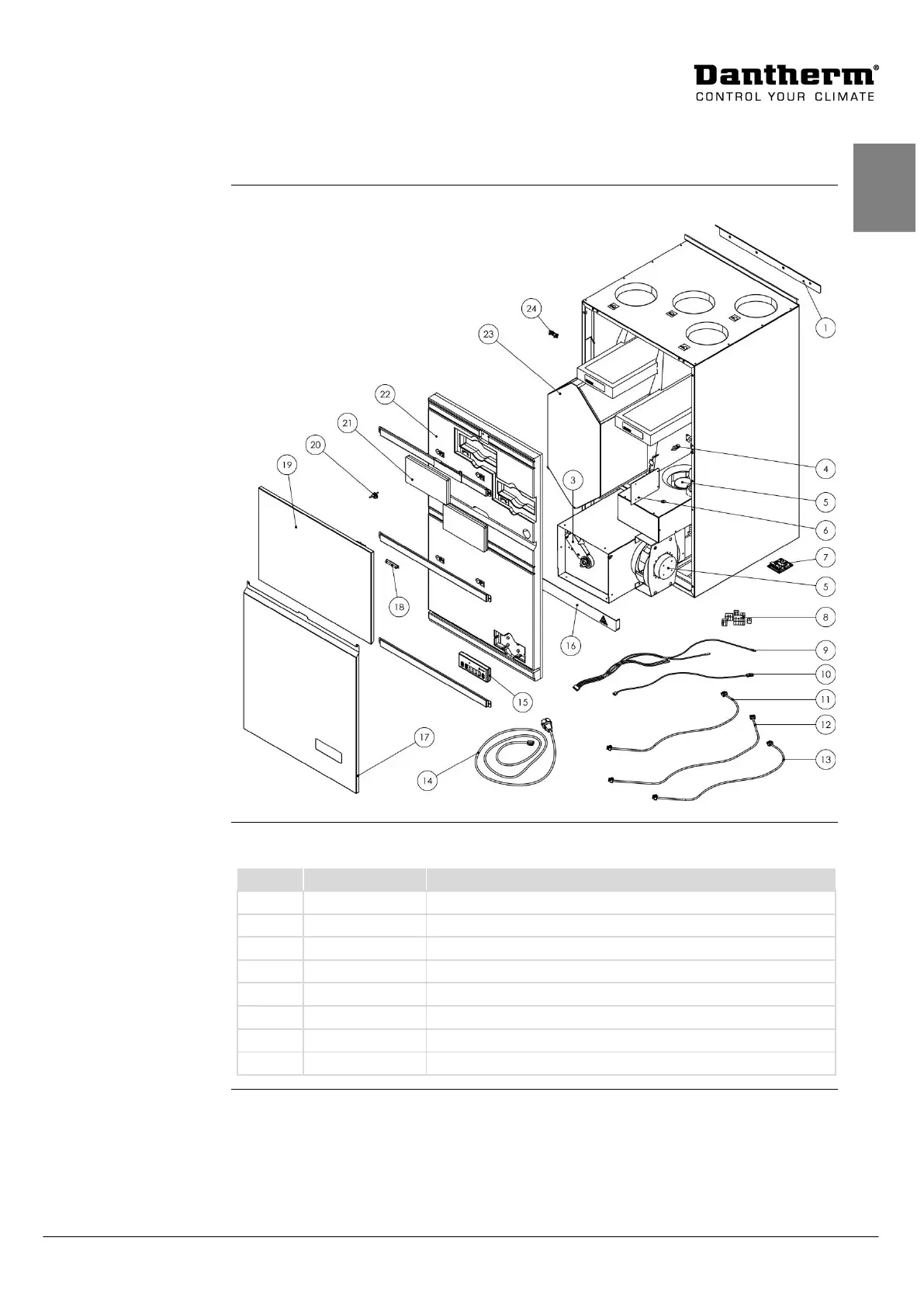

Spare parts list, HCV 5v12
Illustration
Spare parts for HCV 5v12
List HCV 5
Spare parts list including spare parts numbers:
Item
Product number
Description
1
063680
Mounting rail
3
062031
Damper motor, 230 V AC 2 Nm 75 sec with split bu
shing
4
062064
Filter reset button, FRB
5
062028
Fan, diameter 190 mm, 650 mm cable
6
062294
Print MPCB
7
062062
Connection panel, CP: IEC plug
8
062033
Cabling, complete set
9
062047
Temperature sensor, cable set, wall
Continued over
leaf
20
22
Table of Contents
English
3
Table of Contents
3
Introduction
4
General Information
4
Product Description
5
Assembly and Installation
7
Assembly
7
Adjustment
11
Set Points and Control Strategies
15
Service
16
Preventive Maintenance
16
Spare Parts List HCV 4
19
Spare Parts List, HCV 5V12
21
Troubleshooting Guide
23
Service Agreement
28
Technical Data
29
Dimensions, HCV 4
31
Dimensions, HCV 5V12
32
Electrical Diagram
33
Index
34
Deutsch
67
Einführung
68
Allgemeine Informationen
68
Produktbeschreibung
69
Montage und Installation
71
Montage
71
Einregulieren
75
Sollwerte und Kontrollstrategien
79
Service
80
Vorbeugende Wartung
80
Ersatzteilliste HCV 4
83
Ersatzteilliste, HCV 5V12
85
Anleitung zur Fehlersuche
87
Servicevereinbarung
92
Technische Daten
93
Abmessungen, HCV 4
95
Abmessungen, HCV 5V12
96
Elektrischer Schaltplan
97
Index
98
Français
99
Introduction
100
Informations Générales
100
Description du Produit
101
Montage Et Installation
103
Montage
103
Réglage
107
Points de Consigne Et Stratégies de Commande
111
Entretien
113
Maintenance Préventive
113
Liste des Pièces de Rechange HCV 4
116
Liste des Pièces de Rechange, HCV 5V12
118
Guide de Dépannage
120
Accord de Prestations de Services
126
Caractéristiques Techniques
127
Dimensions, HCV 4
130
Dimensions, HCV 5V12
131
Schéma Électrique
132
Index
133
