Dantherm HCV 5 Installation Manual

3
070719 • Version 1.1 • 05.10.2012
EN
Product description
Introduction
This section provides a description of the unit.
The use of the HCV
The HCV is used for domestic ventilation. The unit supplies fresh, heated outdoor air
through the unit to the house. Polluted and warm extract air is used to heat up the out-
door air by means of heat recovery.

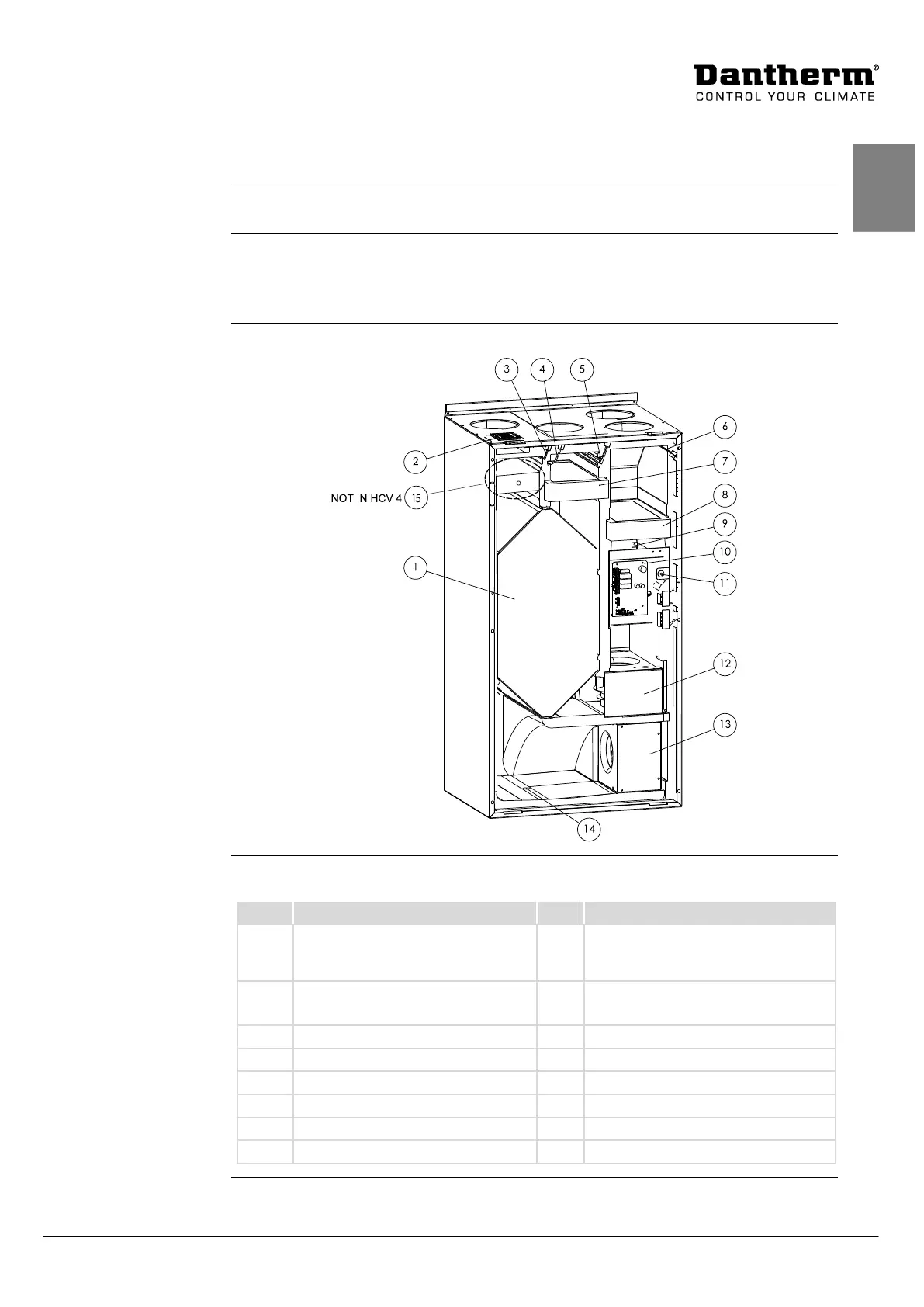

Illustration, internal
The illustration shows the different parts of the unit seen from within:
Parts
The table lists the main parts in the unit:
No.
Part
No.
Part
1
Heat exchanger
8
Air supply filter (G4/F7)
G4 filter is standard, F7 pollen filter is an op-
tional extra
2
Electrical connections (located at
the bottom of the HCV 5)
9
Temperature sensor, T4
3
Temperature sensor, T2
10
Controls
4
Temperature sensor, T3
11
Reset button for filter timer
5
Humidity sensor
12
Supply air fan module
6
Temperature sensor, T1
13
Extract air fan module
7
Exhaust filter (G4)
14
Drain/drip tray
15
Bypass (only HCV 5)
Continued overleaf
