19
070719
•
Version 1.1
•
05.10.2012
DA
Reservedelsliste, HCV
5v12

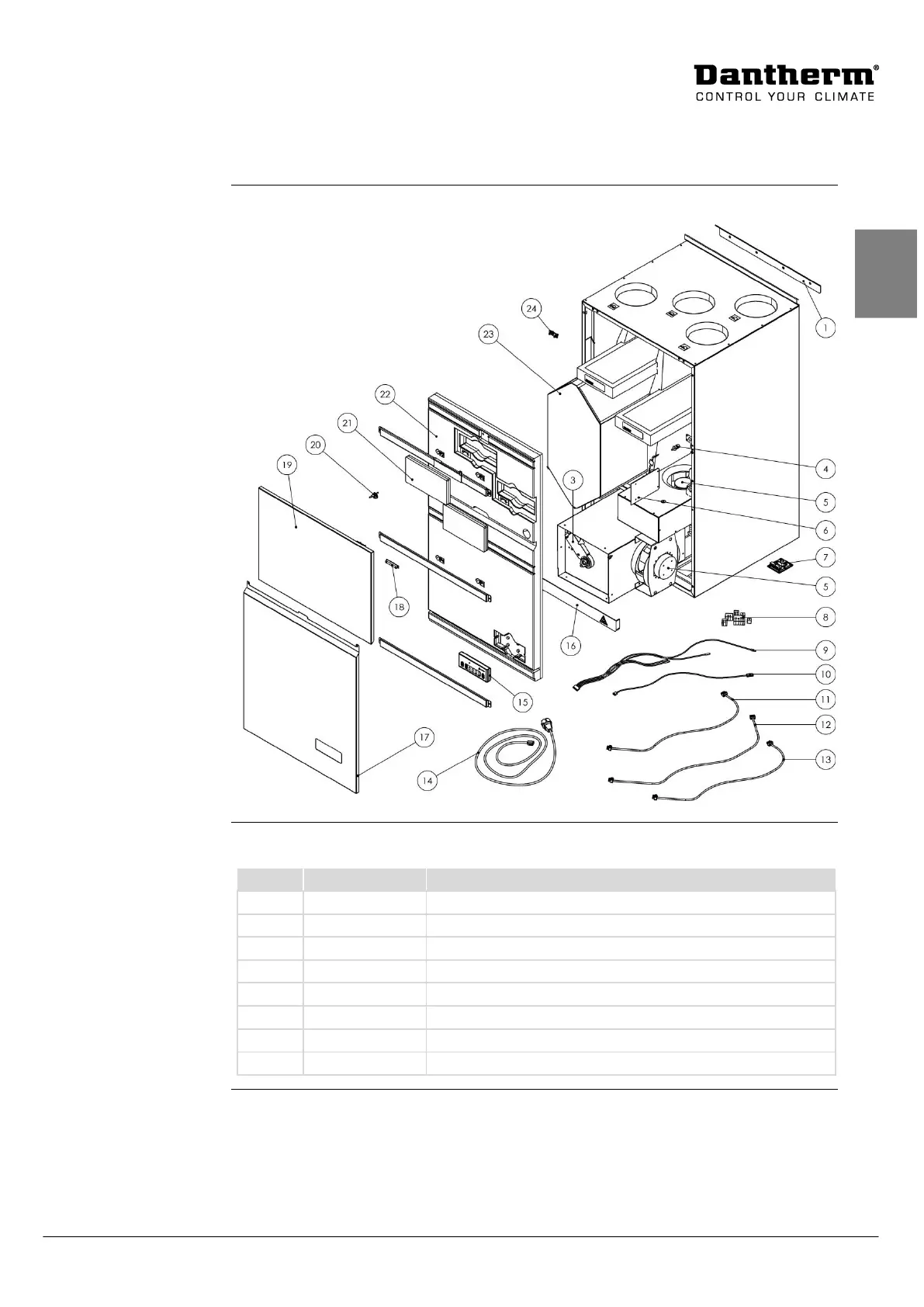

Illustration
Reservedele til HCV 5v12
Liste HCV 5
Reservedelsliste inklusive reservedelsnumre:
Pos.
Varenummer
Beskrivelse
1
063680
Ophængsskinne
3
062031
Spjældmotor, 230 V AC 2 Nm 75 sec med klembøsning
4
062064
Filternulstillingsknap, FRB
5
062028
Ventilator, ø190 mm, 650 mm kabel
6
062294
Print MPCB
7
062062
Forbindelsespanel, CP: IEC stik.
8
062033
Ledningsgennemføringer, komplet sæt
9
062047
Temperaturføler, kabelsæt, væg
Fortsættes på næste
side
52
54
Table of Contents
English
3
Table of Contents
3
Introduction
4
General Information
4
Product Description
5
Assembly and Installation
7
Assembly
7
Adjustment
11
Set Points and Control Strategies
15
Service
16
Preventive Maintenance
16
Spare Parts List HCV 4
19
Spare Parts List, HCV 5V12
21
Troubleshooting Guide
23
Service Agreement
28
Technical Data
29
Dimensions, HCV 4
31
Dimensions, HCV 5V12
32
Electrical Diagram
33
Index
