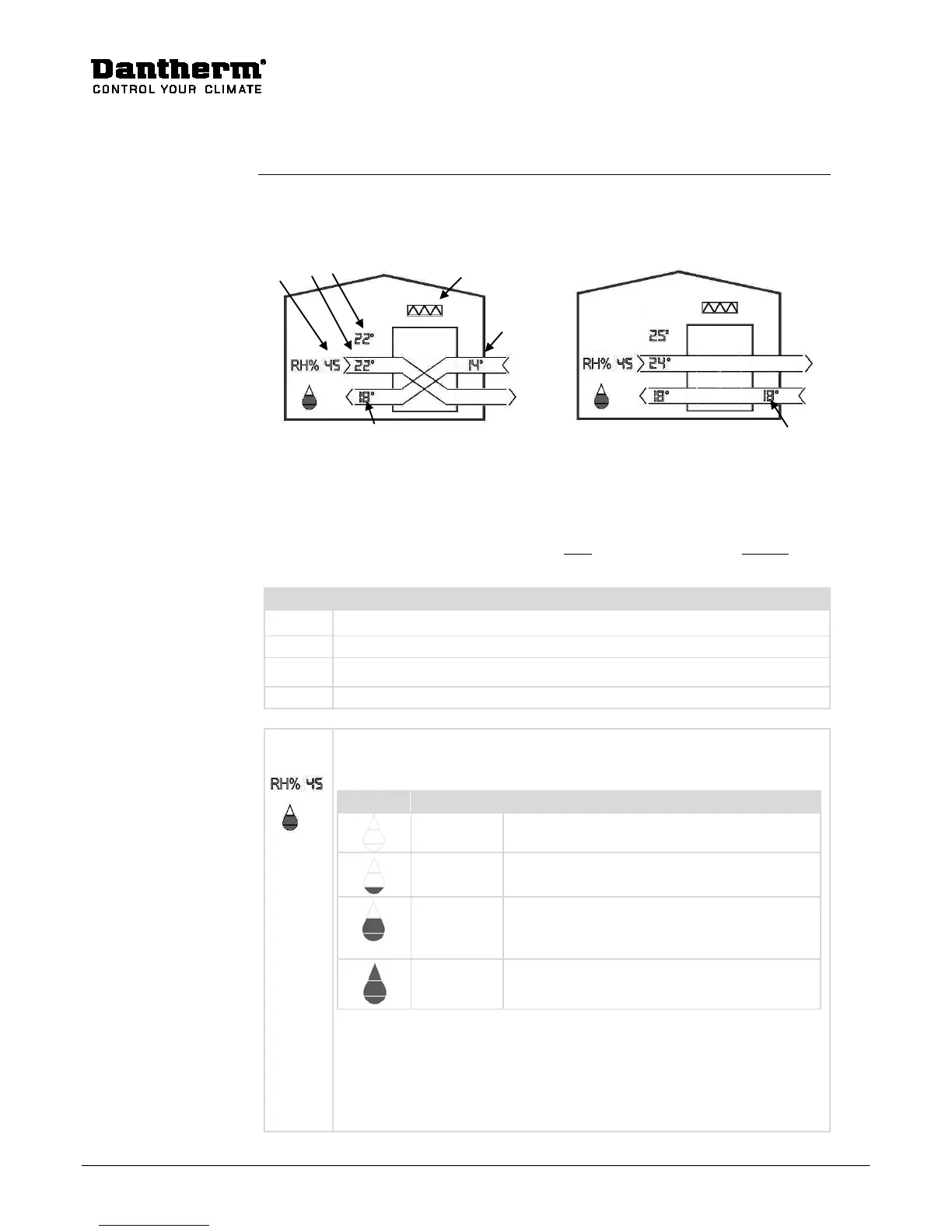

Operating information, without accessories.
Operating infor-
mation
The display shows various operating information according to the actual operation
mode. Two different screens are shown, depending on whether the unit is running in
HEAT RECOVERY MODE or BYPASS-COOLING mode.
Heat recovery/ by-
pass-cooling
The unit always runs in heat RECOVERY MODE, (crossing air channels on the display),
unless the conditions for BYPASS
-COOLING MODE are present (parallel air channels on
the display).
Please notice that RECOVERY MODE is used for
heat recovery as well as for cooling
recovery.
Symbol
Description
(T1) Outdoor temperature, measured in the outdoor duct of the unit.
(T2)
Supply air temperature, measured in the supply air duct of the unit.
(T3) Extract air temperature, measured in the extract air duct of the unit.
(T5)
Room air temperature, measured in the remote control.
(6)
Relative humidity in the room:
The filling up of the drop symbol indicates whether the relative humidity in
the house is within a comfortable area for the people and the home.
Symbol
Rel. hum. %
Description
< 24 Very dry air, fan step 1
25 - 34 Dry air, fan step 1
35 – 45
46 – 65
Comfort air, fan step 1-3
Comfort air, fan step 3
> 66 Humid air, fan step 3
Unit must be in AUTO mode in order to regulate in accordance with RH%.
HEAT RECOVERY MODE
BYPASS-COOLING MODE
(T1)
(6)
(7)
(T3)
(T5)
(T2)
(T1)
