INSTALLATION & SERVICE MANUAL FOR PROFESSIONALS
Product description: General description
Product description
General description
The RCV product range from Dantherm is a residential ventilation system designed to supply
homes with fresh and ltered air, and where the heat in the extract air is transferred to the
supply air without mixing the two airows. This results in energy-ecient ventilation with low
heat energy loss.
These units are designed to be installed in environments with temperatures >+12°C. The
compact design allows the RCV unit to be placed in e.g. utility rooms with only a little space.
The airow direction can be changed electronically to allow the connected ducts to be rout-
ed either to the right or to the left.

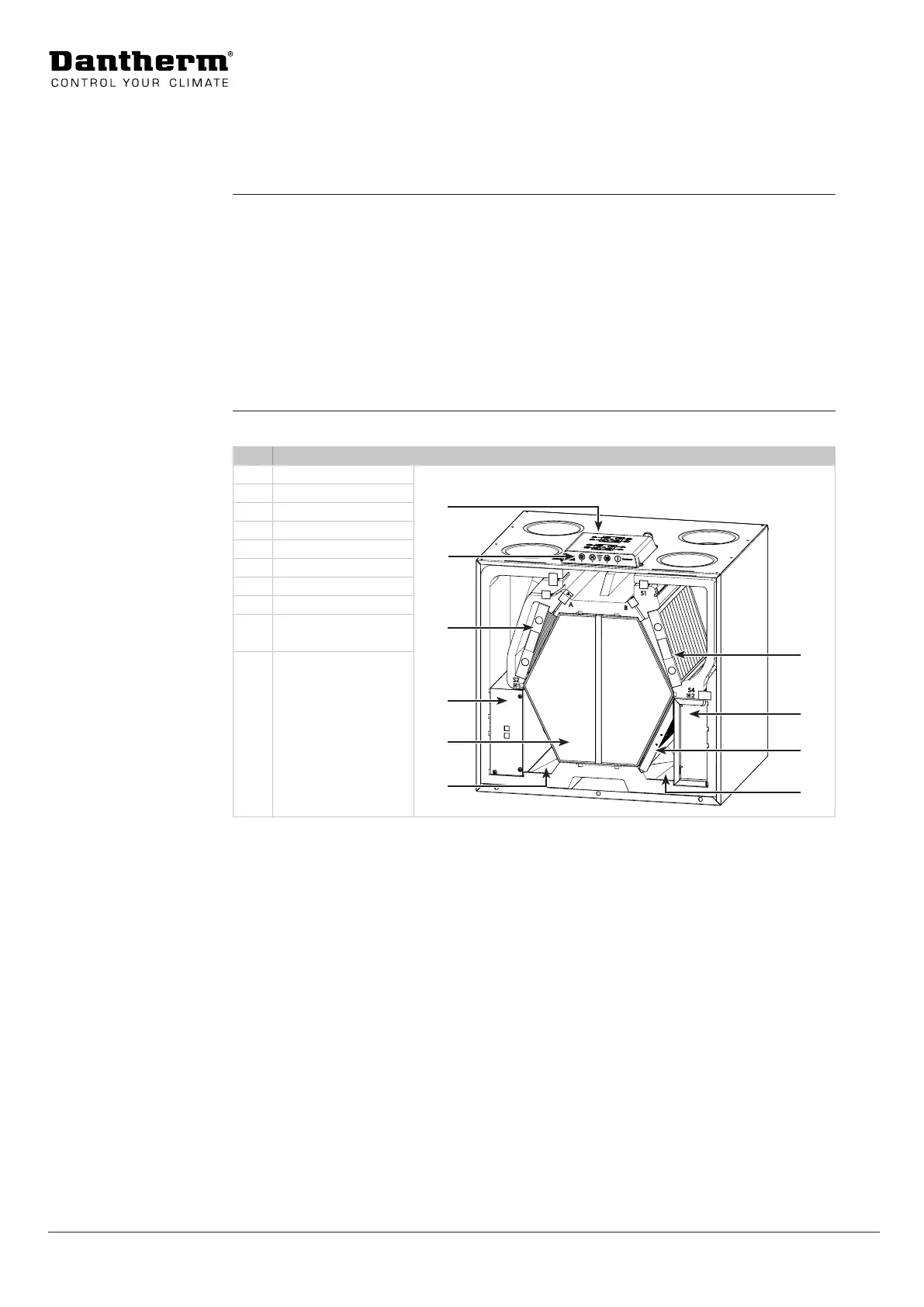

This illustration shows the RCV 320 without cover.
Loc. Part Illustration
1 Main PCB
1
2
3
5
7
4
6
8
9
10
2 Control panel
3 Filter 1
4 Filter 2
5 Fan box 2
6 Fan box 1
7 Heat exchanger
8 Bypass
9 Drip tray 1
(used in mode B)
10 Drip tray 2
(used in mode A)
Fig. 2
