INSTALLATION & SERVICE MANUAL FOR PROFESSIONALS
Product description: Accessing the main PCB
en

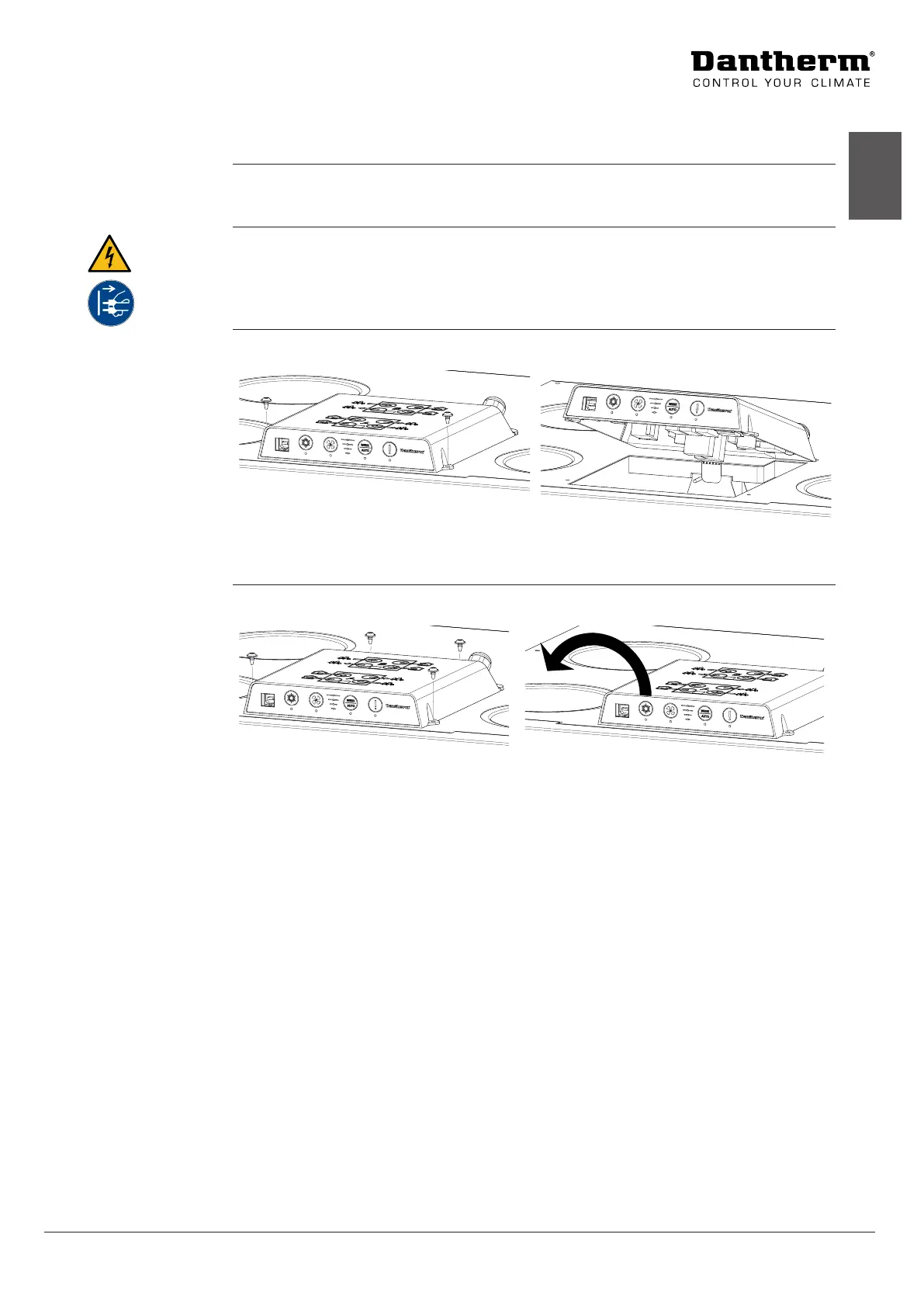

Accessing the main PCB
Depending on the installation site and your preferences, you have three options of accessing
the main PCB (see in this section).
Injury caused by electric shock and risk of damage to the device
• Always ensure that the mains plug is disconnected from the electrical outlet before you
open into the main PCB.
Tilt the housing
Release the two screws at the side of the
housing.
Tilt the housing up in order to access the
main PCB.
Disassemble the complete housing
Disassemble the housing from the unit by
releasing the four screws.
Turn around the housing in order to access
the main PCB.
Introduction
WARNING
Option 1
Option 2
