INSTALLATION & SERVICE MANUAL FOR PROFESSIONALS
Installation: Mounting the device

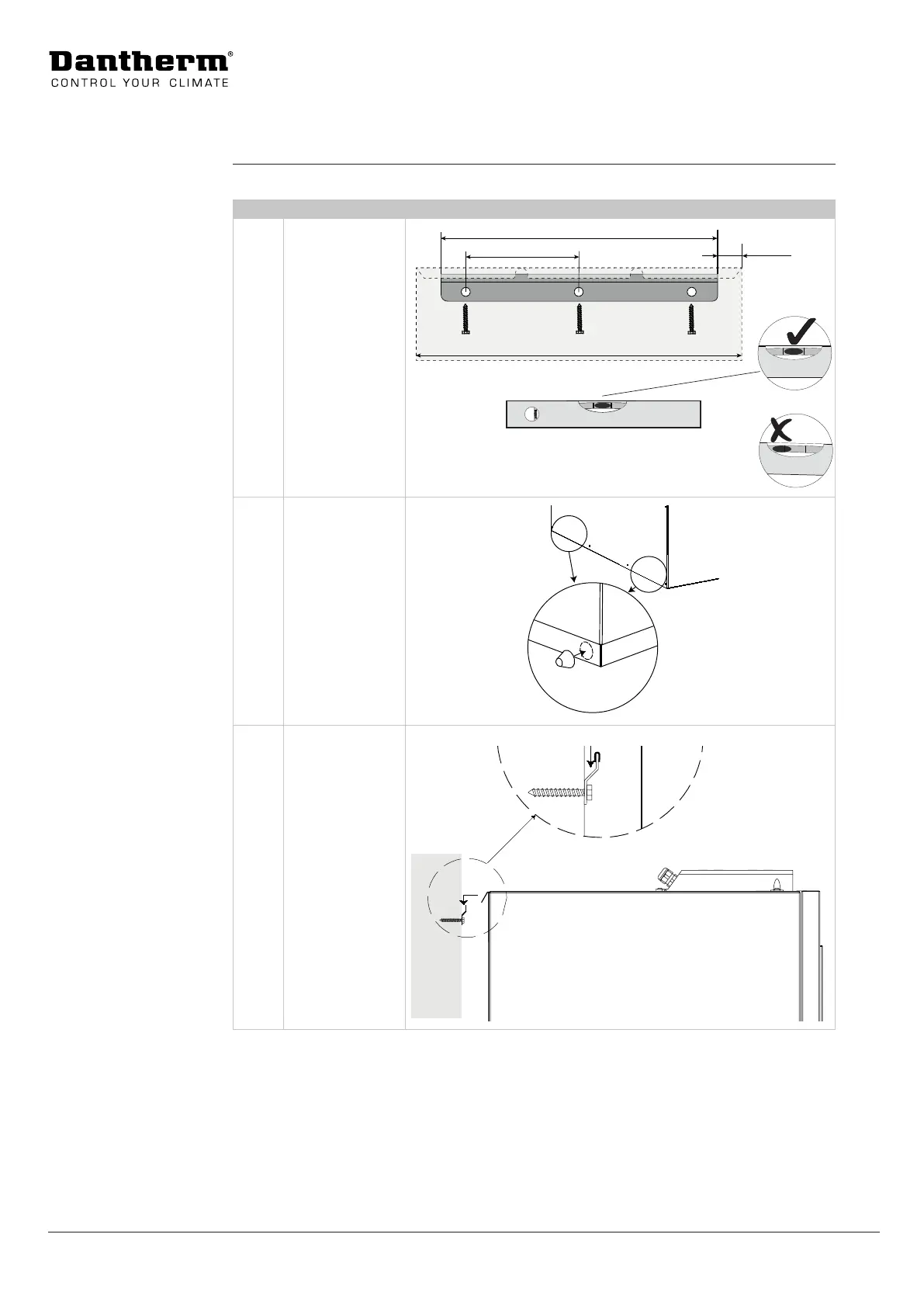

Mounting the device
Follow these steps when mounting the RCV 320 on the wall.
Step Action Illustration
1 Fix and level the
wall rail using
these measure-
ments.
Make sure that
you use appro-
priate screws
and rawl plugs.
220 mm 42 mm
600 mm
516 mm
3 Mount the two
spacers at the
bottom and rear
of the unit.
4 Mount the vibra-
tion damper on
the wall rail and
lift the unit onto
the wall rail.
Wall mounting
