Operation
Control panel - overview
The control panel has four buttons (two on the left side and two on the right side) with corre-
sponding LEDs underneath. An LED light with four levels indicating the fan speed is situated
in the middle. It will always indicate the current fan speed regardless of the operating mode.
This illustration shows an overview of the dierent modes (three main modes and three tem-
porary override modes) and other functions that can be displayed in the control panel and
activated via the buttons.
Temporary mode:
• Bypass (automatic/manual)
• Summer mode
Alarm reset:
• Check lter (orange)
• Fault alarm (red)
(see page 41 and 44)
Main mode:
• Week program
• Demand-controlled mode
Main mode:
• Manual operation
Temporary mode:
• Fireplace mode
Fan speed level indicator

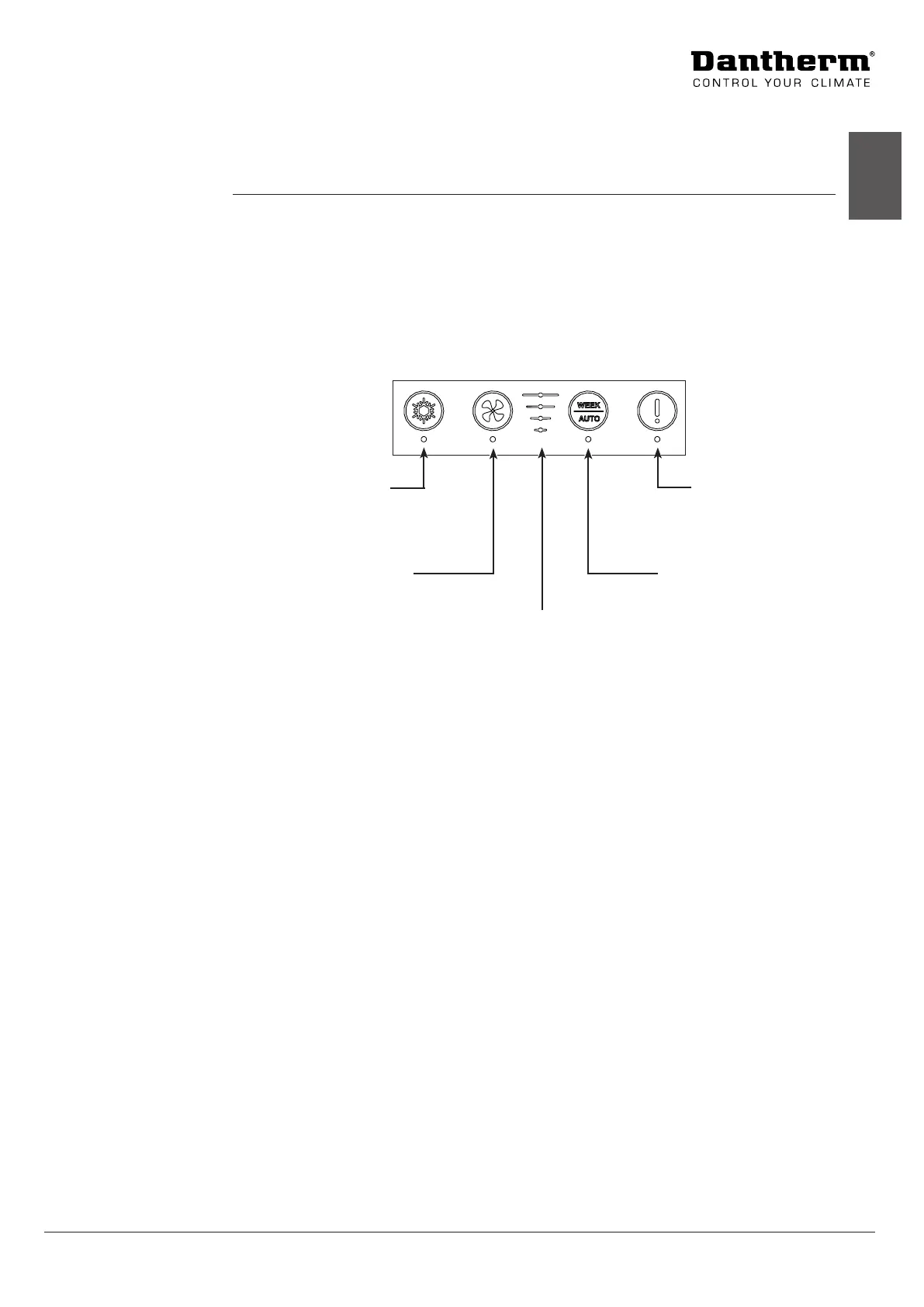

Fig. 1
