Installation: Mounting the device
en

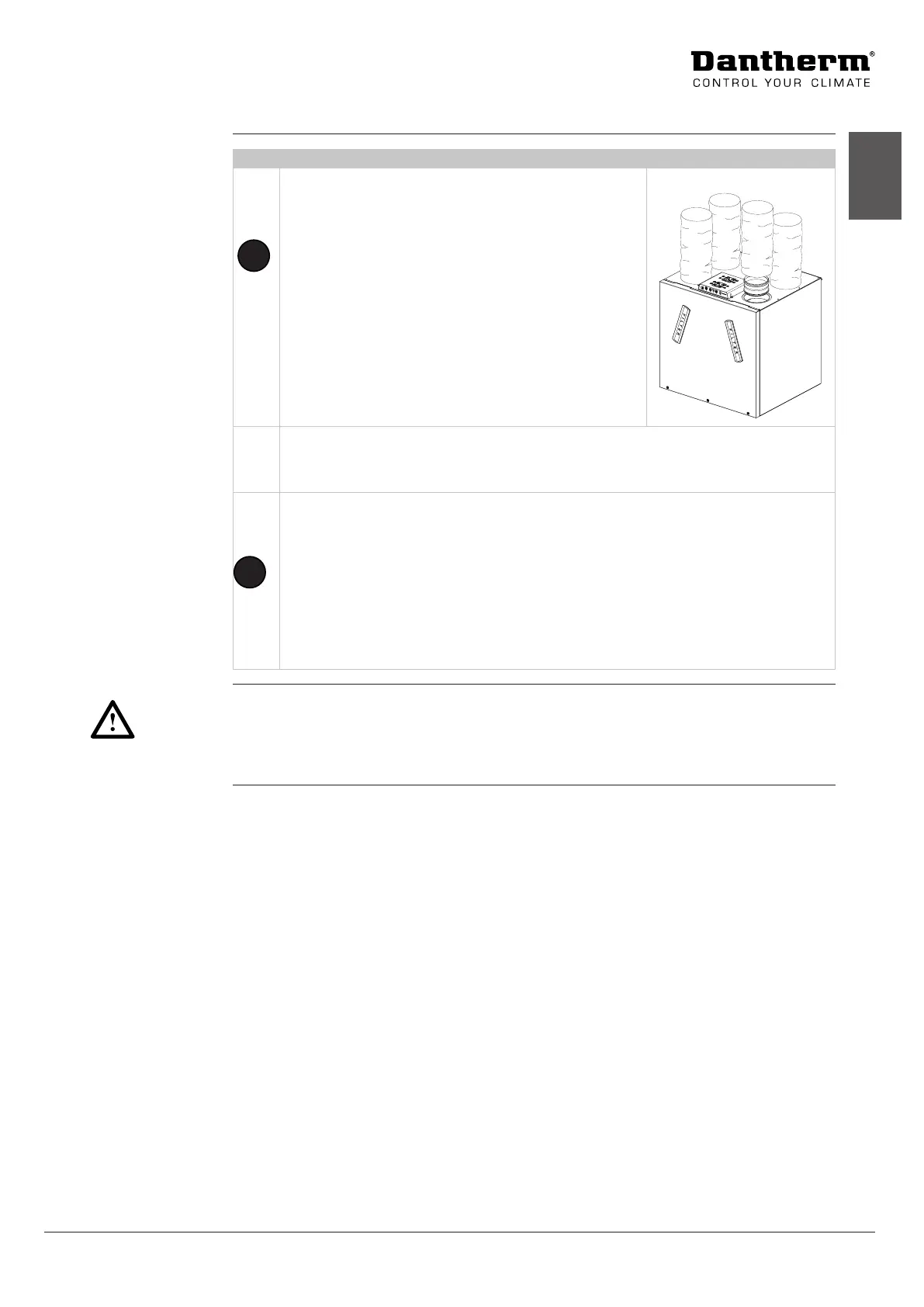

Step Action Illustration
1 Connect the ducts to the desired duct connections at
the top of the unit
Note: Make sure that the ducts, which you connect to
the unit, have the same or a larger diameter in compari-
son with the connector.
(The measurements can be seen in the Technical Data
section on page 52.)
2 All four ducts must be wrapped completely in a minimum of 50 mm insulation (in
heated rooms)
3 Determine the correct duct connections (A/B mode) on page 17 in order to know,
where to lead the dierent ducts.
Note: The installation of the ducts incl. duct dimensions, sound absorbers and insu-
lation must be done in accordance with national standards and building regulations.
Make sure always to calculate how much insulation is needed in the current installa-
tion. Contact your Dantherm distributor for further information.
Dantherm accepts no liability to water damages caused by an inappropriate duct
installation.
Dust hazard
Ducts and connectors must be protected and kept closed until the house is ready to be
occupied. This is to ensure that no moisture, dirt or dust enters the ducts, which may cause
problems at a later stage.
