STEP 4:
STEP 5:

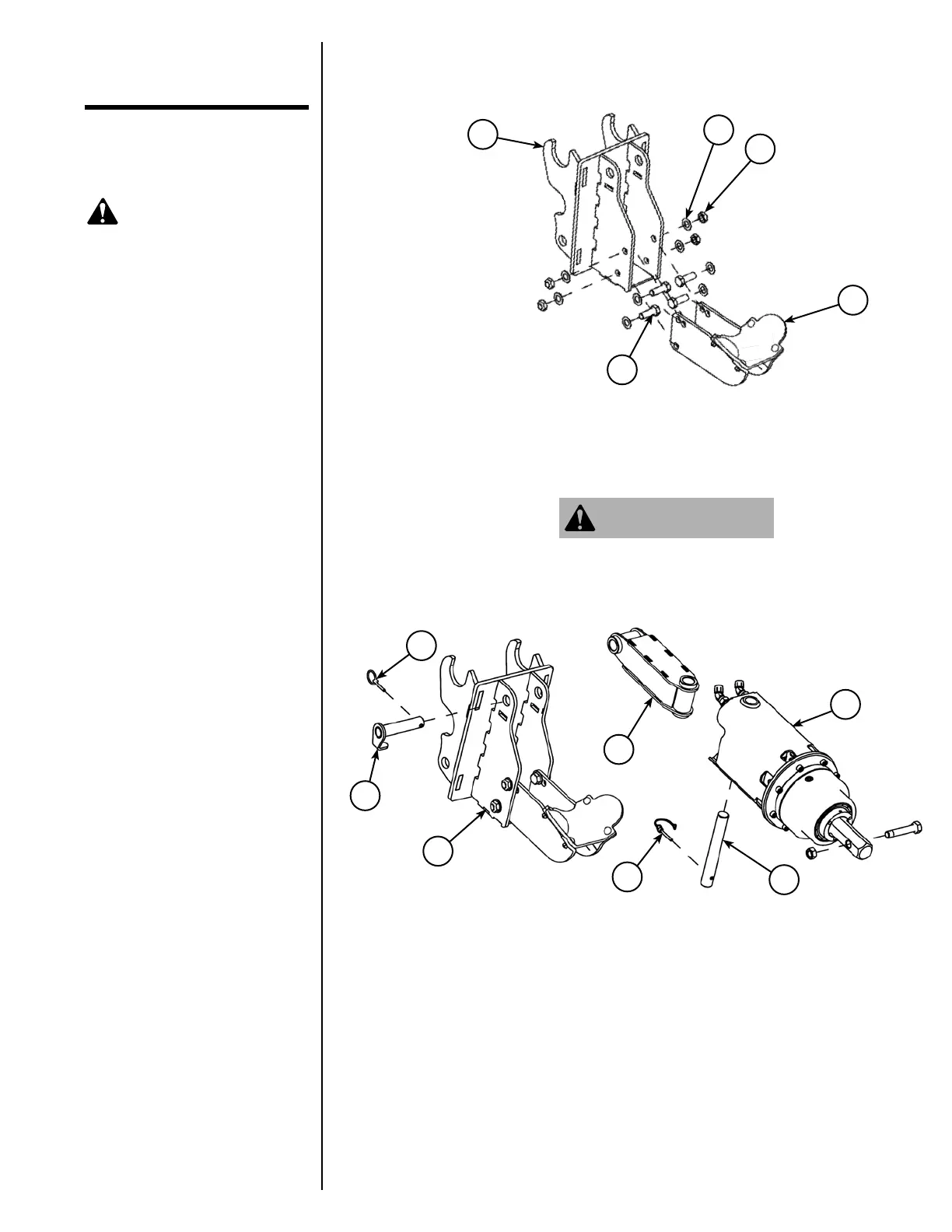

Using a 1-1/8" wrench and torque wrench with 1-1/8" socket, bolt cradle assembly
(7) to quick attach plate assembly (6) with 3/4" bolts (8) and washers (9), and
secure with 3/4" nuts (10) and washers (9).
STEP 3:
Using a torque wrench with 9/16" socket, tighten 3/8" nuts (5).
Park the vehicle on level ground, and install the quick attach plate assembly by
following your vehicle operator's manual for installing an attachment.
The earth auger must be securely latched to the vehicle.
Ensure quick attach latching method is secure. An
improperly latched earth auger can fall without warning.
WARNING
10
7
6
8
9
Assembly &
Installation
(continued)
Because of the weight of
some components, and
because some
components are difficult
to balance, two people
are required for safe
assembly and installation
of this equipment.
CAUTION
Attach the wider end of the knuckle assembly (11) to the drive unit (12) using pin
(13). Secure pin (13) with lock pin (14).
Attach knuckle assembly/drive unit to the quick attach plate assembly (6) using
pin (15). Align pin (15) head with slot on quick attach plate assembly (6). Secure
pin (15) with klik pin (16).
Proceed to Assembly & Installation: Backhoe & Excavator Hose Routing section.
