16
STEP 1:
STEP 2:

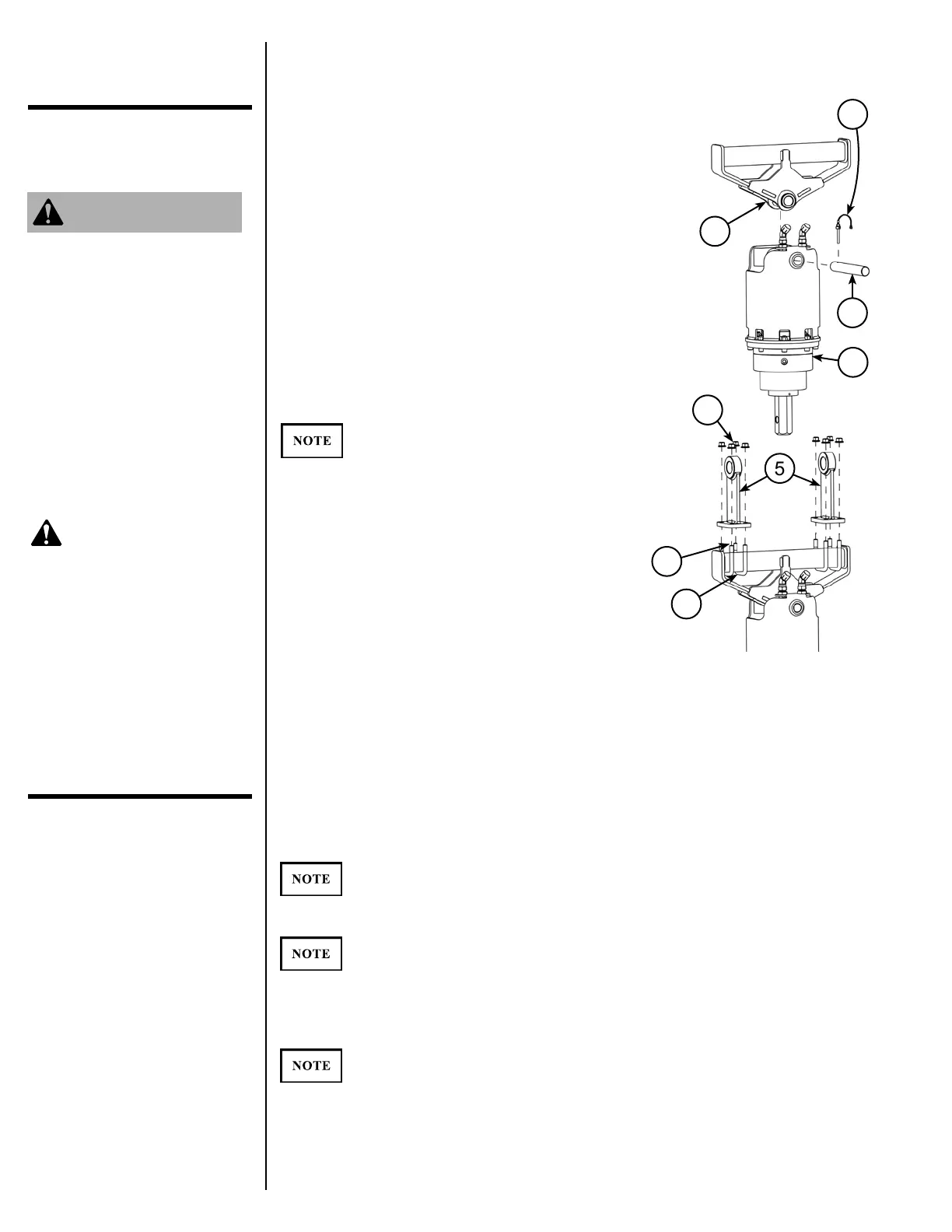

Attach drive unit (1) to the knuckle sub-assembly (2)
using pin (3). Secure pin (3) with lock pin (4).
Park the vehicle on level ground. Remove
bucket from dipperstick, and curl cylinder pin
connections. The dipperstick pin will be used to
attach the knuckle assembly to the dipperstick.
The curl cylinder pin will not be required for drive
unit installation.
Space the two ear assemblies (5) to the width of the
dipperstick, and use a torque wrench with 3/4" socket
to secure the ears to the knuckle sub-assembly (2) with
1/2" U-bolts (6) and 1/2" nuts (7). The ear assemblies
should be spaced evenly from the center of the
knuckle sub-assembly.
Check and re-torque nuts (7) after the first
hour of use.
Attach knuckle assembly/drive unit to the
dipperstick using the dipperstick pin removed from
the bucket in STEP 2. Secure the bucket pin per
vehicle manufacturer’s recommendations.
Proceed to Assembly & Installation: Backhoe &
Excavator Hose Routing section.
Assembly &
Installation
Backhoe & Excavator
Pin-on Mounting Kit
STEP 1:
STEP 2:
STEP 3:
STEP 4:
4
1
2
3
2
5
6
7
Because of the weight of
some components, and
because some
components are difficult
to balance, two people
are required for safe
assembly and installation
of this equipment.
Personal protection
equipment including
hard hat, safety glasses,
safety shoes, and gloves
are recommended during
assembly, installation,
operation, maintenance,
service, removal, or
movement of the earth
auger. Do not allow long
hair, loose fitting
clothing, or jewelry to be
around moving and/or
rotating parts.
Recommended Tools
• 3/4" socket • Torque wrench
Assembly &
Installation
Backhoe & Excavator
Hose Routing
If you purchased Danuser Hose Kits PN 196025, 196027, 206031, or 206032,
install by using a 7/8" wrench and a 1" wrench to tighten the hose connections
onto the 45° adapters on the drive unit.
All hoses and fittings used to connect the earth auger should be thoroughly cleaned
before use. Care should be taken to see that no thread sealer or metal chips are
forced to the inside of the joints when connections are being tightened.
Since the hydraulic motor is reversible, hose connections to motor fittings are
interchangeable.
Using a 1-7/16" wrench and a 1" wrench, tighten the hydraulic quick couplers onto
the hoses.
Danuser Hose Kits PN 206031 and 196025 do not include hydraulic quick
couplers. You must obtain the proper hydraulic quick couplers for your particular
vehicle.
Recommended Tools
• 7/8" wrench • 1" wrench • 1-7/16" wrench
