Danuser EP Series - Page 29

29
Parts

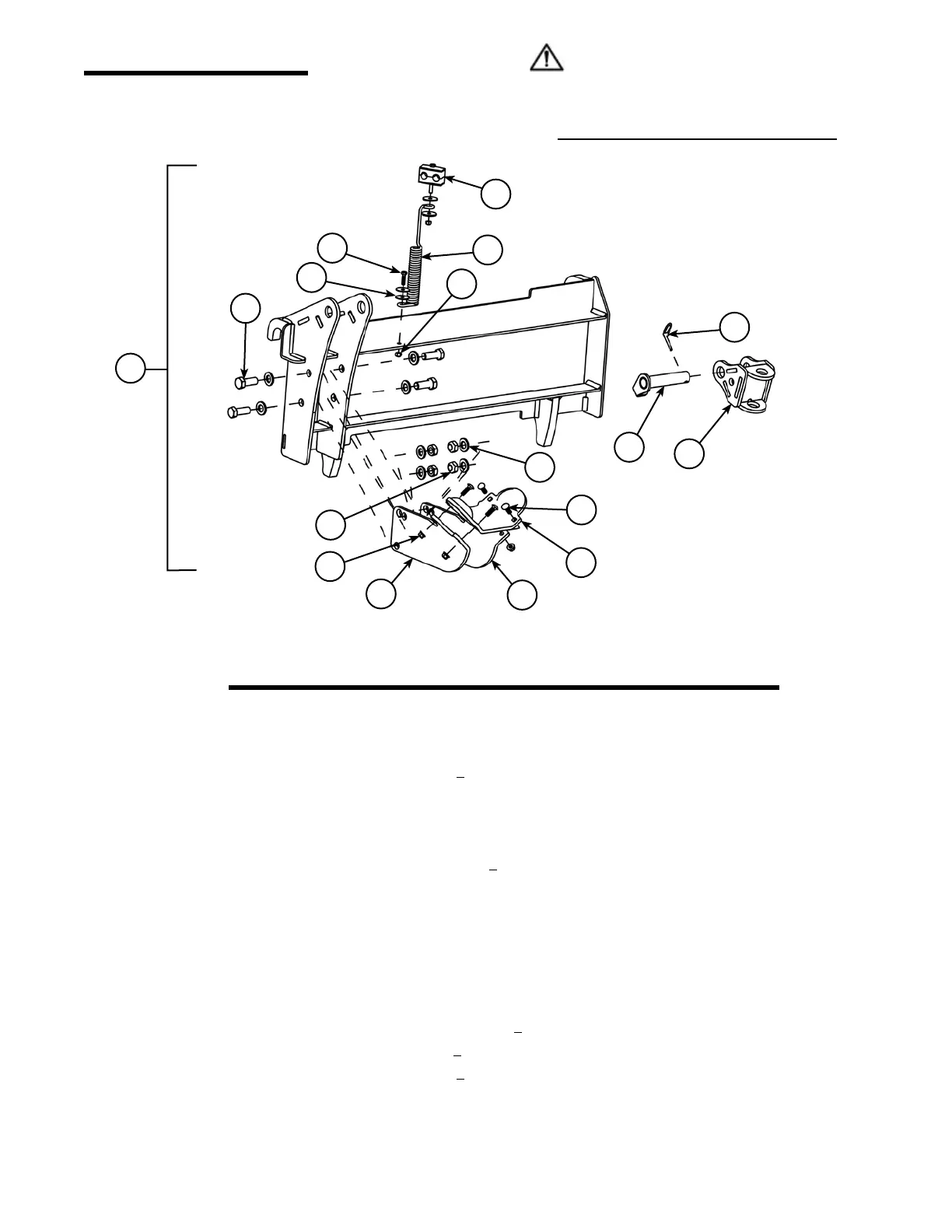

Euro/Global Quick Attach
- Offset
WARNING
This product can expose you to chemicals known to the State of
California to cause cancer and birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov/product.
9
10
8
2
6
7
1
3
4
5
11
12
16
17
14
13
15
REF. NO. PART NO. DESCRIPTION QTY.
1 190052 Euro/Global Quick Attach Plate Assembly 1
2 12251 1/2" Hydraulic Hose Clamp Kit (Includes Hardware) 1
3 12247 Hydraulic Hose Spring 1
4 1180 Bolt (3/8"
16 x 1") 1
5 12259 Washer (13/32" x 1-1/2") 2
6 10412 Nut (3/8") 1
7 10267 Washer (3/4") 8
8 10268 Lock Nut (3/4"
10) 4
9 190122 Left Cradle Arm 1
10 190123 Right Cradle Arm 1
11 190124 Center Cradle Plate 1
12 170607 Knuckle Assembly 1
13 1600 Klik Pin 1
14 180422 Pin Assembly 1
15 196020 Carriage Bolt (3/8"
16 x 1-1/4", Gr. 5) 4
16 21316 Nut (3/8"
16) 4
17 196012 Bolt (3/4"
10 x 2", Gr. 8) 4
