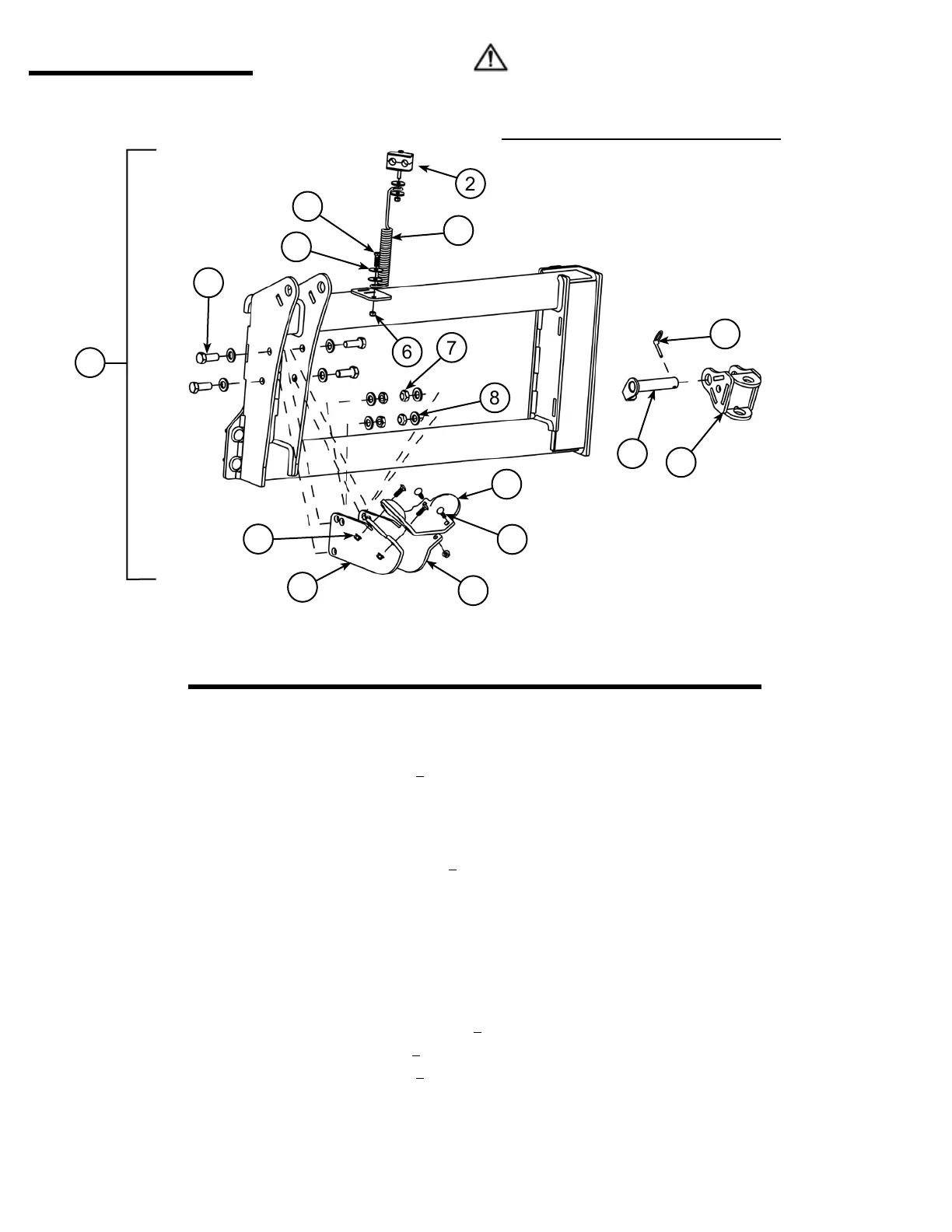

Parts
John Deere 200-500 Series
Quick Attach - Offset
1
14
13
16
REF. NO. PART NO. DESCRIPTION QTY.
1 190053 John Deere 200-500 Series Quick Attach Plate Assembly 1
2 12251 1/2" Hydraulic Hose Clamp Kit (Includes Hardware) 1
3 12247 Hydraulic Hose Spring 1
4 1180 Bolt (3/8"
16 x 1") 1
5 12259 Washer (13/32" x 1-1/2") 2
6 10412 Nut (3/8") 1
7 10267 Washer (3/4") 8
8 10268 Lock Nut (3/4"
10) 4
9 190122 Left Cradle Arm 1
10 190123 Right Cradle Arm 1
11 190124 Center Cradle Plate 1
12 170607 Knuckle Assembly 1
13 1600 Klik Pin 1
14 180422 Pin Assembly 1
15 196020 Carriage Bolt (3/8"
16 x 1-1/4", Gr. 5) 4
16 21316 Nut (3/8"
16) 4
17 196012 Bolt (3/4"
10 x 2", Gr. 8) 4
