31
WARNING
This product can expose you to chemicals known to the State of
California to cause cancer and birth defects or other reproductive harm.
For more information go to www.P65Warnings.ca.gov/product.

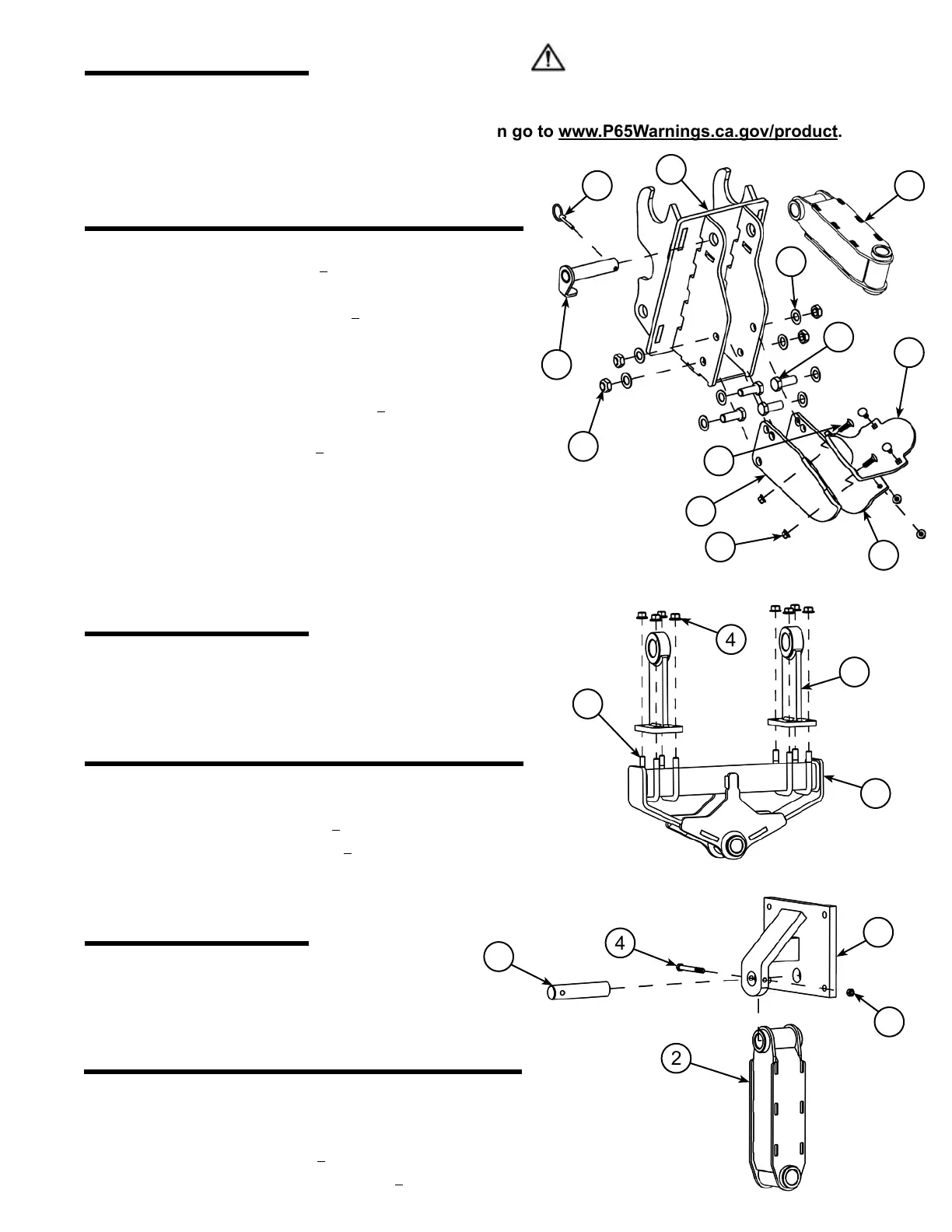

Parts
Bolt-on Bucket Mounting Kit
5
1
2
3
4
REF. NO.
PART NO. DESCRIPTION QTY.
1 9591B Bucket Mount Assembly 1
2 172015 Knuckle Assembly 1
3 9595 Pin (1-1/4" x 6") 1
4 3041 Bolt (3/8"
16 x 3-1/2", Gr. 8) 1
5 2805 Self-locking Nut (3/8"
16) 1
2
3
4
Parts
Backhoe & Excavator
Pin-on Mounting Kit
REF. NO.
PART NO. DESCRIPTION QTY.
1 ----- Ear Assembly 2
2 180427 Knuckle Assembly 1
3 10220 U-bolt (1/2"
13) 4
4 6196 Locknut (1/2"
13) 8
1
Parts
Backhoe & Excavator
Quick Attach Mounting Kit
REF. NO.
PART NO. DESCRIPTION QTY.
1 ----- Quick Attach Plate Assembly 1
2 196012 Bolt (3/4"
10 x 2", Gr. 8) 4
3 21125 Washer (3/4") 8
4 10268 Lock Nut (3/4"
10) 4
5 190122 Left Cradle Arm 1
6 190123 Right Cradle Arm 1
7 190124 Center Cradle Plate 1
8 196020 Carriage Bolt (3/8"
16 x 1-1/4",
Gr. 5)
4
9 21316 Nut (3/8" 16) 4
10 172015 Knuckle Assembly 1
11 1600 Klik Pin 1
12 180422 Pin Assembly 1
1
3
4
5
6
9
8
2
11
12
10
7
To Next Page
