DanVex DD Series - Service Access Allocation

Page 12 of 39

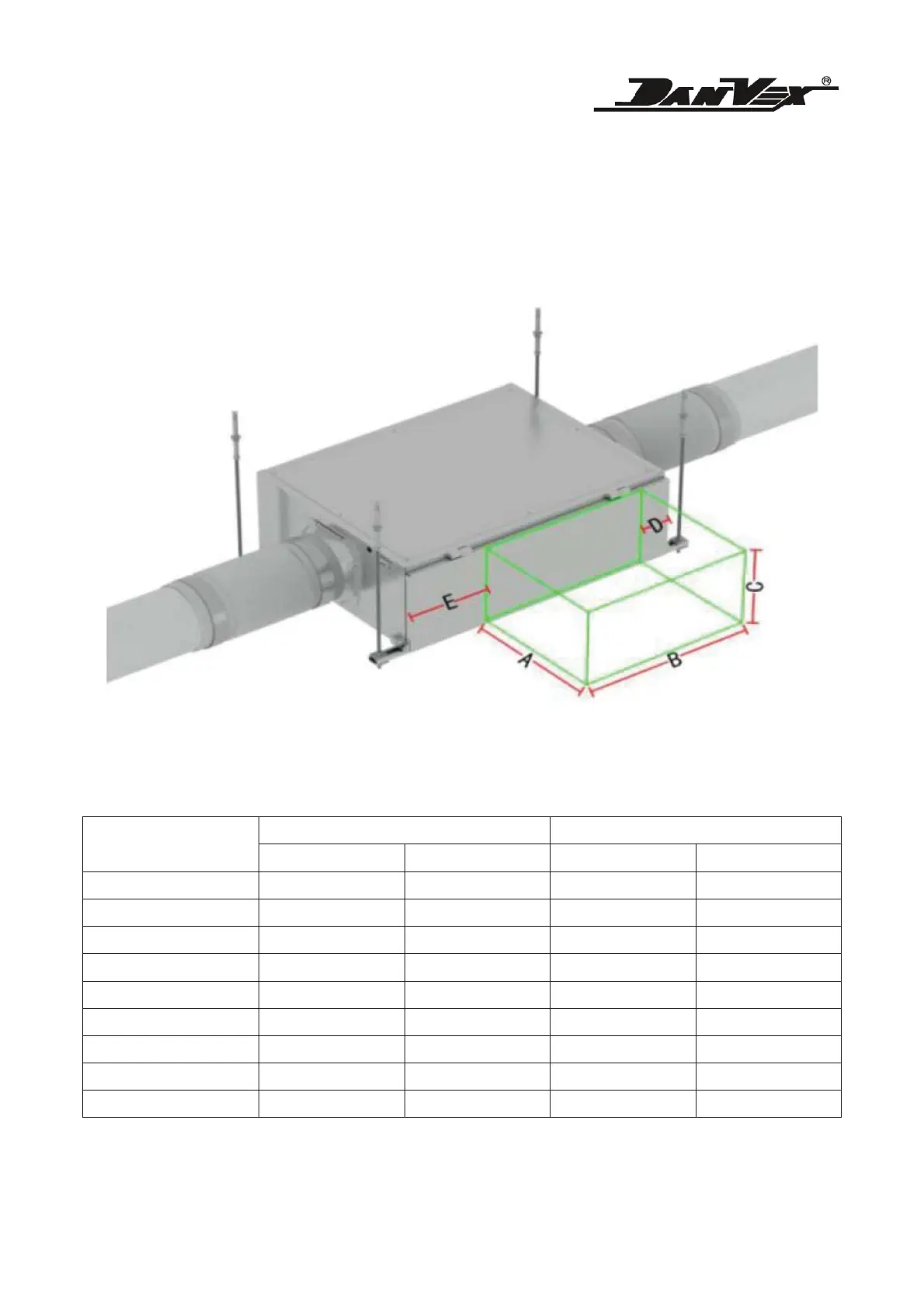

3.9 Service Access Space Allocation
Please allocate the space require as per the table for access to service the unit.
Model
Service Area
Void Area / No Blockage
A
B
E
D
DD -26 / 26F
400mm
490mm
100mm
100mm
DD -36 / 36F
500mm
600mm
100mm
100mm
DD -56 / 56F
500mm
600mm
100mm
100mm
DD -96 / 96F
600mm
650mm
100mm
100mm
DD -136 / 136F
600mm
650mm
100mm
100mm
DD -168 / 168F
500mm
500mm
270mm
100mm
DD -240 / 240F
500mm
500mm
270mm
100mm
DD -480 / 480F
500mm
600mm
370mm
100mm
DD-720/720F/960/960F
500mm
600mm
370mm
100mm
