3.10 Drain pipe connection

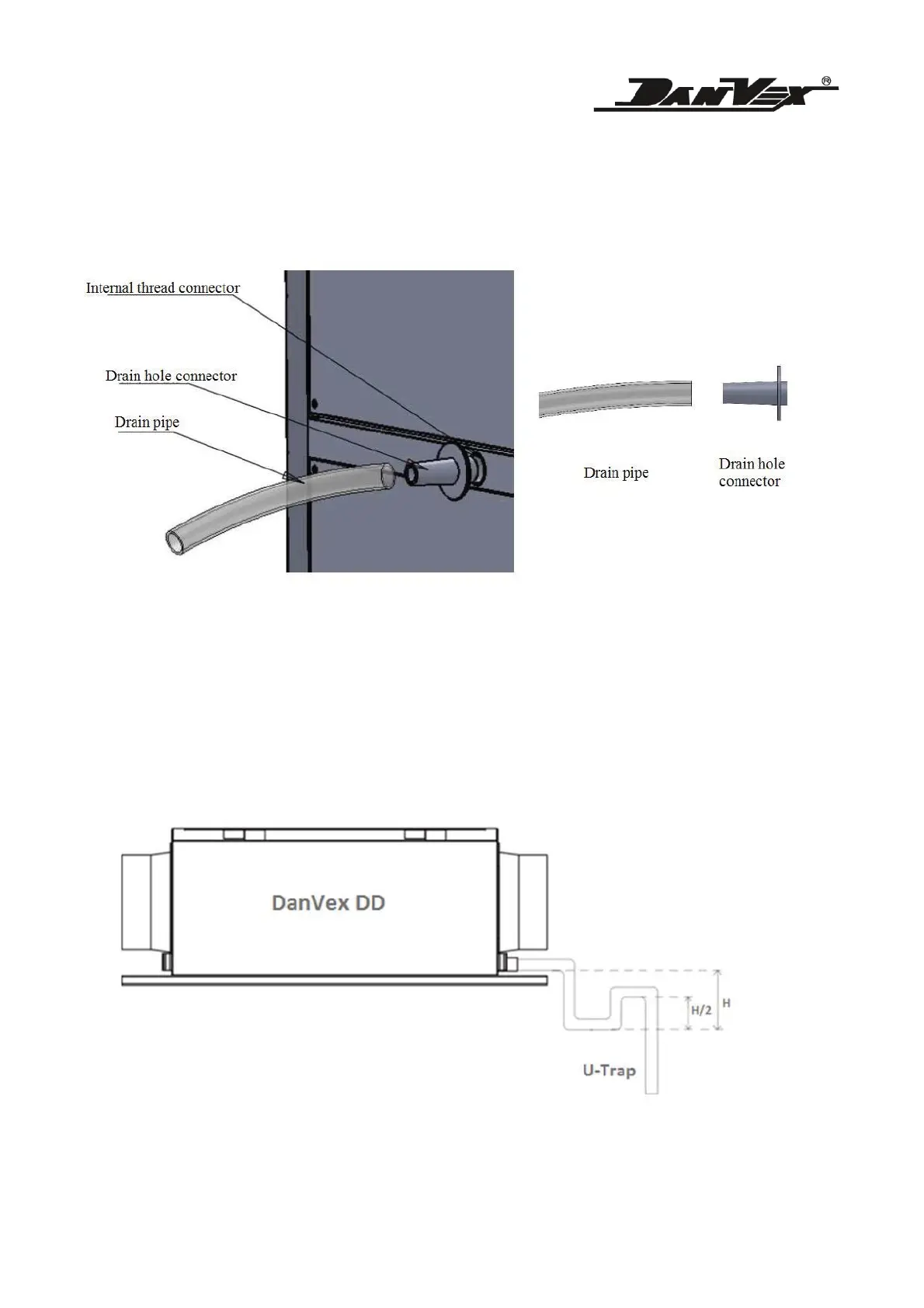

Drain pipe is a transparent hose, please connect it as per the drawing as below:
It is strongly advised to install a U-Trap with PVC pipe or any other pipe that are suitable. This would
help to allow the condensate water flow out smoothly.
