Danville PrepStart - Section 4: Diagrams and Symbols; PrepStart Component Diagrams; Symbol Definitions

4

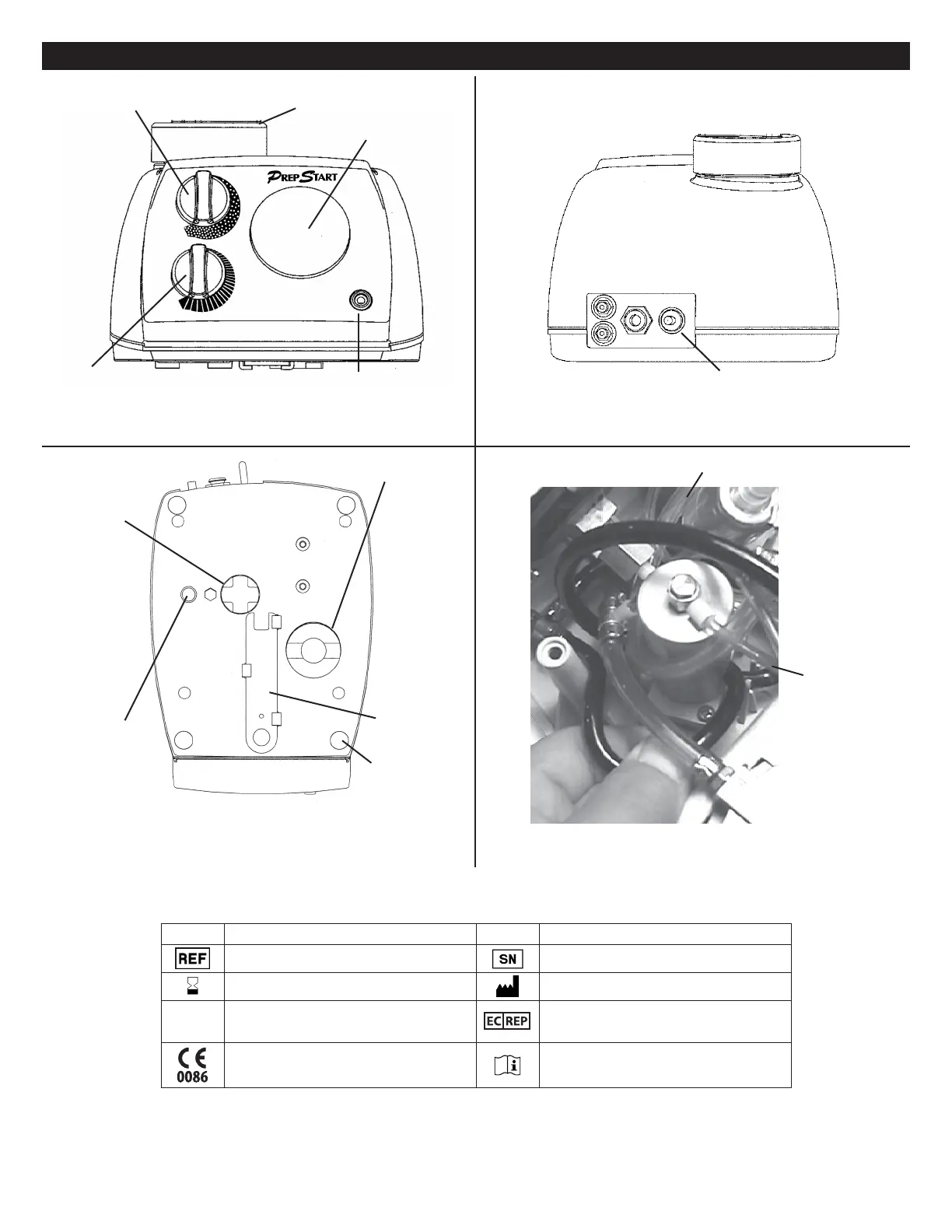

SECTION 4 – DIAGRAMS
POWDER RATE
ADJUSTMENT KNOB
AIR PRESSURE
ADJUSTMENT KNOB
ABRASIVE JAR CAP
PRESSURE GAUGE
HANDPIECE EXIT PORT
Figure 4.1
Front View of PrepStart
AIR
IN
FOOT
SWITCH
POWDER
FILL
PRESSURE ON/OFF
Figure 4.2
Rear View of PrepStart
ABRASIVE
RECOVERY CAP
WATER TRAP
VALVE
DESICCANT CAP
SERVICE
WRENCH
SCREWS (4)
Figure 4.3
Bottom View of PrepStart
PINCH VALVE
PULL TUBE
FROM THIS SIDE
OF PINCH VALVE
7MM.
Figure 4.4
Inside of PrepStart
DEFINITIONS OF SYMBOLS
The following symbols may appear on the product packaging or labeling.
Symbol Denition Symbol Denition
Reference number Serial number
Use by Manufacturer
RxOnly
Caution: Federal law restricts this device to sale by
or on the order of a dentist.
European Community Authorized Representative
European Mark of Conformity Consult instructions for use
