Data Aire gForce GT series User Manual

17
Examples:

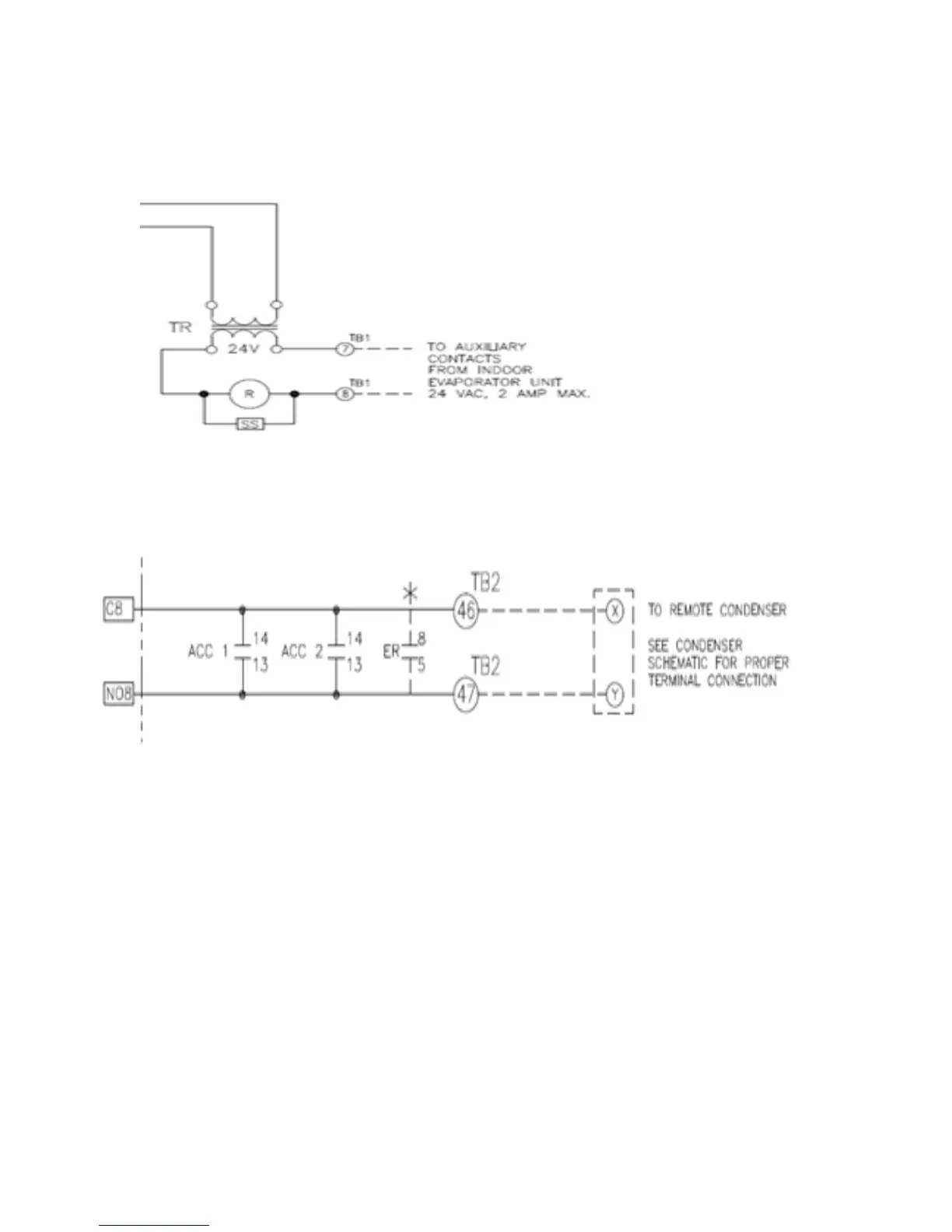

Figure 1 - Typical Remote Heat Exchanger Interconnection Points
Figure 2 - Typical Indoor Evaporator Interconnection Points
3.6 Remote Shutdown
EverygForceunithasremoteshutdowncontacts.Theseareintendedforaeldsupplieddrycon-
tact or switch to be wired across two terminals. When the contactor or switch opens, the control
circuit power is interrupted and the unit shuts down, including the control panel. The control circuit
is24VACandtheeldprovidedcontactorswitchshouldhaveaminimumratingof10amps.
The remote shutdown contacts are always terminals # 1 and # 2 on the terminal block designated
TB1. The unit will ship with factory wired metal jumper clip that connects terminal # 1 to terminal #
2.Removetheclippriortoinstallingtheeldwires.

Data Aire gForce GT series Specifications

General

Brand	Data Aire
Model	gForce GT series
Category	Air Conditioner
Language	English
