EEV Connection November 8, 2016
3.12 Electrical Connection to EEV (Optional Feature)
The Electronic Expansion Valve (EEV) uses an electrical cable assembly with a DIN type
connector to interface with EEV valve stator. The connector is indexed by one large blade
connection so that the connector can only be properly mate one way. When it is necessary to
making this electrical connection, this connector can only properly mate in one position as
shown in the picture below (See Figure 1):

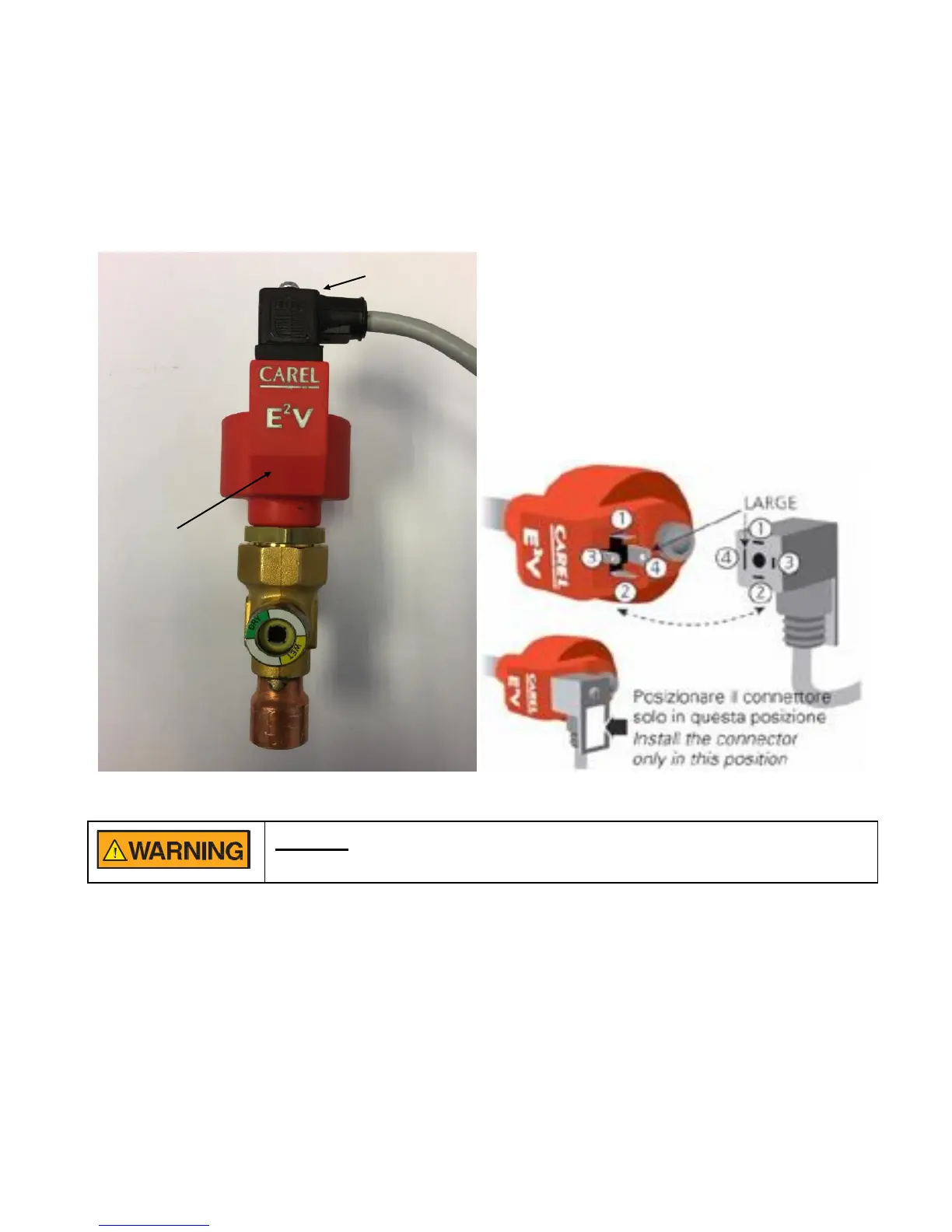

Figure 1 - EEV with Electrical Mating Connector
DO NOT try to mate this connector in any other direction or attempt to use
excessive force to make the electrical connection.
