10 • Mini dap4 User Manual
3.0 ENTERING MENU SETTINGS
3.1 MENU A – ON/OFF
Use the UP or DOWN key to scroll through the menus. Once the desired menu is highlighted, press the ENTER key.
MENU A allows Start-Up Delay Time, Start-Up Mode and ON/OFF to be changed from the factory settings (the Ser-
vice Level password is required for entry).

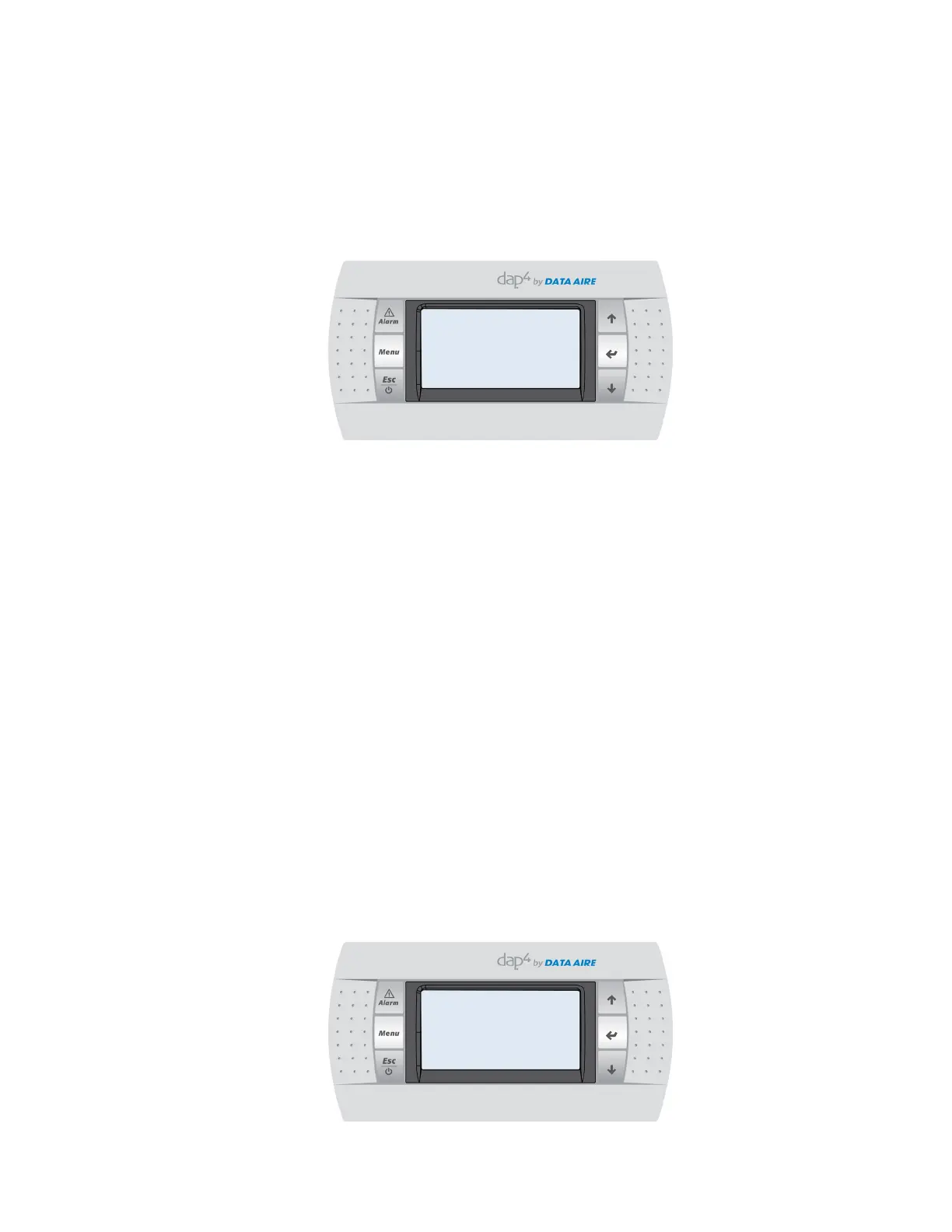

The following will appear on the display screen:
The cursor will be ashing at the upper left hand corner. Press the ENTER key. The cursor will move to the “Start-up
Delay”. The start-up delay is the time before the blower starts after being powered ON and the processor has com-
pleted its self-test. Press either the UP or DOWN button to change the delay time. The range is 5 to 600 seconds.
Once a time is selected, press the ENTER key to save the setting and move to the next line “Start-Up Mode”.
Press the UP or DOWN keys to change the mode from ON to OFF or from OFF to ON. The setting will determine
what the unit will do if power is interrupted. With the setting ON, the unit will automatically start once the self-test is
completed. With the setting OFF, the unit will require manually starting by holding the ESC key for ve (5) seconds.
Depending on which selection is made (ON or OFF), the Status will display – Unit On or Unit Off by Key
Once selections are made, leave MENU A by pressing the MENU key. The Main Menu screen will continue to display
other menus (B, C, E and F). To look at any of these menus scroll to the desired menu. Press the ENTER key. If you
choose to return to the Main Screen, press the ESC key.
3.2 MENU B - SETPOINTS
MENU B allows viewing and changing of Setpoints (Service Level password is required for entry)
Press the UP or DOWN key until “B. Setpoint” appears and is highlighted. Press the ENTER key.
Use the UP or DOWN key to scroll through the screens. Menu B has two screens.
The following will appear on the rst Menu B screen (values are for reference only):
On/Off Unit
Start-up Delay: 5s
Start-up Mode: On
Hold ESC for 5 seconds
to turn unit ON or OFF
Setpoints
Temp Setpoint: 72.0
o
F
Temp Deadband: 2.0
o
F
Stage-To-STAGE: 0.3
o
F
To Next Page
