15 • Mini dap4 User Manual
3.4 MENU D – INPUT/OUTPUT
MENU D is a view only menu allowing the user to view the various input and outputs.
To view, press the Menu key. A prompt for the password will be displayed on the display module. Once the password
is entered, the Main Menu screen will display the various menus. Scroll through the menus using either the UP or
DOWN keys. Move Menu D to the highlighted area and press the ENTER key.

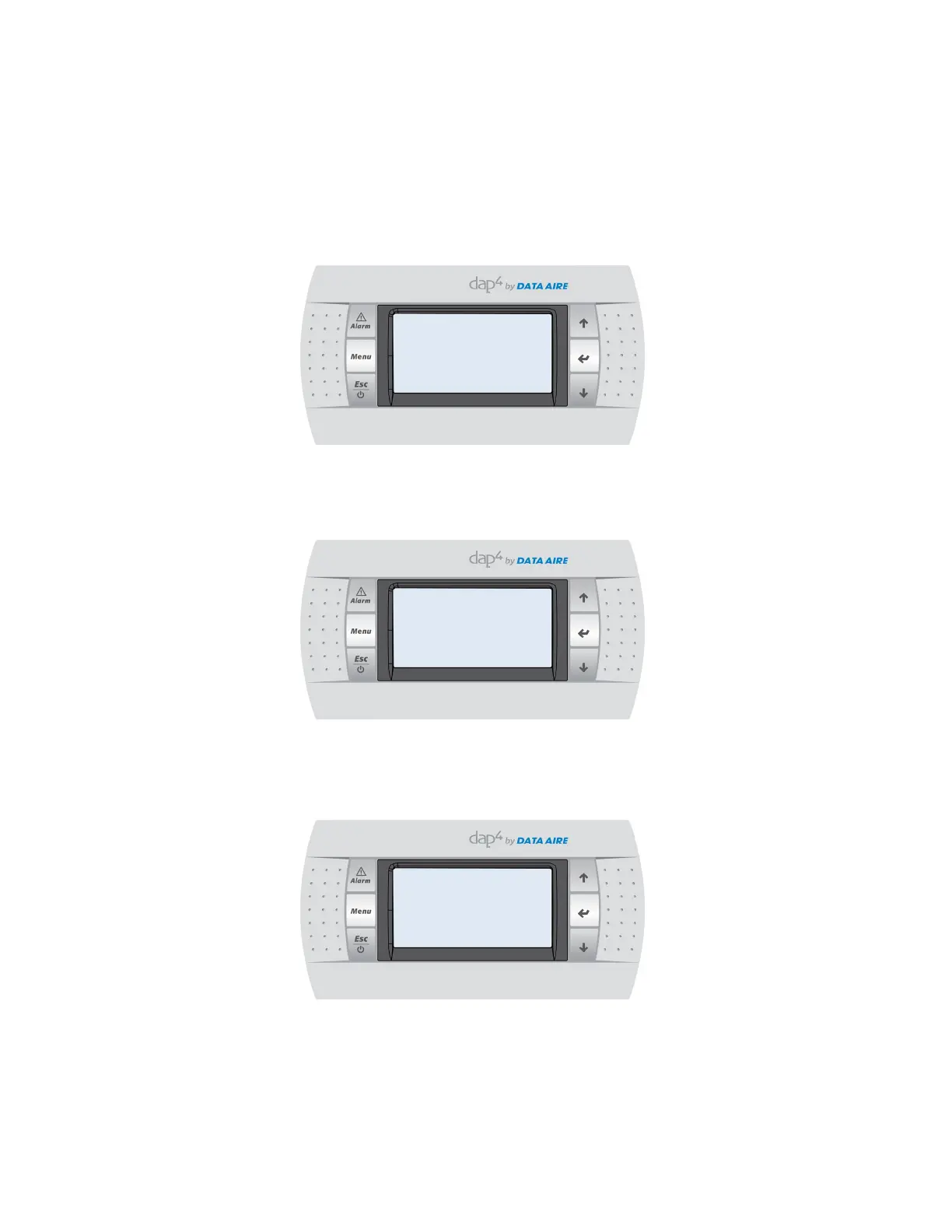

The following will be displayed (values are for reference only):
Digital Inputs
▼ Press the DOWN key to view the next screen.
The following will be displayed (values are for reference only):
▼ Press the DOWN key to view the next screen.
The following will be displayed (values are for reference only):
▼ Press the DOWN key to view the next screen.
Digital Inputs
1 2 5 6 7 8
q = Input is Active
Digital Outputs
q q q 4 5 6 q q
q = Output is Energized
Analog Input
Humidity
Input B02: 44.2
To Next Page
