39 • Mini dap4 User Manual
▼ Press the DOWN key to view the next screen.

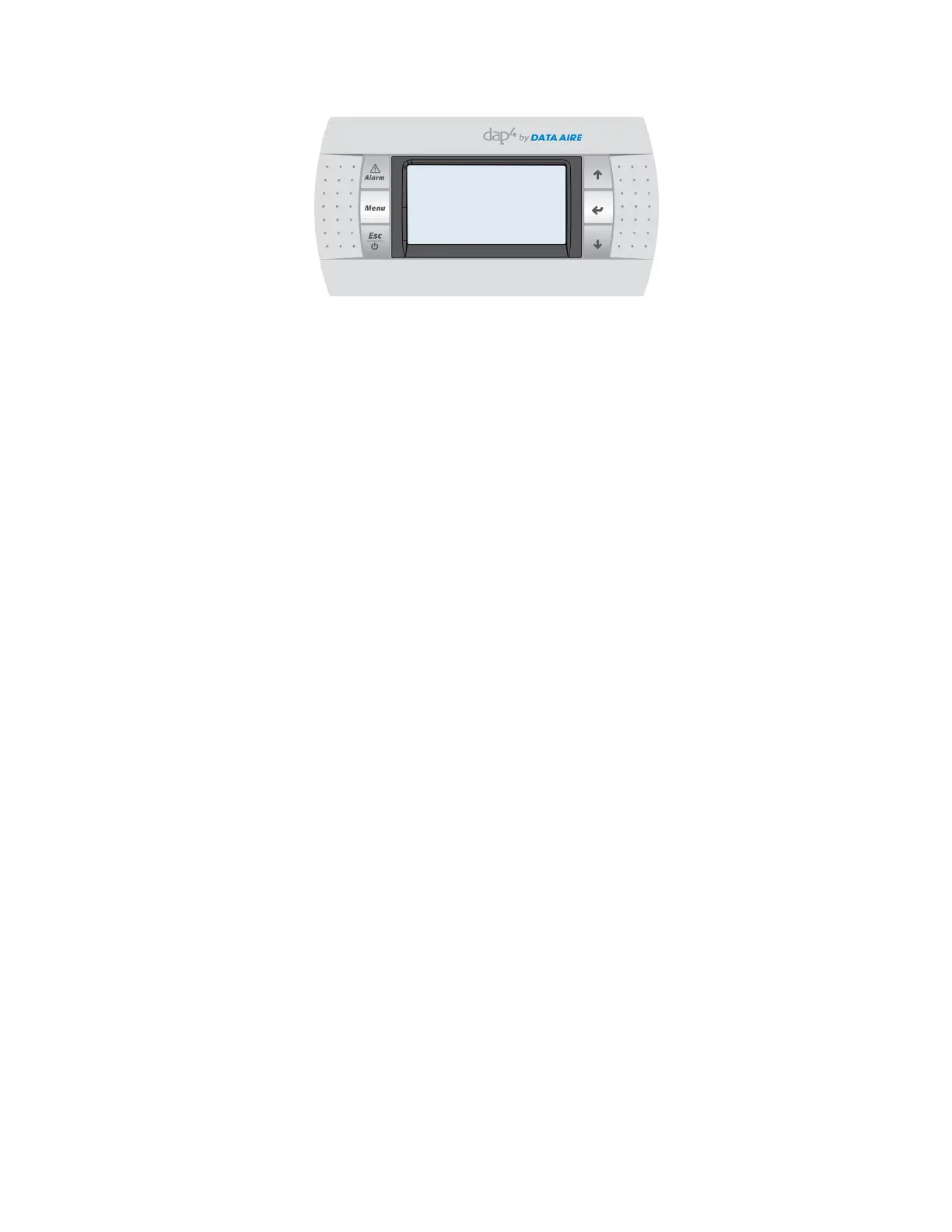

The following will be displayed (values are for reference only):
Move the cursor by pressing the ENTER key. Move the cursor to change the setting.
The following can be changed by pressing the DOWN key:
Channel – there is one (1) selection (Y 2).
There are ve Analog outputs available.
DO NOT ASSIGN THE SAME CHANNEL ON MORE THAN ONE ANALOG OUTPUT.
Action – there are two choices; DIRECT AND REVERSE
Minimum – the range is from 0.0 vdc to 10.0 vdc
Maximum – the range is from 0.0 vdc to 10.0 vdc
Once a selection or selections have been made, move the cursor to the title block by pressing the ENTER key.
To Exit Menu L – Congure I/O, with the cursor in the title block, press the Menu key. The screen will display the
Menus.
▼ Press the ESC key to return to the normal operating mode.
Analog Output
Chilled Water Valve
Channel: Y2
Action: DIRECT
Minimum: 0.0vdc
Maximum: 0.0vdc
To Next Page
