A-6 SD460 Laminating System

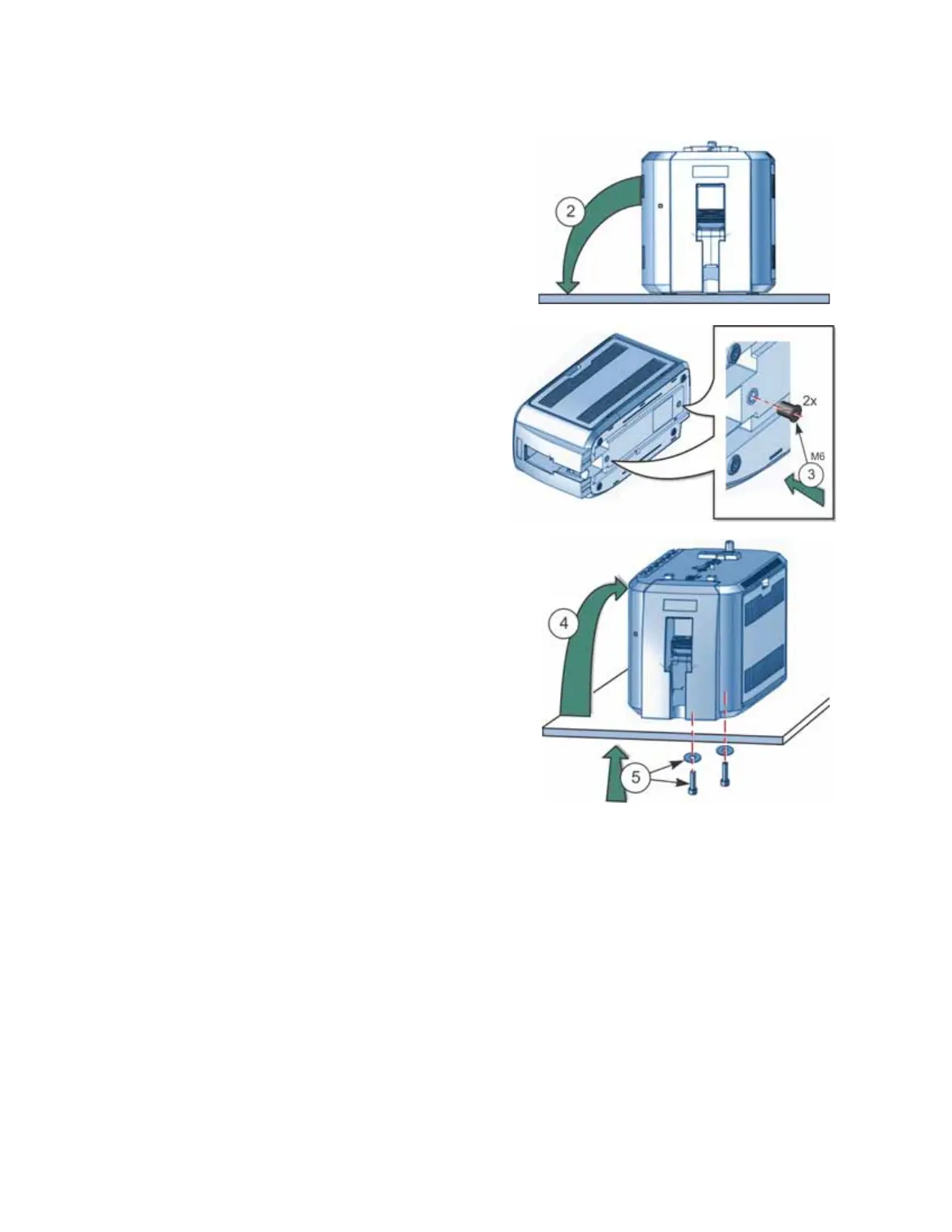

2. Carefully tip the laminator onto its left side (the
side without the access door).
3. Insert the M6 well nut threaded inserts into
the bolt-down openings on the bottom of
the laminator.
4. Return the laminator to its upright position
and position it over the holes that are drilled in
the mounting surface.
5. Secure the laminator to the mounting surface.
a. Place a flat washer on each of the screws
beneath the mounting surface.
b. Insert the M6 screws through the holes in
the mounting surface and into the well nuts
in the bottom of the laminator.
c. Tighten the screws securely.
