DM4380 – Installation Guide
Installing and Removing
QSFP28/QSFP+/SFP/SFP+ Modules
204.4336.00 - October/2019
29
5.2 REMOVING SFP+/SFP MODULES
To remove the modules, simply follow the installation instructions in reverse order.
Follow the same procedure for copper SFP and copper SFP+ Twin-Ax cables:
Step 1
 Remove the optical cables.
Step 2
 Lower the securing handle.
Step 3
 Pull the module by the handle, as shown in the following figure.

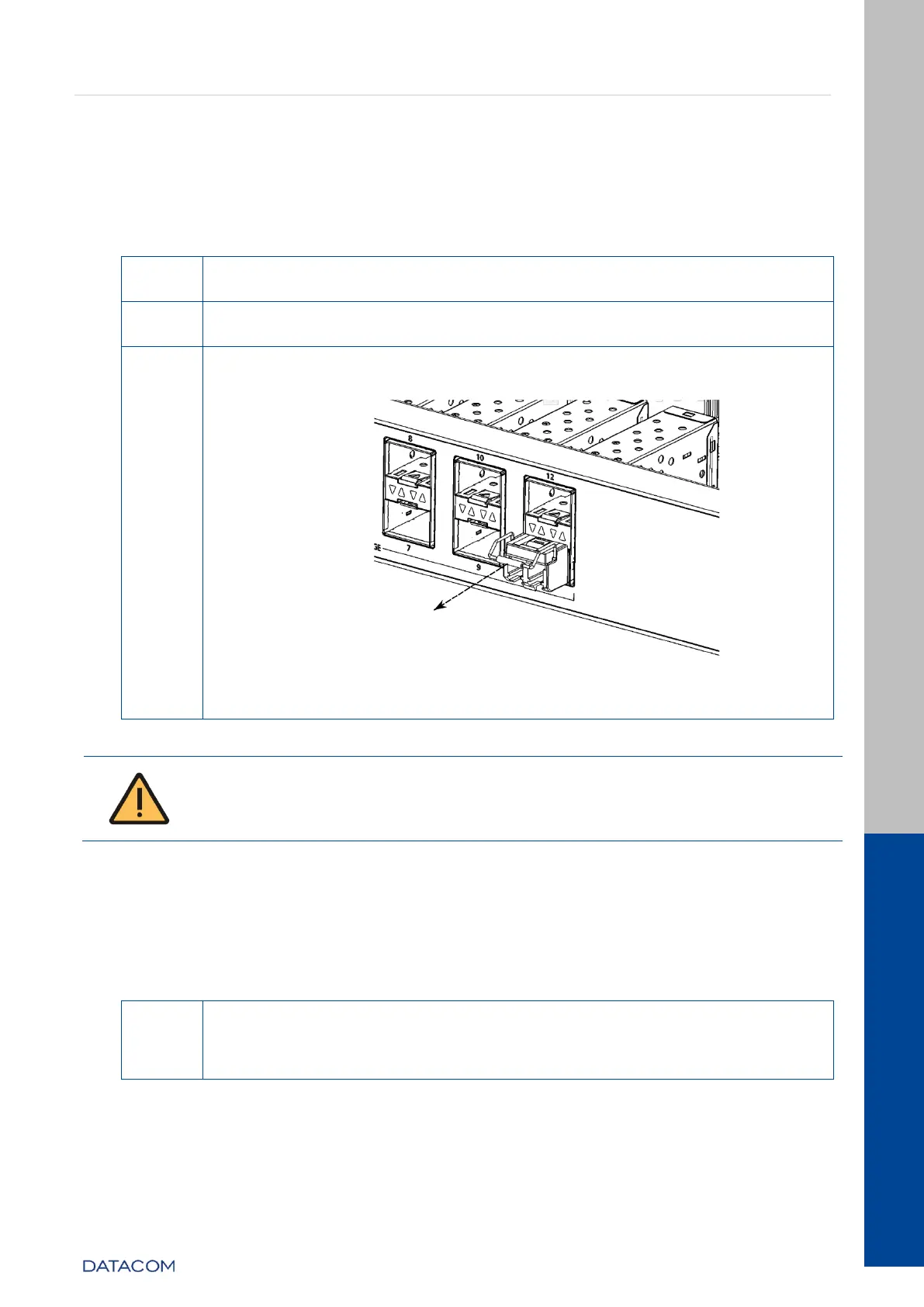

Figure 22 – Removing a SFP/SFP+
Table 13 – Removing a SFP+/SFP
When DM4380 operates over 45ºC ambient temperature it is
recommended to use only SFP/SFP+ industrial temperature class
transceivers. Contact the Technical Support for any doubt.
5.3 INSTALLING THE QSFP28/QSFP+ MODULES
The QSFP28/QSFP+ installation is conducted as shown on following steps. Follow the
same procedure for DAC and breakout cables:
Step 1
Insert the module into the transceiver slot of the equipment and
pushing it until it is firmly held. The correct position of the
attachment can be seen in figure 23.
