Chapter 2. Technical Specification
Rec. Voltage Limits Power Type Freq. Power max. Current max.
min. max.
48V 60V DC - 60W 1,5A
100V 240V AC 50/60Hz 60W 0,6A
The limits of the table bellow can not be exceeded in any hypothesis.
Table 2-2. Absolute Power Limits
Absolute Voltage Limits Power Type Freq. Power max. Current max.
min. max.
36V 72V DC - 60W 2,5A
90V 264V AC 50/60Hz 60W 1,0A

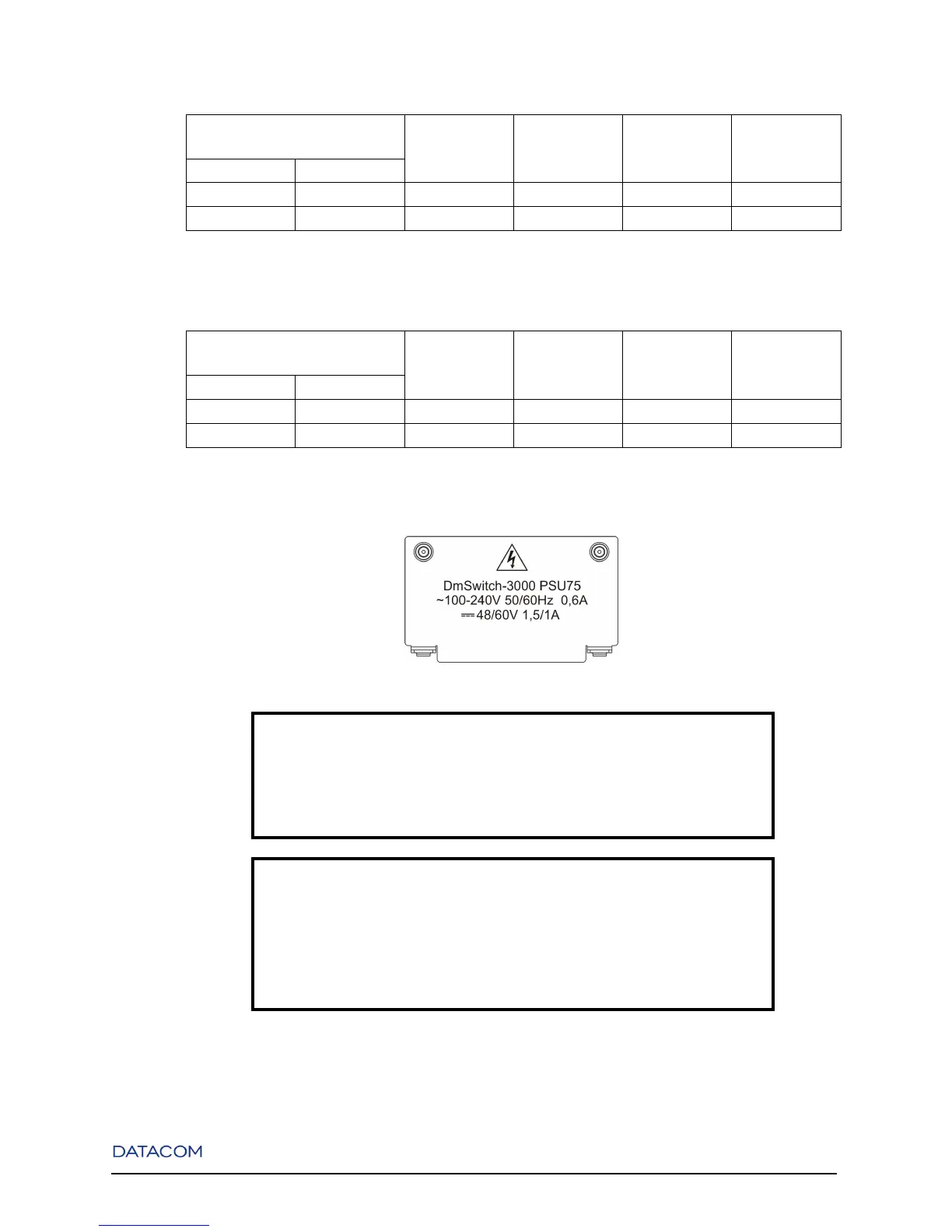

Figure 2-2. Power Supply Rear Panel
Warning
The plug is the disconnection device on the equipment. The socket outlet, where
the supply cable is connected, must be positioned near the equipment and have
easy access.
Warning
In case of using DC voltage, be careful so that the equipment protection earth cable
(green cable with yellow line related to the central socket pin) matches the system
protection earth cable. This cable must be connected before any other connection.
The metallic structure of the equipment is connected to the protection earth cable.
12
