Chapter 3. Switch Installation

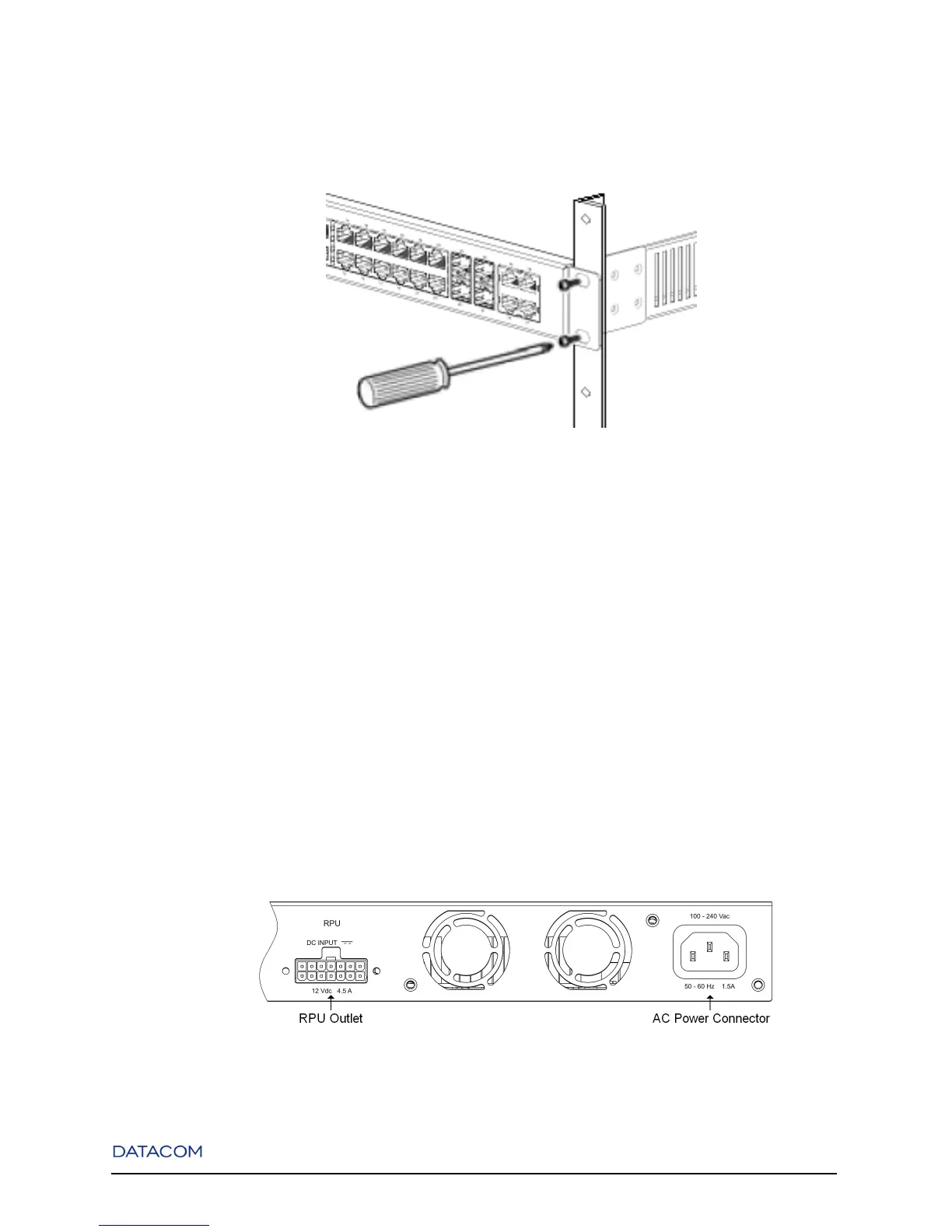

Figure 3-1. Rack Mounting
1. Place the switch in the rack.
2. Insert two screws (not provided) on each bracket to secure the switch in the rack.
3.5. Powering the Switch
After installing the switch, plug one end of a IEC-320 standard power cable into the AC receptacle located
at the rear panel of the switch and the other end into the local power source outlet. The Power LED should
light, indicating the switch is correctly powered.
In the DmSwitch F1 version, you can choose to suply the switch with a RPU. To do so, connect the RPU
into the RPU outlet located at the rear panel of the switch.
Figure 3-2. DmSwitch F1 Power Connectors
16
