Ethernet Connection
Use the single dock to build a reading system for the collection,
decoding and transmission of barcoded data.
Ethernet Dock Connection
1. Connect the single dock to the power supply.
2. Use the slide switch on the dock to select the ethernet
connection.
3. Plug a CAT-5 ethernet cable into the ethernet port on the back
of the dock.
4. Plug the ethernet cable into the ethernet hub or a port on the
host device.
5. Insert the DL-Axist into the dock.
* Recommended use
WARNING
Do not use the cradle in a PoE network, i.e. in a network
with PSE able to supply power: there is the risk to
compromise, in irreversible way, the functionality of the
cradle.

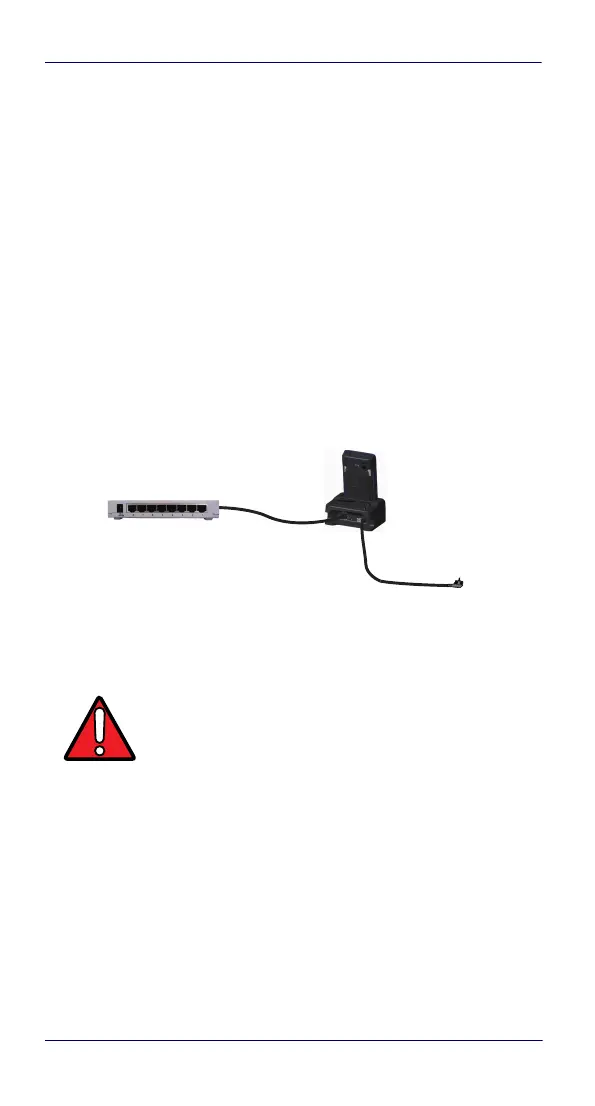

Ethernet Hub
DL-Axist
Single Slot
Dock
UTP CAT 5E Cable*
Power Supply
