Data Capture
The DL-Axist has an integrated imager that collects data by
scanning barcodes.
Refer to the "Scanner Settings" section of the DL-Axist User’s
Manual for instructions on configuring the scanner settings.
Imager Data Capture
The imager uses digital camera technology to take a digital picture of
a barcode, the image is stored in memory and software decoding
algorithms are executed to extract the data from the image.

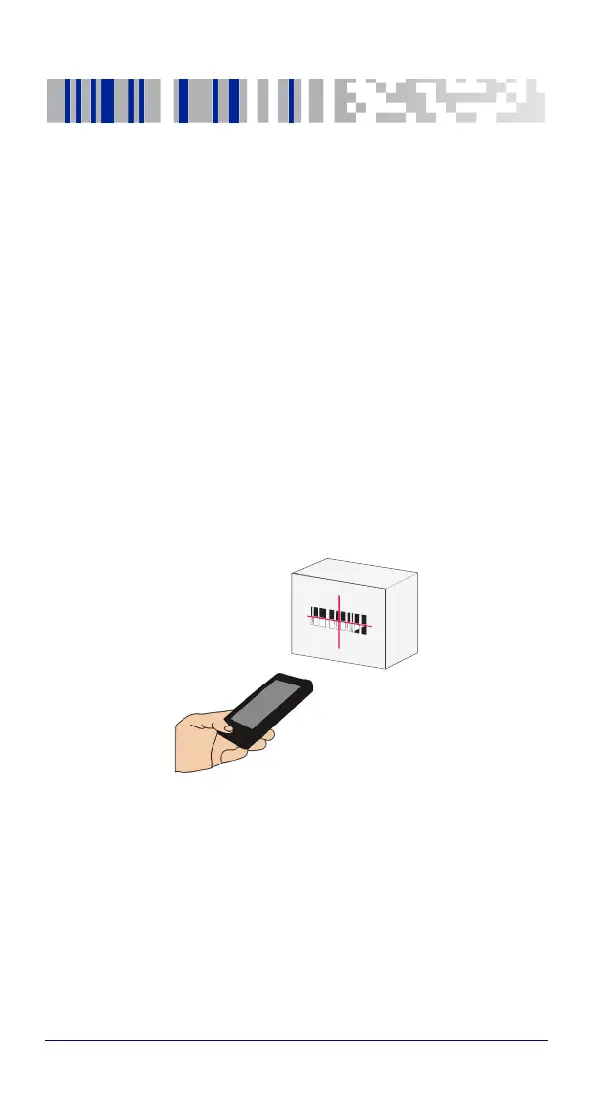

To scan a barcode symbol:
1. Point the scan window at the barcode.
2. Tap Scan on the screen or press one of the scan buttons on the
DL-Axist. The imager projects a laser aiming pattern similar to
those used on cameras. The aiming pattern is used to position
the barcode or object within the field of view.
3. Center the symbol in any orientation within the aiming pattern.
Ensure the entire symbol is within the rectangular area formed
by the brackets in the aiming pattern, then either wait for the
timeout or release the scan key to capture the image. A red
beam illuminates the symbol, which is captured and decoded.
