Datalogic Applications
User’s Manual 135

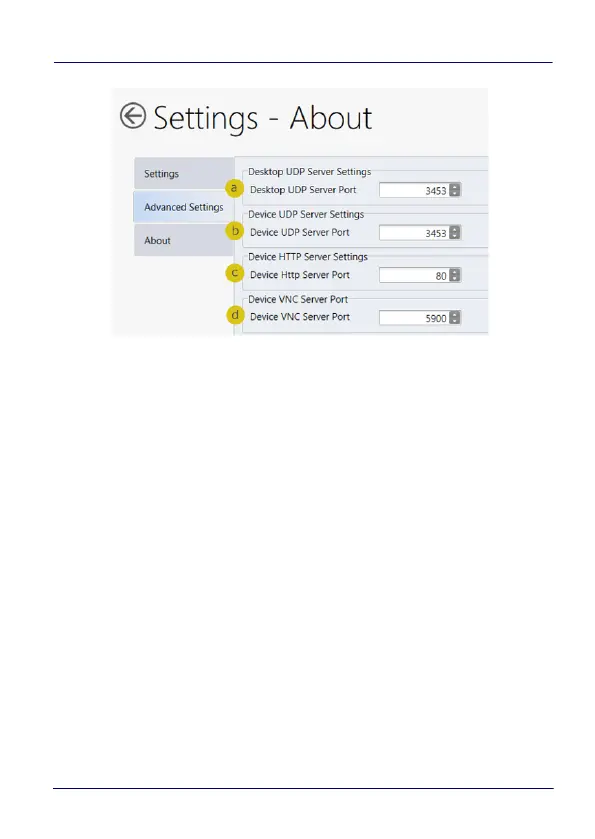

3. Edit the port values to match the ports used by DXU Agent on
your devices:
a. The “Desktop UDP Server Port” configures the UDP port for
the DXU server running on the on the console PC. It is set to
UDP port 3453 by default.
b. The “Device UDP Server Port” configures the UDP port for
the DXU Agent server running on the device. It is set to UDP
port 3453 by default.
c. The “Device HTTP Server Port” configures the TCP port for
the DXU Agent server running on the device. It is set to TCP
port 80 by default, like common web servers.
d. The “Device VNC Server Port” configures the TCP port for
VNC running on the device. It is set to TCP port 5900, like
common VNC servers.
4. Click the Back button (a leftward pointing arrow in a circle to
return to DXU’s main view).
