DS2 Ethernet Instruction Manual
8

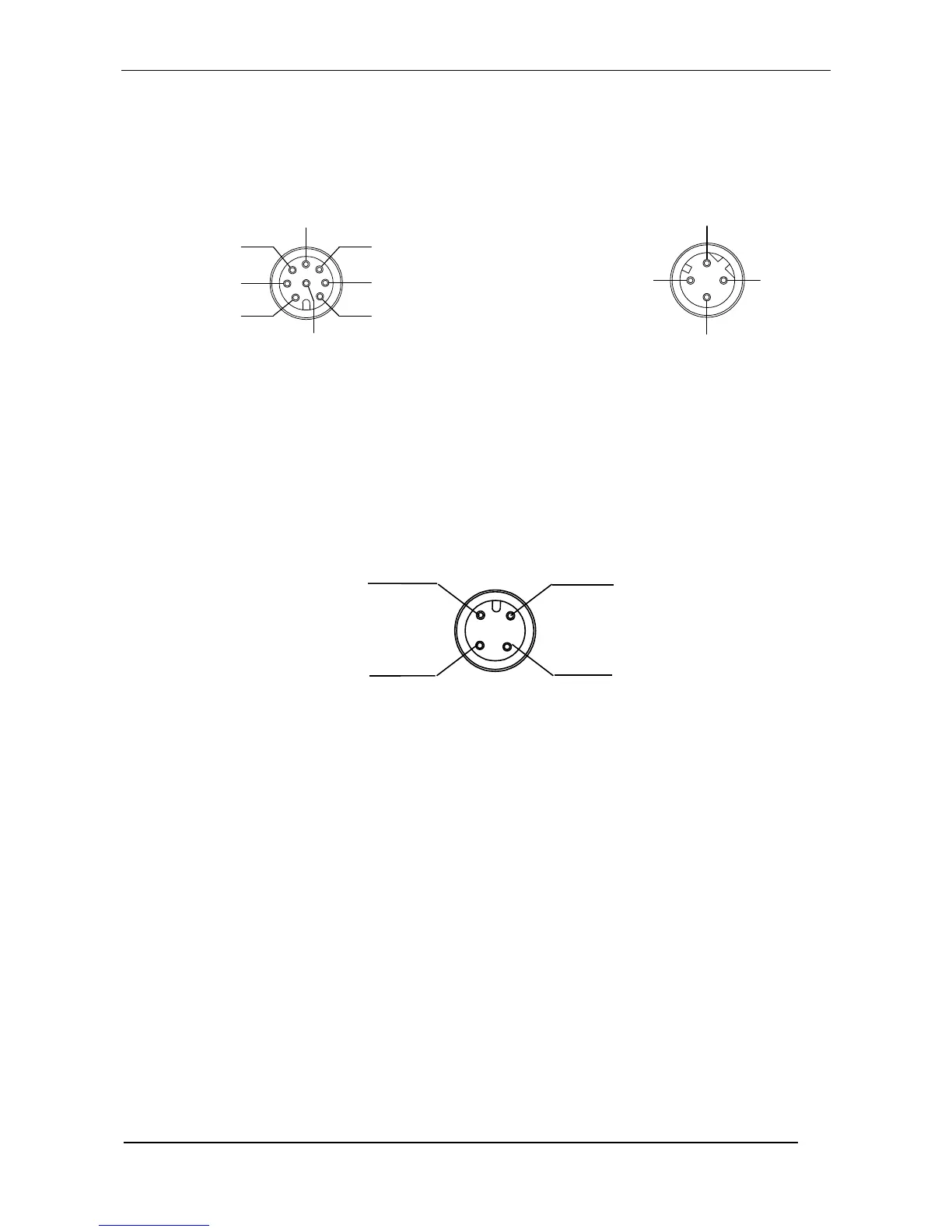

4. ELECTRICAL CONNECTIONS
The electrical connection between the emitting and receiving units is made through a male M12
connector located in the lower part of the light grid.
RICEIVER (RX)
1
2
3
4
RX+
TX+
TX-
RX-
1 = white = AUX 2
2 = brown = +VDC
3 = green = ANALOGUE OUT
4 = yellow = SWITCHING OUTPUT
5 = grey = OUT HOLD / OUT ENABLE
6 = pink = AUX 1
7 = blue = GND
8 = red = SYNC
1 = brown = RX +
2 = white = TX -
3 = blue = RX -
4 = black = TX +
EMITTER (TX)
3
4
2
1
NOT USED
GND
+VDC
SYNC
1 = brown = +VDC
2 = white = NOT USED
3 = blue = GND
4 = black = SYNC
1
7
6
5
4
3
2
8
SWITCHING OUTPUT
ANALOGUE OUTPUT
+ VDC
SYNC
GND
AUX 2
AUX 1
OUTPUT HOLD /
OUTPUT ENABLE
