DS6300 COMMON FEATURES
26

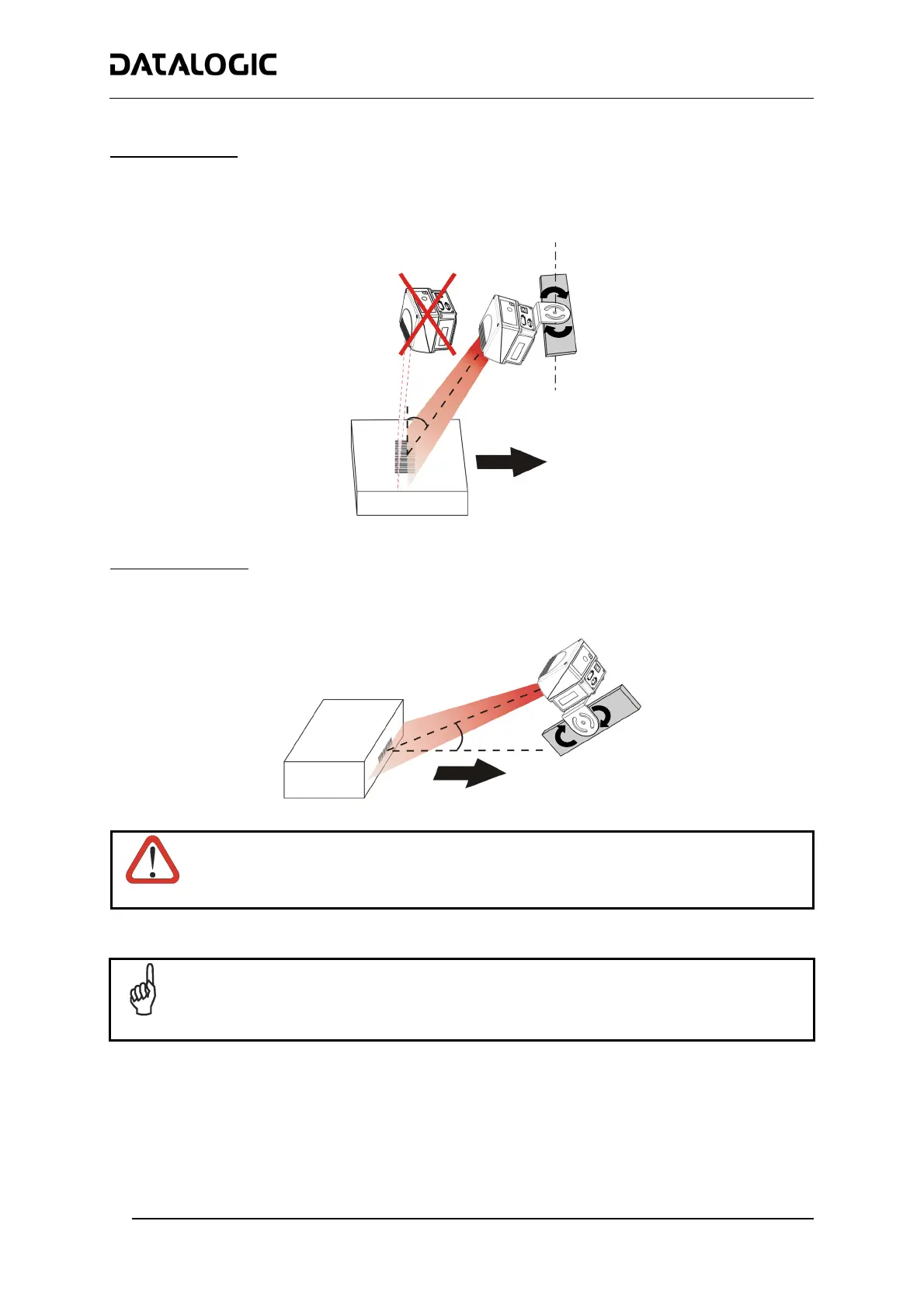

Typical Installations:
Standard Installation
The DS6300 scanner is mounted on the ST-237 106° mounting bracket which guarantees a built-in Skew angle
(S in the figure below) of 16° with respect to the frame plane (typically the Skew angle should be between
10° - 20°). This avoids the direct reflection of the laser light emitted by the scanner. Furthermore, the bracket
guides allow adjusting the Tilt angle (T in the figure below, which is typically 0°) for the best scanner orientation:
“45° Skew” Installation
The DS6300 scanner is mounted on the ST-210 90° mounting bracket. By adjusting the mounting bracket guides,
reach 45° for the Skew angle (S in the figure below) to avoid the direct reflection of the laser light emitted by the
scanner:
ATTENTION
If using the “45° Skew” installation, it is not guaranteed that the scanner reading performances
(see reading diagram section) will match those measured for the standard installation with
Skew angle between 10° - 20°.
NOTE
The ST-210 mounting bracket is an accessory of the DS6300 standard model available in the
US-60 kit (order no. 890001020).
T
Conveyor Direction
S
45°
S
