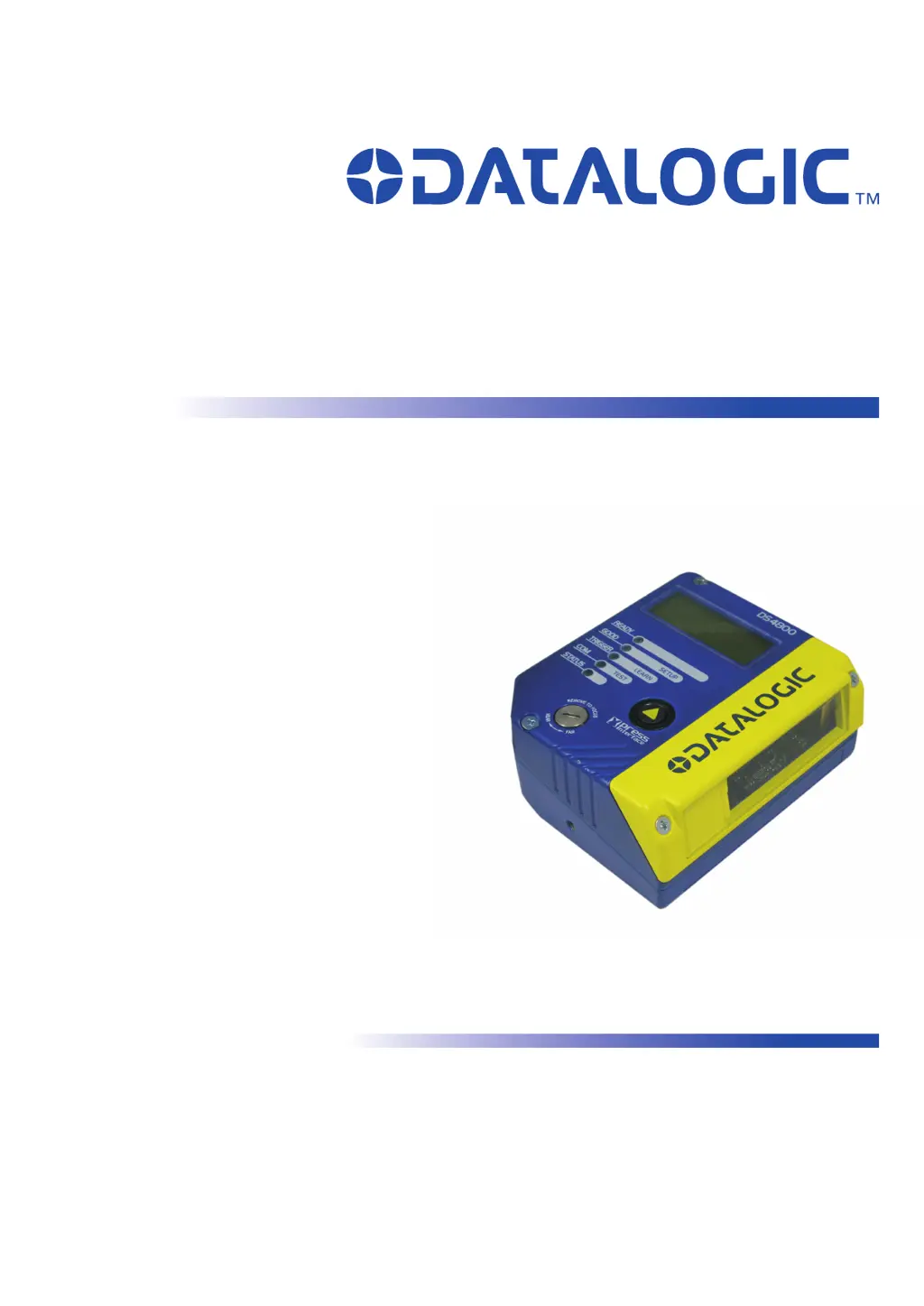

Datalogic DS4800 - User Manual

Other manuals for Datalogic DS4800

Quick Reference Guide15 pages

Questions and Answers

J
James BrownAug 14, 2025
What to do if Datalogic DS4800 Barcode Reader cannot read target barcode?
- R
  randall27Aug 15, 2025
  If your Datalogic Barcode Reader is consistently unable to read barcodes and returns 'No Read', ensure the scan line is correctly positioned and the barcode is centered. Use the Test mode in Genius™ to check the alignment. Also, verify that the reading distance is within the specified range, the tilt angle is appropriate, and the skew angle is less than 15° for direct reflection. Enable various Code Symbologies (excluding Pharmacode) with variable Min and Max lengths in the Code Definition settings. Finally, check the barcode quality. If issues persist, test with the BARCODE TEST CHART included with the product.
T
Thomas KirbyAug 18, 2025
What to do if Datalogic DS4800 Barcode Reader trigger LED is on but no reading?
- J
  John BowenAug 18, 2025
  If the TRIGGER LED on your Datalogic Barcode Reader is lit in On line Mode, but no reading results occur, ensure that the software configuration is consistent with the application condition and operating mode. Use the Genius™ program, select the Operating Mode branch, and check the related parameters.
R
rgoodwinAug 21, 2025
Why is Datalogic DS4800 Barcode Reader transmitting incorrect data?
- C
  Curtis BallardAug 21, 2025
  If data transferred from your Datalogic Barcode Reader to the host is incorrect, corrupted, or incomplete, use the Genius™ program to check the Header, Separators, and Terminator values in the Data Communication Settings/Data Format/Standard Parameters branch. Also, verify the Code Field Length and Fill Character values. Ensure that the COM port parameters are correctly assigned.
M
Michael MendezAug 25, 2025
How to troubleshoot Datalogic DS4800 Barcode Reader when power LED is off?
- R
  robyn20Aug 25, 2025
  If the “Power On”/”Ready” LED on your Datalogic Barcode Reader is not lit, check the power connection. If using a power adapter (like PG 6000), ensure it is connected to a wall outlet. If using rail power, verify the rail has power. If using CBX100, check that it has power by checking the switch and LED. Measure the voltage at pin 13 and pin 25 (for a 25-pin connector) or at the spring clamp Vdc and GND (for CBX).
C
Carrie KellerAug 28, 2025
Why is my Datalogic Barcode Reader not transmitting to the host?
- B
  Benjamin KhanAug 28, 2025
  If your Datalogic Barcode Reader is not transmitting data to the host, ensure the serial cable is connected and the wiring is correct. Verify that the serial host settings match the serial device settings. If using CBX, make sure the RS485 termination switch is set to OFF.
P
ponceveronicaAug 31, 2025
Why Datalogic DS4800 Barcode Reader is not triggered in Serial On line Mode?
- L
  laura35Aug 31, 2025
  If the Datalogic Barcode Reader is not triggered in Serial On line Mode and no reading results occur, use the Genius™ program to check if Serial On Line is selected in the On Line Options within the Operating Mode branch. Verify that the Start – Stop characters are correctly assigned and that the serial trigger source is correctly connected and configured.
M
Mary GarciaSep 3, 2025
How to fix Datalogic DS4800 Barcode Reader trigger LED not lit in On line Mode?
- G
  garciapaulSep 3, 2025
  If the TRIGGER LED is not lit on your Datalogic Barcode Reader in On line Mode when the external trigger is activated, check if the sensor is connected to the I1A, I1B spring clamps (for CBX) or to pins 18 and 19 (for the 25-pin connector). Verify that power is supplied to the photo sensor and that the photo sensor LEDs (if any) are working correctly. Ensure the sensor/reflector system is aligned.
N
Nathan PotterSep 7, 2025
What to do if Datalogic DS4800 Barcode Reader doesn't respond to external signals?
- J
  Johnny BurkeSep 7, 2025
  If your Datalogic Barcode Reader does not respond correctly to expected external signals in On line Mode and Serial On Line, use the Genius™ program and select the Operating Mode branch to check the Reading Phase Timeout parameterization.
A
Anna RobinsonSep 10, 2025
Why Datalogic DS4800 always returns Reader Failure Character?
- J
  Jasmine NewtonSep 12, 2025
  Contact your local Datalogic office or Datalogic Partner or ARC, because either a Motor or Laser failure has occurred. Note the exact model and Serial Number of the device.

Summary

SAFETY REGULATIONS

Laser Safety

Critical safety guidelines for operating the laser scanner and avoiding hazards.

RAPID CONFIGURATION

Connect System

Instructions for connecting the scanner to a system in a stand-alone configuration.

Mount and Position Scanner

Guidance on physically mounting and orienting the scanner for optimal reading.

Focus Scanner

Procedure to adjust the scanner's focus for accurate barcode reading.

X-PRESS rade Configuration

Overview of the X-PRESS interface for scanner setup and status indication.

Install Genius rade Configuration Program

Steps to install and use the Genius software for scanner configuration.

Test Mode Operation

INSTALLATION

Mechanical Installation

Scanner Positioning

CBX ELECTRICAL CONNECTIONS

Power Supply via CBX

Main Serial Interface via CBX

ID-NET rade Interface via CBX

25-PIN CABLE ELECTRICAL CONNECTIONS

Power Supply via 25-Pin Connector

Main Serial Interface via 25-Pin Connector

READING FEATURES

Advanced Code Reconstruction (ACR rade 4)

Explanation of ACR4 technology for improved barcode reconstruction.

Linear Code Reading Modes

Performance Metrics

TROUBLESHOOTING

General Troubleshooting Guidelines

General advice and steps for troubleshooting scanner issues.

Datalogic DS4800 Specifications

General

Scanning Technology	Laser
Protection Class	IP65
Power Consumption	1.5 W
Current Consumption	300 mA
Type	Handheld
Light Source	Laser Diode
Optical Resolution	0.1 mm
Resolution	0.1 mm
Interface	RS-232, USB, Keyboard Wedge
Operating Temperature	0 to 50 °C / 32 to 122 °F
Storage Temperature	-20 °C to 60 °C
Humidity	5% to 95% (non-condensing)
Drop Specification	1.5 m
Electrical Safety	EN 60950-1
EMC	EN 55022, EN 55024
Power Supply	5 VDC
Voltage	5 VDC
