Datalogic DS4800 User Manual

RAPID CONFIGURATION
1
STEP 6 – TEST MODE
Use a code suitable to your application to test the system. Alternatively, you can use the
Datalogic Test Chart (Code 128).
1. Enter the Test mode function by holding the X-PRESS™ push button pressed until the
TEST LED is on.
2. Release the button to enter the Test mode function.
Once entered, the Bar-Graph on the five LEDs is activated and if the scanner starts
reading barcodes the Bar-Graph shows the Good Read Rate. In case of no read
condition, only the STATUS LED is on and blinks.
green
green
yellow
yellow
red
READY
GOOD
T
RIGGER
COM
STATUS
SETUP
LEARN
T
EST

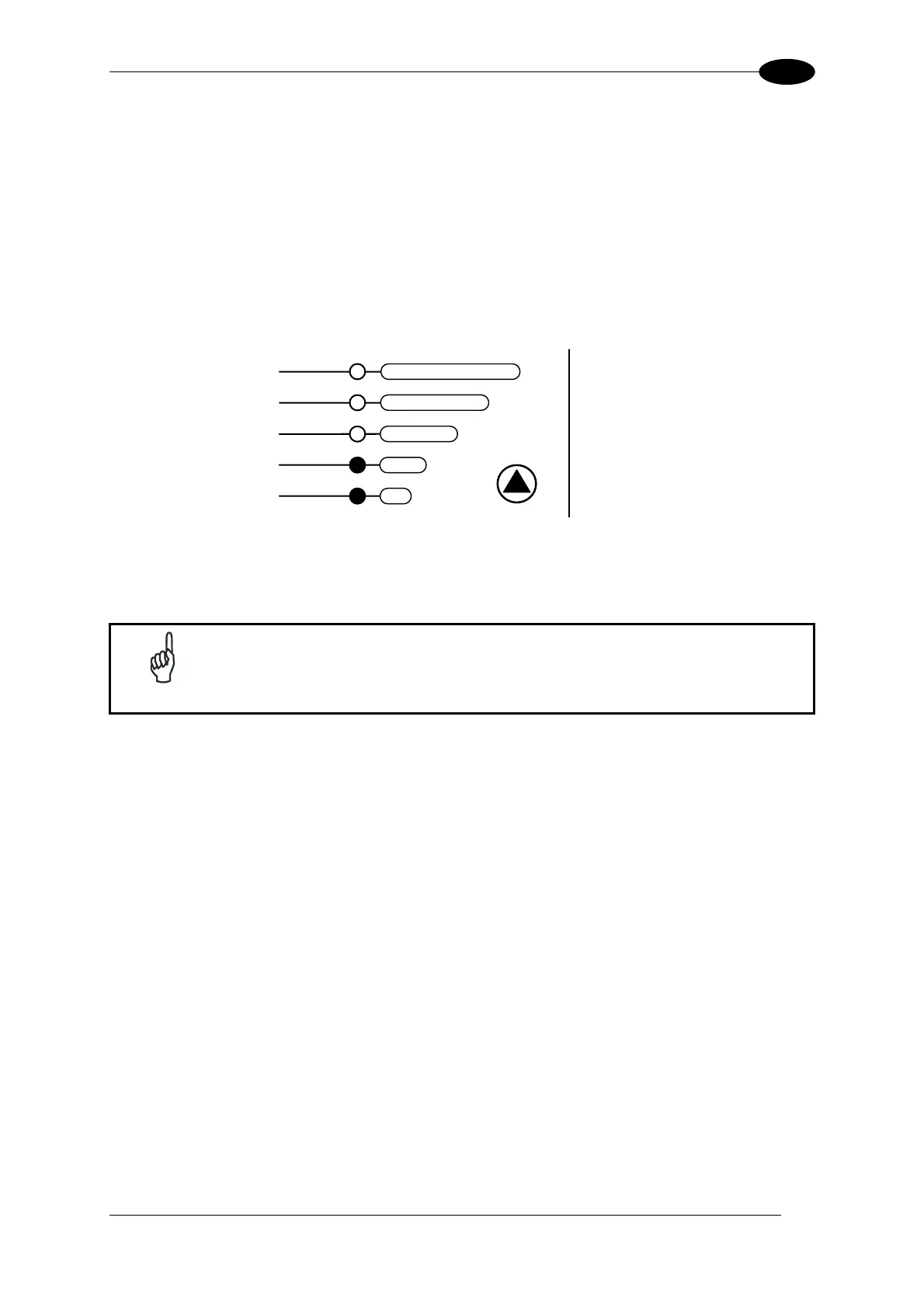

Figure 10 – X-PRESS™ Interface: Test Mode Function
3. To exit the Test Mode, press the X-PRESS™ push button once.
NOTE
By default, the Test Mode exits automatically after two minutes.
15
