DS4800 REFERENCE MANUAL
1
STEP 2 – MOUNT AND POSITION THE SCANNER
1. To mount the DS4800, use the mounting bracket to obtain the most suitable position for
the reader as shown in the figures below.
Pitch
-45°-15°15° 45°
Ske
w

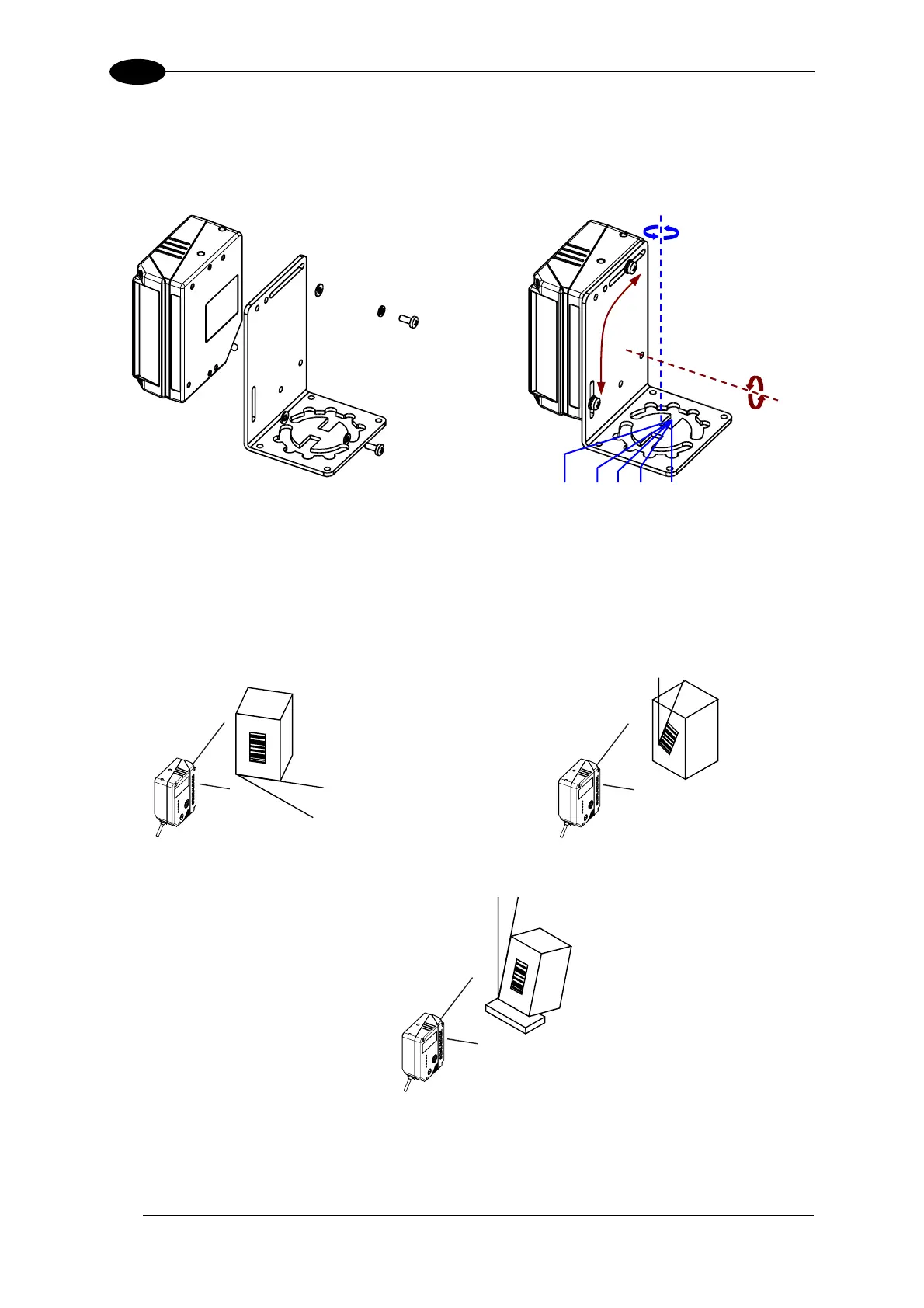

Figure 3 - Positioning with Mounting Bracket
2. When mounting the DS4800 take into consideration these three ideal label position angles:
Skew 15° to 30°, Tilt 0° and Pitch 0°.
Assure at least 1 Minimize
T
S
Figure 4 –Skew and Tilt Angles
P
Minimize
Figure 5 – Pitch Angle
3. Refer to the Reading Diagrams in par. 7.4 to decide the distance your scanner should be
positioned at.
