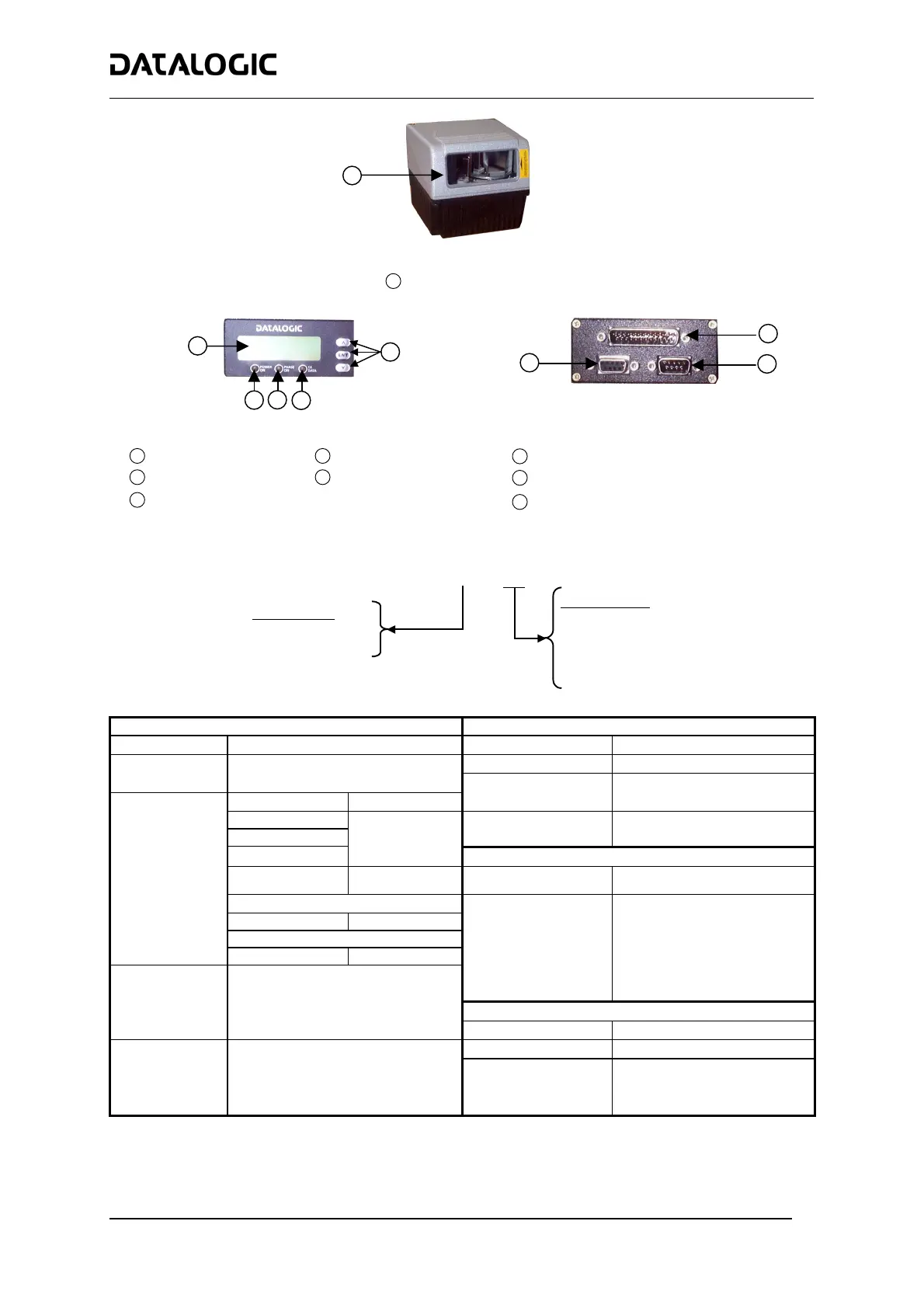

Datalogic DS6300 Installation Quick Reference

DS6300 MASTER/SLAVE
1
Figure A
Laser Beam Output Window
1
Figure B
Programming Keypad
1
Phase On LED (Yellow)
3
TX Data LED (Green)
2
Power On LED (Red)
4
LCD Display
5
Figure C
Main/Aux. Interface 25-pin D-sub Male Connector
1
Lonworks 9-pin Male Connector
2
Lonworks 9-pin Female Connector
3
Available Models:
Optical Model
0 = Standard
5 = Oscillating Mirror
Decoder Model
10 = Master/Slave
11 = Profibus
12 = Ethernet
15 = Devicenet
DS6300 - 10X - 0Y
Y
Technical Features:
ELECTRICAL FEATURES OPTICAL FEATURES
Supply Voltage
15 - 30 Vdc
Light Receiver
Avalanche photodiode
Wavelength
630 to 680 nm
Power
Consumption
15 W typical
20 W Max. (including startup current)
Main (isolated) Baud Rate
Safety Class
Class 2-EN 60825-1;
Class II-CDRH
RS232
RS485 full-duplex
Laser Control
Security system to turn laser
off in case of motor slow down
RS485 half-duplex
1200 to 115200
READING FEATURES
20 mA C.L. (INT-30
with C-BOX 100 only)
19200
Scan Rate
600-1200 scans/s
Auxiliary
RS232 1200 to 11520
Other
Communication
Interfaces
Lonworks 1,25 Mb/s
Inputs
Max. Resolution
Max. Read. Distance
Max. Read. Width
Max. Depth of Field
(see reading diagram)
USER INTERFACE
Ext. Trigger 1,
3 aux. digital
inputs
(optocoupled NPN or PNP)
LCD Display
2 lines by 16 characters LCD
Outputs Keypad
3 keys
LED Indicators 3 software
programmable
digital outputs
(optocoupled)
Power ON (red color)
Phase ON (yellow color)
TX Data (green color)
1
2
3
4
5
2
1
3
1
