Symbologies Enter/Exit Programming Mode

Product Reference Guide

107

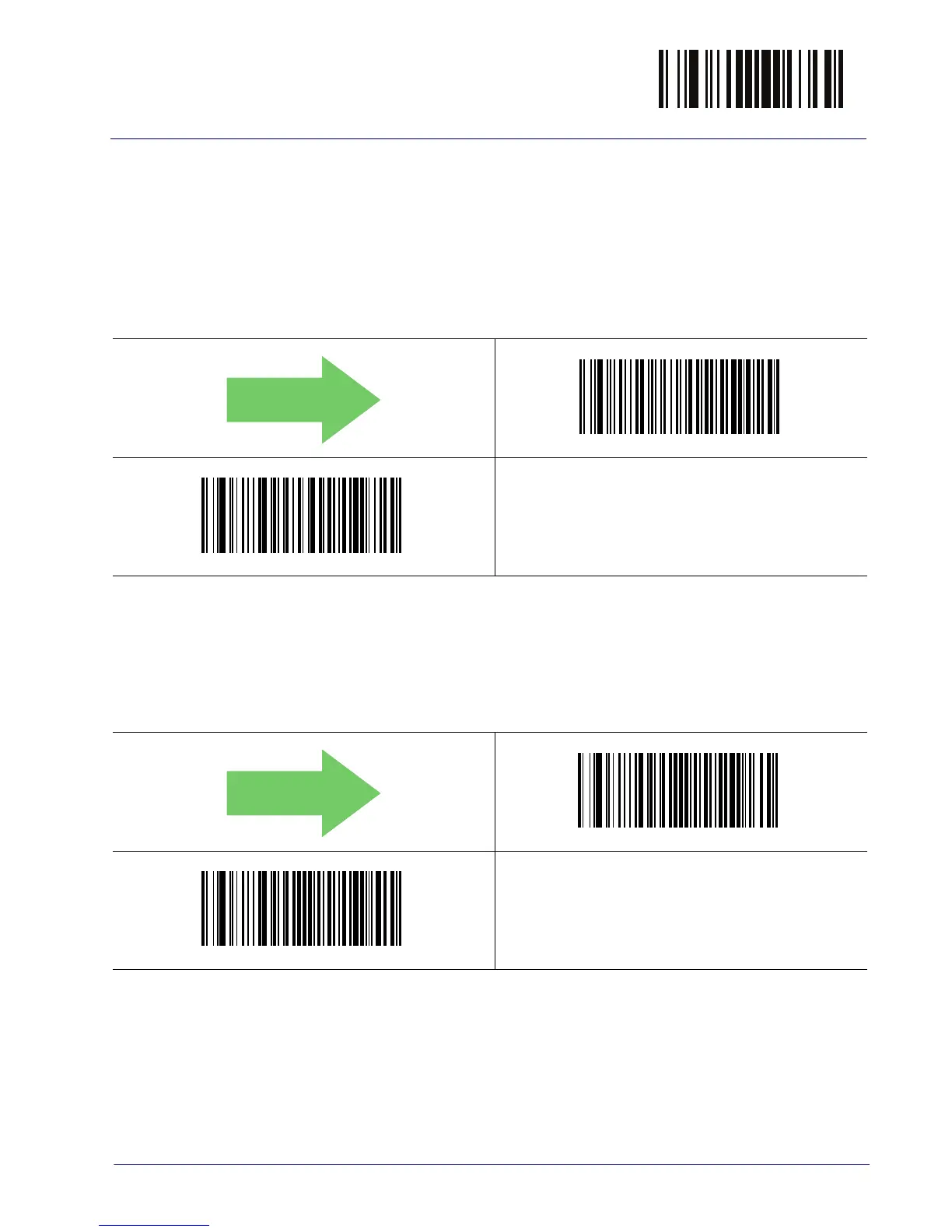

GS1 DataBar™ Expanded

The following options apply to the GS1 DataBar Expanded (formerly RSS

Expanded) symbology.

GS1 DataBar Expanded Enable/Disable

When disabled, the scanner will not read GS1 DataBar Expanded bar codes.

DEFAULT

GS1 DataBar Expanded = Disable

GS1 DataBar Expanded = Enable

GS1 DataBar Expanded GS1-128 Emulation

When enabled, GS1 DataBar Expanded bar codes will be translated to the GS1-

128 label data format.

DEFAULT

GS1 DataBar Expanded GS1-128 Emulation = Disable

GS1 DataBar Expanded GS1-128 Emulation = Enable

$CXBEN00

$CXBEN01

$CXBU800

$CXBU801
