Reading Parameters Enter/Exit Programming Mode

Product Reference Guide

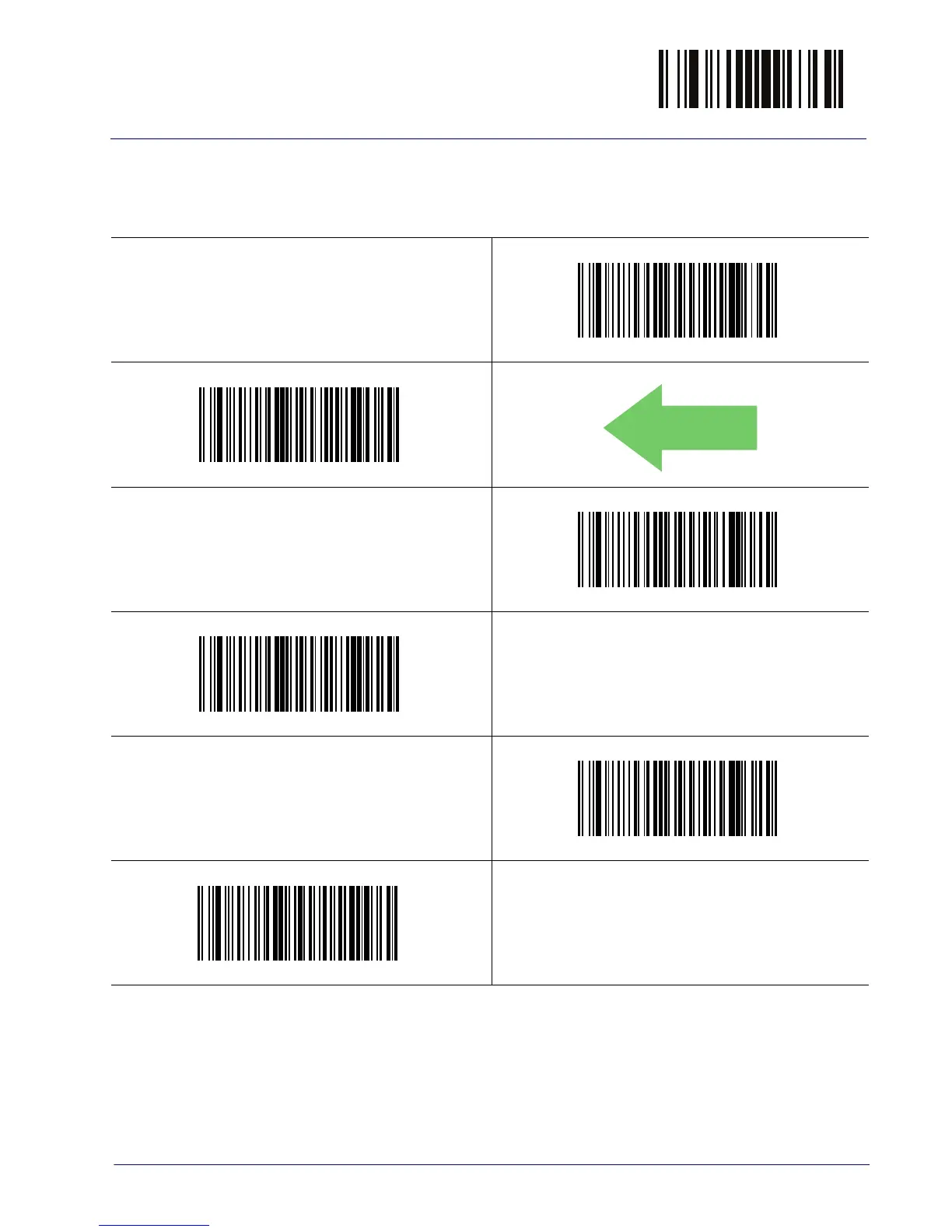

Good Read Beep Length

Specifies the duration of a good read beep.

$CBPLE06

Good Read Beep Length = 60 msec

$CBPLE08

Good Read Beep Length = 80 msec

$CBPLE0A

Good Read Beep Length = 100 msec

$CBPLE0C

Good Read Beep Length = 120 msec

$CBPLE0E

Good Read Beep Length = 140 msec

$CBPLE10

Good Read Beep Length = 160 msec

DEFAULT

Default Chapter3
- Table of Contents3
Introduction11
- About the Scanner11
  - Using the Heron Reader11
- About this Manual12
  - Overview12
  - Manual Conventions13
- Technical Support13
Setup15
- Unpacking15
- Setting up the Scanner15
- Interface Selection21
  - Configuring the Interface21
- Customizing Configuration Settings24
Configuration Using Bar Codes27
- Configuration Parameters27
- Global Interface Features29
  - Host Commands - Obey/Ignore29
  - USB Suspend Mode30
- Only Interface31
- RS-232 Standard Factory Settings31
- Baud Rate31
- Stop Bits32
- Parity33
- Handshaking Control34
- Rs-232/Usb-Com Interfaces35
- Standard Factory Settings35
- Intercharacter Delay36
- Beep on ASCII BEL37
  - Beep O Nascii Bel37
- Beep on Not on File37
  - Beep O N Not on File37
- ACK NAK Options38
  - ACK Character39
  - NAK Character39
  - ACK NAK Timeout Value40
  - ACK NAK Retry Count41
  - ACK NAK Error Handling42
- Indicate Transmission Failure43
- Disable Character43
- Enable Character44
- Keyboard Interface45
- Country Mode46
- Caps Lock State49
- Numlock49
Keyboard Numeric Keypad50
Keyboard Send Control Characters51
Wedge Quiet Interval52
Intercharacter Delay53
Intercode Delay54
USB Keyboard Speed55
Usb-Oem Interface57
Introduction57
Standard Factory Settings57
USB-OEM Device Usage58
USB-OEM Interface Options58
Data Format59
Global Prefix/Suffix60
- Global Prefix /Suffix60
Global AIM ID61
Gs1-128 Aim ID61
Label ID62
- Label ID: Pre-Loaded Sets62
- ID Starting62
- Label ID: Set Individually Per Symbology63
- Label ID Control63
- Label ID Symbology Selection64
Case Conversion70
Character Conversion70
Reading Parameters71
Double Read Timeout72
Label Gone Timeout74
LED and Speaker Indicators75
- Power on Alert75
Audio Jingles75
- Audio Jingle Enable76
- Select Audio Jingle for Power-Up Event77
- Select Audio Jingle for Good Read Event78
- Select Audio Jingle for Enter Stand Mode79
- Select Audio Jingle for Exit Stand Mode80
- Select Audio Jingle for Transmit Error Sound81
- Good Read: When to Indicate82
- Good Read Beep Type83
- Good Read Beep Frequency83
- Good Read Speaker Volume84
- Good Read Beep Length85
RGB LED Settings86
- Enable/Disable RGB LED86
- Good Read LED Color87
- RGB Good Read Raising Time87
- RGB Good Read Falling Time88
- RGB Good Read Holding Time88
- RGB Auto Delay89
Scanning Features90
- Scan Mode90
- Stand Mode Triggered Timeout91
- Scanning Active Time92
- Stand Mode Flash93
- Flash on Time93
- Flash off Time94
- Stand Mode Sensitivity94
Symbologies95
Introduction95
Standard Factory Settings for Symbologies95
Disable All Symbologies96
Coupon Control96
Upc-A97
- UPC-A Enable/Disable97
- UPC-A Check Character Transmission97
- Upc-E100
- Ean 13103
- Ean 8106
- UPC/EAN Global Settings108
- Add-Ons111
- GS1 Databar ™ Omnidirectional115
- GS1 Databar™ Expanded117
- GS1 Databar™ Limited121
- Code 39123
- Code 32 (Italian Pharmaceutical)135
  - Code 32 Enable/Disable135
  - Product Reference Guide135
Code 39 CIP (French Pharmaceutical)137
- Code 39 CIP Enable/Disable137
Code 128137
- Code 128 Enable/Disable137
- Expand Code 128 to Code 39138
- Code 128 Check Character Transmission138
- Code 128 Function Character Transmission139
- Code 128 Sub-Code Change Transmission139
- Code 128 Quiet Zones140
- Code 128 Minimum Reads141
- Code 128 Decoding Level142
- Code 128 Length Control143
- Code 128 Set Length 1144
- Code 128 Set Length 2145
- Code 128 Stitching145
Gs1-128146
- GS1-128 Enable146
Interleaved 2 of 5 (I 2 of 5)147
- I 2 of 5 Enable/Disable147
- I 2 of 5 Check Character Calculation148
- I 2 of 5 Check Character Transmission149
- I 2 of 5 Minimum Reads150
- I 2 of 5 Decoding Level151
- I 2 of 5 Length Control152
- I 2 of 5 Set Length 1153
- I 2 of 5 Set Length 2154
- I 2 of 5 Zero Pattern154
Interleaved 2 of 5 CIP HR155
- Interleaved 2 of 5 CIP HR Enable/Disable155
Datalogic 2 of 5156
- Datalogic 2 of 5 Enable/Disable156
- Datalogic 2 of 5 Check Character Calculation156
- Datalogic 2 of 5 Check Character Transmission157
- Datalogic 2 of 5 Minimum Reads157
- Datalogic 2 of 5 Decoding Level158
- Datalogic 2 of 5 Length Control158
- Datalogic 2 of 5 Set Length 1159
- Datalogic 2 of 5 Set Length 2160
- Datalogic 2 of 5 Interdigit Ratio161
Codabar163
- Codabar Enable/Disable163
- Codabar Check Character Calculation163
- Codabar Check Character Transmission164
- Codabar Start/Stop Character Transmission164
- Codabar Start/Stop Character Set165
- Codabar Start/Stop Character Match165
- Codabar Quiet Zones166
- Codabar Minimum Reads167
- Codabar Decoding Level168
- Codabar Length Control169
- Codabar Set Length 1170
- Codabar Set Length 2171
- Codabar Interdigit Ratio172
ABC Codabar174
- ABC Codabar Enable/Disable174
- ABC Codabar Concatenation Mode174
- ABC Codabar Dynamic Concatenation Timeout175
- ABC Codabar Force Concatenation175
Code 11176
- Code 11 Enable/Disable176
- Code 11 Check Character Calculation177
- Code 11 Check Character Transmission177
- Code 11 Minimum Reads178
- Code 11 Length Control179
- Code 11 Set Length 1179
- Code 11 Set Length 2180
- Code 11 Interdigit Ratio181
- Code 11 Decoding Level183
- Standard 2 of 5184
  - Standard 2 of 5 Enable/Disable184
  - Standard 2 of 5 Check Character Calculation184
  - Standard 2 of 5 Check Character Transmission185
  - Standard 2 of 5 Minimum Reads185
  - Standard 2 of 5 Decoding Level186
  - Standard 2 of 5 Length Control186
  - Standard 2 of 5 Set Length 1187
  - Standard 2 of 5 Set Length 2188
- Industrial 2 of 5189
  - Industrial 2 of 5 Enable/Disable189
  - Industrial 2 of 5 Check Character Calculation189
  - Industrial 2 of 5 Check Character Transmission190
  - Industrial 2 of 5 Length Control190
  - Industrial 2 of 5 Set Length 1191
  - Industrial 2 of 5 Set Length 2192
  - Industrial 2 of 5 Minimum Reads193
- Iata194
  - IATA Enable/Disable194
  - IATA Check Character Transmission194
- Isbt 128195
  - ISBT 128 Concatenation195
  - ISBT 128 Concatenation Mode195
  - ISBT 128 Dynamic Concatenation Timeout196
  - ISBT 128 Force Concatenation197
  - ISBT 128 Advanced Concatenation Options197
- Msi198
  - MSI Enable/Disable198
  - MSI Check Character Calculation198
  - MSI Check Character Transmission199
  - MSI Length Control199
  - MSI Set Length 1200
  - MSI Set Length 2201
  - MSI Minimum Reads202
  - MSI Decoding Level203
- Code 93204
  - Code 93 Enable/Disable204
  - Code 93 Check Character Calculation204
  - Code 93 Check Character Transmission205
  - Code 93 Length Control205
  - Code 93 Set Length 1207
  - Code 93 Set Length 2208
  - Code 93 Minimum Reads209
  - Code 93 Decoding Level210
  - Code 93 Quiet Zones211
- Codablock F212
  - Codablock F Enable/Disable212
  - Codablock F EAN Enable/Disable212
  - Codablock F AIM Check213
  - Codablock F Length Control213
  - Codablock F Set Length 1214
  - Codablock F Set Length 2215
- Code 4216
  - Code 4 Enable/Disable216
  - Code 4 Check Character Transmission216
  - Code 4 Hex to Decimal Conversion217
- Code 5217
  - Code 5 Enable/Disable217
  - Code 5 Check Character Transmission218
  - Code 5 Hex to Decimal Conversion218
- Code 4 and Code 5 Common Configuration Items219
  - Code 4 and 5 Decoding Level219
  - Code 4 and Code 5 Minimum Reads220
- Follett 2 of 5221
  - Follett 2 of 5 Enable/Disable221
- Bc412221
  - BC412 Enable/Disable221
  - BC412 Check Character Calculation222
  - BC412 Minimum Reads222
  - BC412 Decoding Level223
  - BC412 Length Control224
  - BC412 Set Length 1224
  - BC412 Set Length 2225
References227
- Parameters228
  - Only228
  - RS-232/USB COM Parameters229
- Keyboard Interface236
- Data Format239
- Reading Parameters247
  - Label Gone Timeout247
  - RGB LED Features248
- Scanning Features251
- Symbologies255
  - Decoding Levels255
  - Set Length255
Technical Specifications259
- LED and Beeper Indications261
  - Programming Mode262
- Troubleshooting262
- Error Codes263
- Standard Cable Pinouts264
- Stand Dimensions265
- Stand Base Plate Template266
Standard Defaults267
- Default Exceptions278
Sample Bar Codes281
- 1D Bar Codes281
- GS1 Databar (RSS)283
  - GS1 Databar-14283
Keypad285
Scancode Tables289
- Control Character Emulation289
  - Single Press and Release Keys289
- Interface Type PC at PS/2 or USB-Keyboard290
- Interface Type PC at PS/2 Alt Mode or USB-Keyboard Alt Mode292
- Microsoft Windows Codepage 1252294
Index295
- Ascii Chart297
