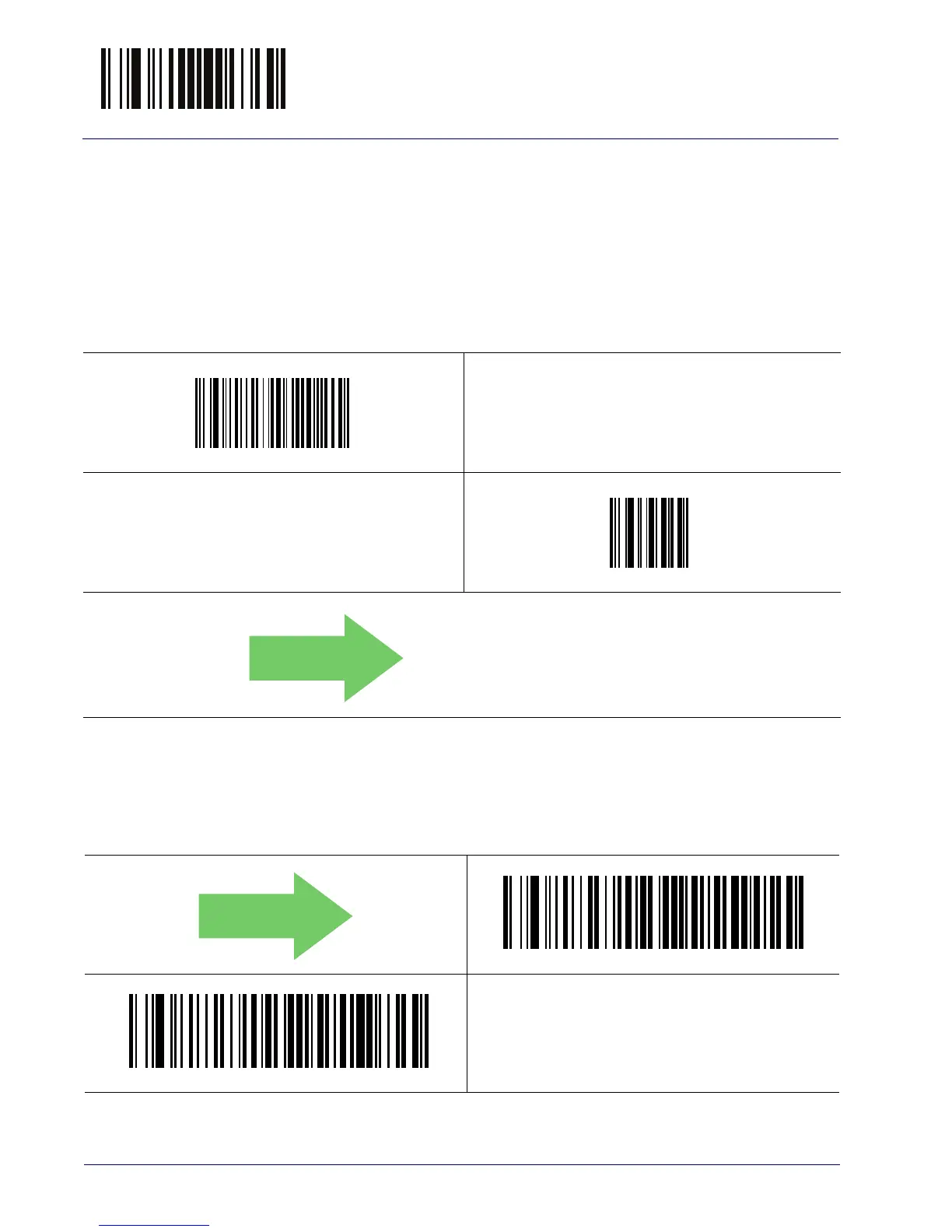

Enter/Exit Programming Mode Interleaved 2 of 5 (I 2 of 5)
144 Heron™ HD3130
I 2 of 5 Set Length 2
This feature specifies one of the bar code lengths for I 2 of 5 Length Control on
page 142. Length 2 is the maximum label length if in Variable Length on page
148 Mode, or the second fixed length
if in Fixed Length on page 148 Mode. The
length includes the bar code’s check and data ch
aracters.
The length can be set from 2 to 50 characters. A setting of 0 specifies to ignore
this length (only one fixed length). See "Set Length 2" on page 247 for more
detailed programming instructions.
Select I 2 of 5 Length 2 Setting
To configure this feature, scan the ENTER/EXIT bar code
above, then the bar code at left followed by digits from
the Alphanumeric characters in
Appendix D, Key-
pad
representing your desired character(s). End by
scanning the ENTER/EXIT bar code again.
Make a mistake? Scan the CANCEL bar code to abort and
not save t
he entry string. You can then start again at the
beginning.
CANCEL
DEFAULT
50 = Length 2 is 50 Characters
I 2 of 5 Zero Pattern
Enables/disables ZERO-Digit decoding. This character does not represent any
cipher. It allows encoding of an odd number of ciphers with Interleaved 2 of 5.
It must be enabled to decode Code 2 of 5 CIP/HR.
DEFAULT
I 2 of 5 Zero Pattern = Disable
I 2 of 5 Zero Pattern = Enable
$CI2L2
~
$CI2ZP00
$CI2ZP01
To Next Page
