Enter/Exit Programming Mode Codabar

154 Heron™ HD3130

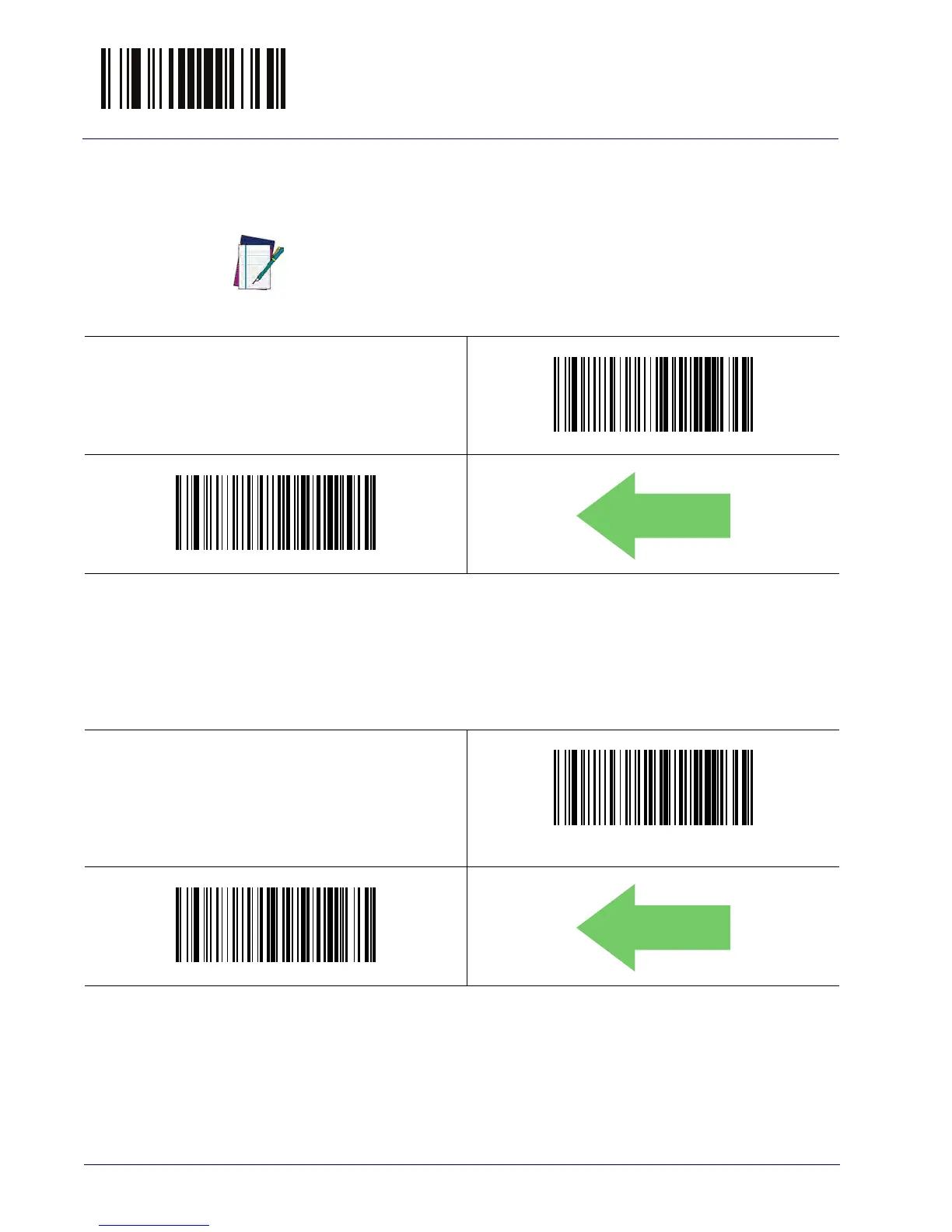

Codabar Check Character Transmission

Enable this option to transmit the check character along with Codabar bar code

data.

NOTE

Codabar Check Character Transmission = Don’t Send

Codabar Check Character Transmission = Send

DEFAULT

This feature is valid only when Codabar Check Character Calculation is

enabled.

Codabar Start/Stop Character Transmission

Enable this option to enable/disable transmission of Codabar start and stop

characters

Codabar Start/Stop Character Transmission = Don’t Trans-

mit

Codabar Start/Stop Character Transmission = Transmit

DEFAULT

$CCBCT00

$CCBCT01

$CCBSS00

$CCBSS01
