8 Magellan
TM
8300/8400
Adaptive Scale Platter Option
Some Platters have been shipped with installed spacers on their undersides
at all four corners. These specially-configured Platters are provided for
customers wishing to add an adaptive scale to their unit at a later date.
Until such time as the adaptive scale is installed, the four spacers should be
left in place to ensure that the Platter rests evenly at its correct height
when positioned on the scanner.
To remove the spacers, loosen and remove the single screw for each as
shown below.

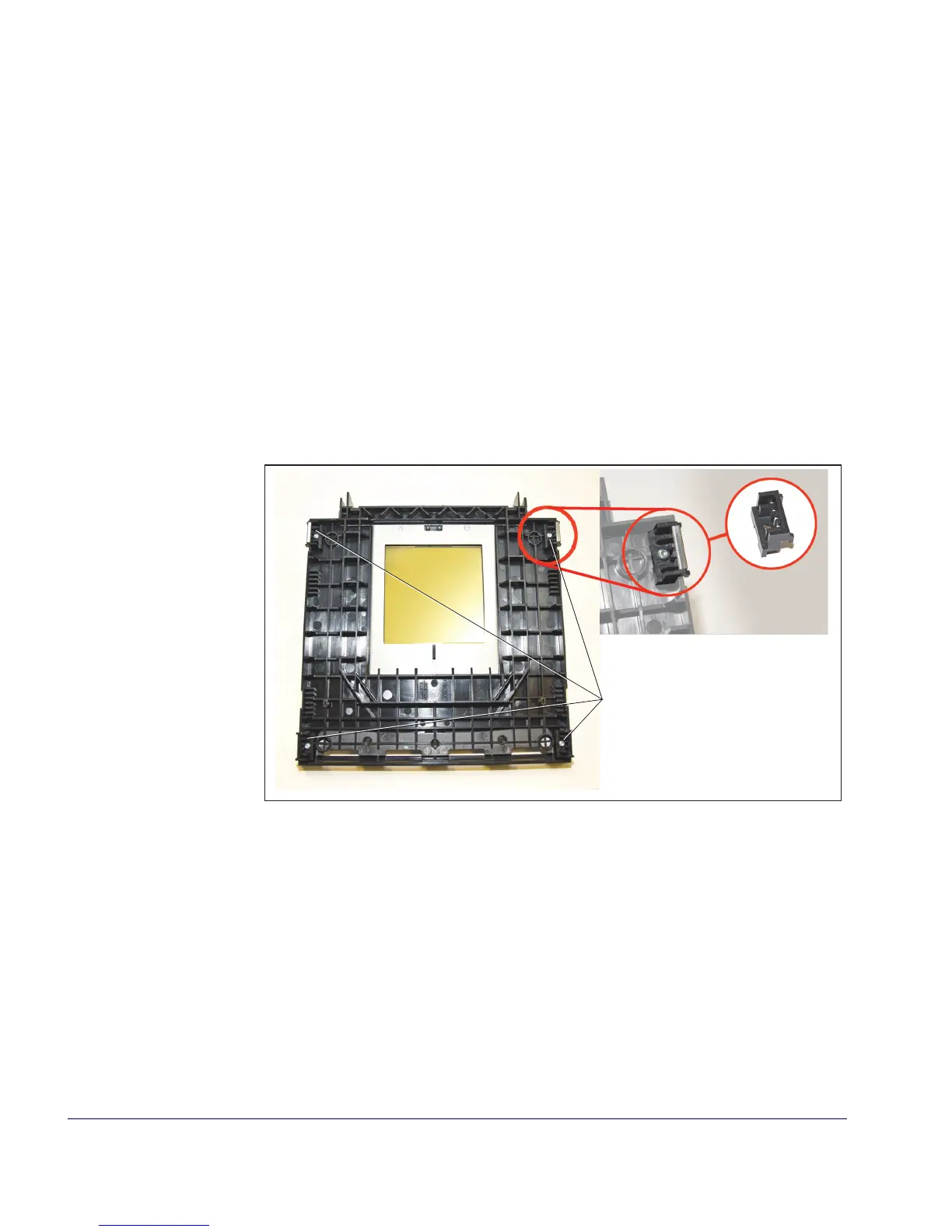

Figure 5. Removing the Platter Adapter Mounts
