Datalogic Magellan 8500Xt Quick Reference Guide

Quick Reference Guide 3

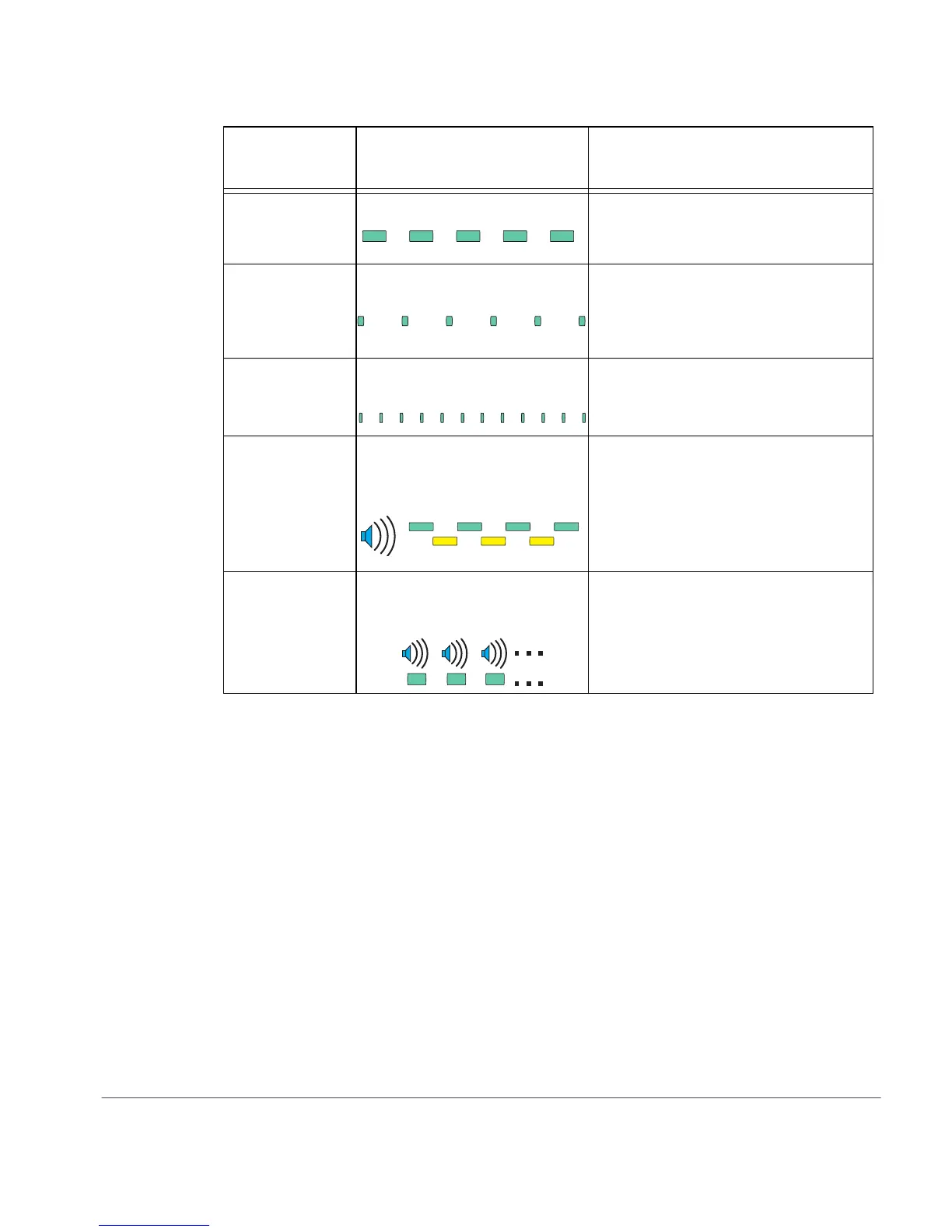

Program Mode
Indication
Green LED - Continuous flashing
Indicates the scanner is in Label Program-
ming Mode. Cycle power to exit Program-
ming Mode.
Sleep Mode Indi-
cation
Green LED flashes slowly.
The scanner motor and/or laser have auto-
matically switched off and the unit has
entered Sleep Mode due to extended inac-
tivity.
Host Disabled
Scanner (Green) LED 1-second
off, 1/10-second on
Host has disabled scanning.
Field Replaceable
Unit (FRU) Warn-
ing (Error Mode)
Audible low tone 1 second.
Alternating Green/Yellow LED
flashes continuously
b
.
Serves notice that a fatal FRU failure has
been detected. If a low tone is heard, but
continuous flashing is not observed, the
scanner can still function in a limited capac-
ity. Call systems support for service in either
case.
FRU Indication
Green LED flashes a coded
sequence in concert with the
speaker.
Occurs ONLY upon Volume/Tone button
push following a FRU warning. Enables ser-
vice technicians to identify FRU failures.
Cycle power to exit Scanner Diagnostics
Mode.
a. Certain functions of the Green and Yellow LEDs are selectable to be enabled or dis-
abled. Your scanner may not be programmed to display all indications.
b. For FRU error 9, the Deactivator LED (tri-color) is off.
LED
INDICATION
DURATION COMMENT

Datalogic Magellan 8500Xt Specifications

General

Type	Built-in bar code reader
Sensor type	-
Read rate (max)	6400 reads/s
Yaw reading angle	0 - 360 °
Linear (1D) barcodes supported	GS1-128 (UCC/EAN-128)
2D (matrix & stacked) barcodes supported	Not supported
Standard interfaces	RS-232
Connectivity technology	Wired
Input voltage	100 - 250 V
Input frequency	50 Hz
Power source type	AC
Power consumption (typical)	9 W
Product color	Grey, Silver
Sustainability certificates	RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Depth	127 mm
Width	292 mm
Height	178 mm
Weight	- g
