Datalogic Magellan 8500Xt Quick Reference Guide

4 Magellan
TM
8500Xt

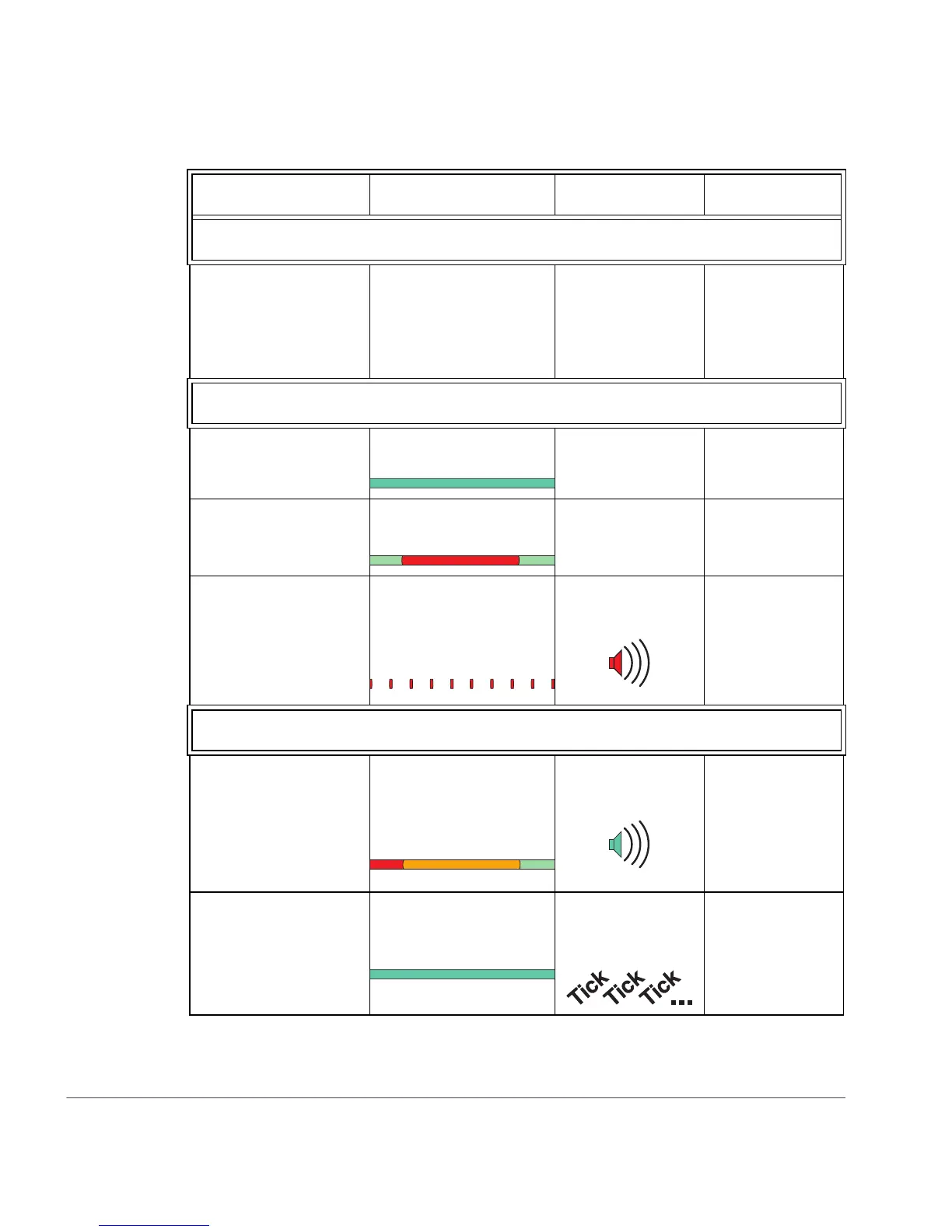

Table 2. EAS Indications
INDICATION LED DURATION EAS BEEPER COMMENT
EAS DEACTIVATION DISABLED
Deactivation Disabled
Deactivation (Tri-color)
LED is off
OFF
Deactivation mode
must be selected
via programming.
Reference the
PRG.
ALL MODES (COUPLED, DECOUPLED, HYBRID or HOST)
Deactivation Ready
Deactivation (Tri-color)
LED is lit steadily Green.
OFF
Deactivation is
ready.
EAS Label Detected
Deactivation (Tri-color)
LED flashes Red.
OFF
An EAS label has
been sensed in the
scan volume.
EAS Error
Deactivation (Tri-color)
LED flashes Red while
FRU Status LED flashes
error code nine (9).
Low frequency beep
(1 second)
EAS system is not
on line.
COUPLED MODE ONLY
Deactivation Indicated
Deactivation (Tri-color)
LED flashes Red, then
Orange, then returns to
Green.
Good read beep fol-
lows deactivation
The EAS antenna
has been trig-
gered ON to deac-
tivate a label
following success-
ful bar code read.
Manual Deactivation in
Progress
Deactivation (Tri-color)
LED is lit steadily Green.
Ticking sound (for
configurable dura-
tion)
The Manual EAS
Deactivation Push
Button was
pressed &
released.

Datalogic Magellan 8500Xt Specifications

General

Type	Built-in bar code reader
Sensor type	-
Read rate (max)	6400 reads/s
Yaw reading angle	0 - 360 °
Linear (1D) barcodes supported	GS1-128 (UCC/EAN-128)
2D (matrix & stacked) barcodes supported	Not supported
Standard interfaces	RS-232
Connectivity technology	Wired
Input voltage	100 - 250 V
Input frequency	50 Hz
Power source type	AC
Power consumption (typical)	9 W
Product color	Grey, Silver
Sustainability certificates	RoHS
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	10 - 40 °C
Operating relative humidity (H-H)	5 - 95 %

Weight and Dimensions

Depth	127 mm
Width	292 mm
Height	178 mm
Weight	- g
